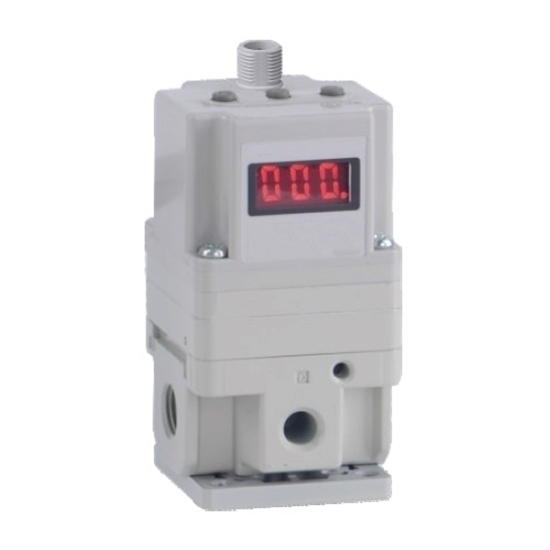

1/4 Inch Electro-Pneumatic Pressure Regulator, -1.3~80 kPa

5 out of 5 based on 1 reviews | Write a review

$353.77

Electro-pneumatic pressure regulator especially for vacuum pressure adjustment. Pressure setting range -1.3~80 kPa (11.6 psi), power supply DC 24V or 12~15V, input signal 4~20mA current or 0~10V voltage, analog/switch output, connection hose diameter 1/4 inch. Vacuum air pressure regulator with electronic digital display, proportional valve, saving cost of various hydraulic valves in pneumatic control system.

Power Supply *
Input Signal *
Output Signal *
Cable Connector *
Connection Thread *
Bracket *

SKU: ATO-PPPR-8014

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Air pressure regulator for vacuum air pressure adjustment. Working pressure range -1.3~80 kPa (max 11.6 psi), rated voltage DC 24V or 12~15V, input signal 4~20mA current or 0~10V voltage, hose port 1/4”. The electronic proportional vacuum pressure regulator is applied in pneumatic system, using analog control replace multistage control. It is saves costs of pressure reducer valve, solenoid valve, hydraulic valve, etc.

Specification

Model		ATO-NITV209
Minimum supply vacuum		Set pressure - 13.3 kPa (+0.0013.3 Mpa)
Maximum supply vacuum		-101 kPa (0.0101 MPa)
Set vacuum range		-1.3~-80 kPa (0.0001.3 to 0.0008 MPa )
Max. Flow		1500L/min
Power supply	Voltage	DC 24V ± 10%, DC 12~15V
	Current consumption	Power supply voltage DC 24V type: 0.12 A or less Power supply voltage DC 12~15V type: 0.18 A or less
Input signal	Current type ^{*Note 1}	DC 4~20mA, DC 0~20mA
	Voltage type	DC 0~5V, DC 0~10V
	Preset input	4 points (Negative common)
Input impedance	Current type	250 Ω or less ^{*Note 4}
	Voltage type	Approx. 6.5 kΩ
	Digital input	Power supply voltage DC 24V type: Approx. 4.7 kΩ. Power supply voltage DC 12V type: Approx. 2.0 kΩ
Output signal (monitor output) ^{*Note 2}	Analog output	DC 1~5V (Output impedance: Approx. 1 kΩ) DC 4~20mA (Sink type) (Output impedance: 250 Ω or less) Output accuracy ± 6% F.S. or less
	Switch output	NPN open collector output: Max. 30V, 80mA PNP open collector output: Max. 80mA
Linearity		± 1% F.S. or less
Hysteresis		0.5% F.S. or less
Repeatability		± 0.5% F.S. or less
Sensitivity		0.2% F.S. or less
Temperature characteristics		± 0.12% F.S./ ℃ or less
Output pressure display ^{*Note 3}	Accuracy	± 2% F.S. ± 1 digit or less
	Minimum unit	kPa: 1
Ambient and ﬂuid temperature		0 to 50℃ (No condensation)
Enclosure		ip65
Port size		1/4 inch

*Note

2-wire type 4 to 20 mA DC is not available. Power supply voltage (DC 24V or DC 12~15V) is required.
Select either analog output or switch output. Further, when switch output is selected, select either NPN output or PNP output. When measuring NITV analog output from 1 to 5 VDC, if the load impedance is less than 100 kΩ, the analog output monitor accuracy of within ±6% (full span) may not be available. The product with the accuracy of within ±6% is supplied upon your request. Output pressure remains unaffected.
Adjustment of numerical values such as the zero/span adjustment or preset input type is set based on the minimum units for output pressure display.
Value for the state with no over current circuit included. If an allowance is provided for an over current circuit, the input impedance varies depending on the input current. This is 350Ω or less for an input current of 20mA DC.

Features

Proportional air pressure regulator adopts electrical proportional method to achieve stepless control of outlet pressure. It can realize remote control and program control.
Compared with hydraulic proportional valves, proportional pressure regulators are small in size, light in weight, compact in structure, light in weight and low in cost.
The control of electro-pneumatic pressure regulator is continuous control, and its characteristic is that the output quantity changes with the change of input quantity (current value or voltage value), and there is a certain proportional relationship between the output and input.
Proportional air pressure regulator has many types, which can be used with various electrical equipment and computers to control various electro-hydraulic systems. High control precision, flexible installation and strong anti-pollution ability.

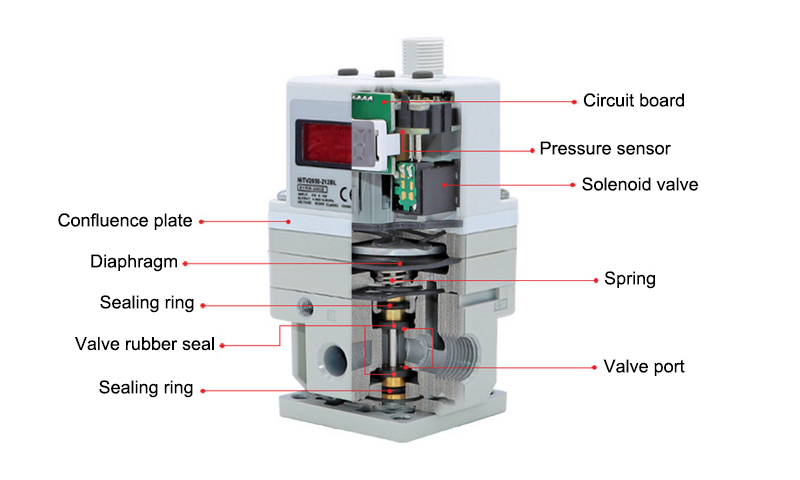

Details

-1.3~80 kPa Air Pressure Regulator Dimension (Unit: mm)

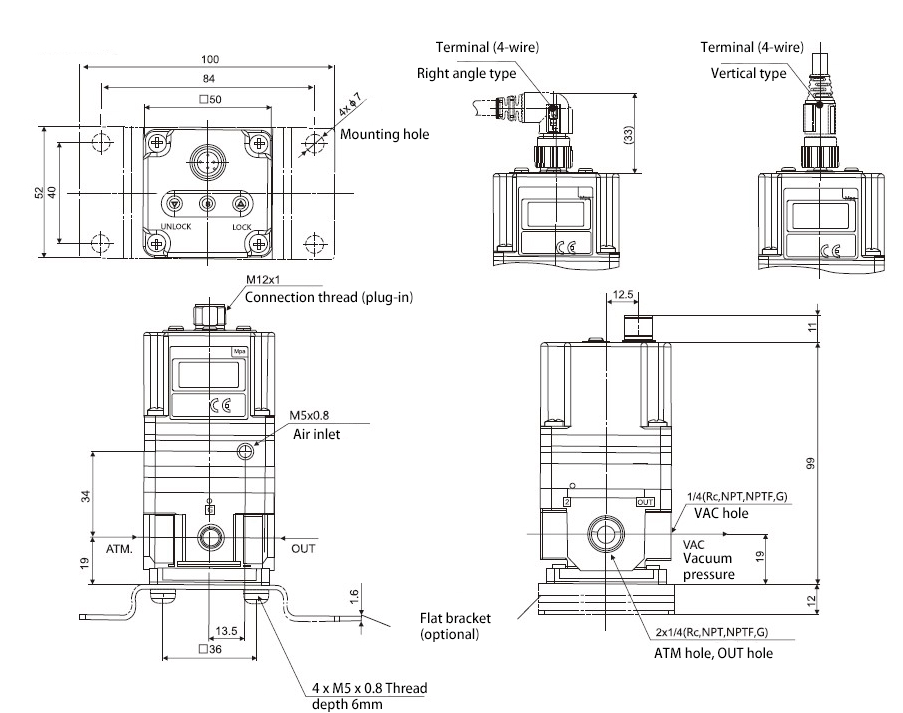

Electro-Pneumatic Pressure Regulator with Flat Bracket*

Dimensions of -1.3~80 kPa 1/4 inch Proportional Pressure Regulator with Flat Bracket

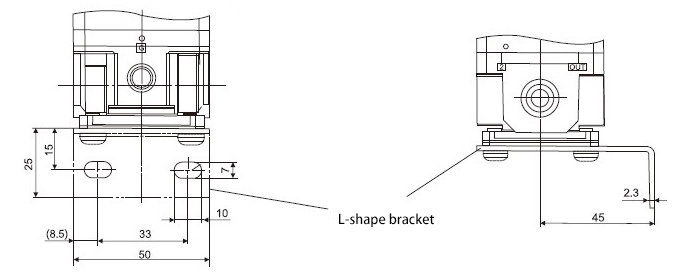

Electro-Pneumatic Pressure Regulator with L-Shape Bracket*

*Note: The bracket is the option.
