8" Pneumatic Wafer Butterfly Valve

Write a review

$1,168.89

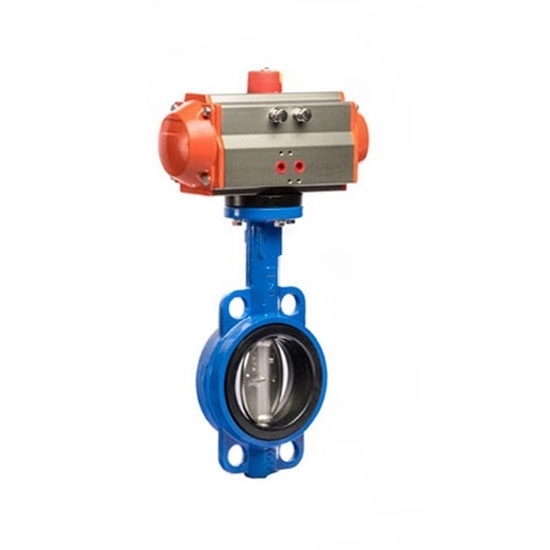

Factory price 8 inch pneumatic actuated butterfly valve consists of a pneumatic actuator and a butterfly valve that comes with a 200mm (DN200) port and high performance disc. Optional wafer type and PVC BF valve. Industrial air operated butterfly valve can work at high temperature below 100 °C, which is a high performance and reliable device for air, liquid and flow control.

Butterfly Valve Type *

SKU: ATO-PBV-200

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

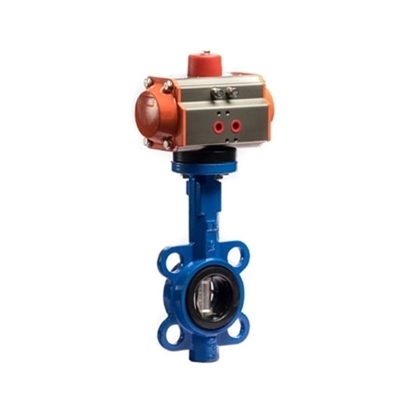

8 inch pneumatic butterfly valve consists of a pneumatic actuator and a cast iron or PVC butterfly valve that comes with a 200mm (DN200) port and high performance disc. Our air actuated butterfly valve can work at high temperature below 100 °C, which is a reliable device for flow control.

Specification

Butterfly Valve	Model	ATO-PBV-200
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Wafer Type	PVC Type
	Port Size	8 inch (DN200, 200mm)
	Body Material	Cast Iron	PVC
	Disc Material	Stainless Steel (SS)	UPVC
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Pneumatic Actuator	Model	ATO-AT125D
	Actuator Type	Double Acting
	Bore Size	125mm
	Air Pressure	0.25 - 0.8MPa, PN16
	Pressure Difference	0 - 1.0MPa
	Air Supply Port	1/4 inch
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

Body dimensions of pneumatic actuated wafer type butterfly valve

DN	L	H1	H2	A	D	D1	N-φd
200	60.5	175	457	349	295	265	4-25

PVC Butterfly Valve Body Dimension (Unit: mm)

Body dimension of pneumatic actuated PVC butterfly valve

JIS		ANSI		DIN		D	D2	D3	H2	H3	W1	W2	d1	D4	S	H	L
D1	n-φe	D1	n-φe	D1	n-φe
240	8-23	241.5	8-23	240	8-18	287	152	169	177	19	70	54	10.5	102	22	360	268

Pneumatic Actuator Dimension (Unit: mm)

Pneumatic actuator dimension

ATO-AT125D

Q	A	B	C	D	E	F	G	H	I
Φ70/Φ102mm	349mm	147mm	67mm	80mm	189mm	159mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	20mm	56.5mm	4mm	4mm	12mm	24mm	16mm	32mm

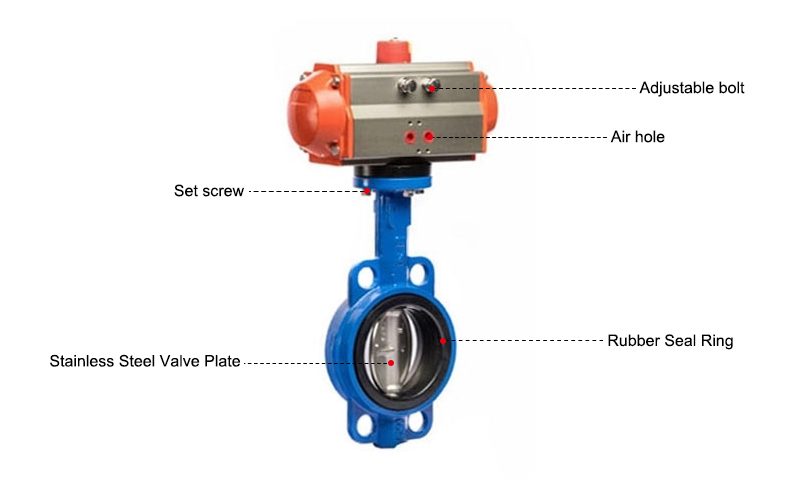

Details

Tips: Difference between pneumatic butterfly valve and hand operated butterfly valve

Manual butterfly valves rely on manpower to switch on and off, and pneumatic butterfly valves rely on air pressure to push. The air path of the pneumatic butterfly valve is equipped with a solenoid valve, which can realize automatic control.
