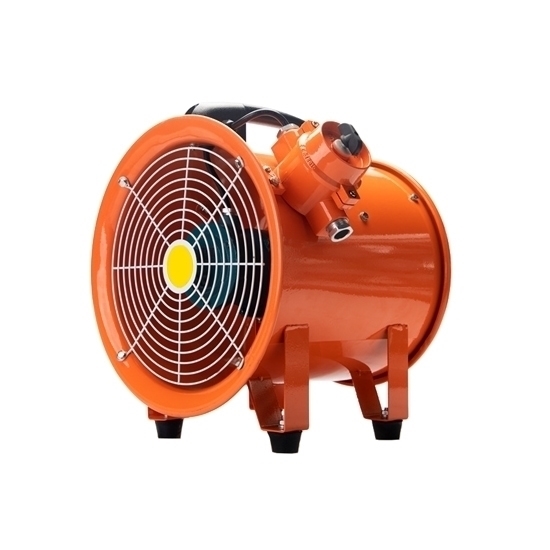

750W Explosion Proof Portable Exhaust Fan

750W explosion proof portable exhaust fan is a specialized device designed to safely remove hazardous gases, fumes, or combustible materials from an area. This portable ventilation fan is constructed using durable materials and engineered with stringent safety measures to prevent the ignition of potentially explosive substances.

Specification

• Model: ATO-BSFT-500
• Axis Power: 750W
• Motor Power: 750W
• Voltage (Optional): 220VAC, 380VAC, 110VAC
• Ventilation Duct: 5m (Default)/ Contact Us for Other Sizes
• Fan Diameter: 500mm (20 inch)
• Impeller Diameter: 490mm (19 inch)
• Air Volume: 6800~10000m3/h
• Static Pressure: 185~200Pa
• Rotating Speed: 1450r/min
• Frequency: 50/60Hz
• Explosion Proof Grade: ExdⅡBT4
• Weight: 33kg

Detail

Tips: Difference between explosion proof and non explosion proof portable exhaust fan

The main difference between an explosion proof and a non explosion proof portable exhaust fan lies in their ability to operate safely in potentially hazardous environments. An explosion-proof exhaust fan is specifically designed to prevent the ignition of flammable gases, vapors, or dust particles present in the surrounding atmosphere. It is constructed using durable materials and features specialized seals and fittings to prevent sparks or hot surfaces from causing an explosion.

In contrast, a non explosion proof portable exhaust fan is not designed to withstand potentially explosive environments. It may lack the necessary safety features and robust construction required for such hazardous conditions. As a result, using a non-explosion-proof fan in an explosive atmosphere can pose a significant risk, as it could potentially ignite the flammable substances and cause an explosion.
