    75 hp (55kW) DC Reactor, Single Phase

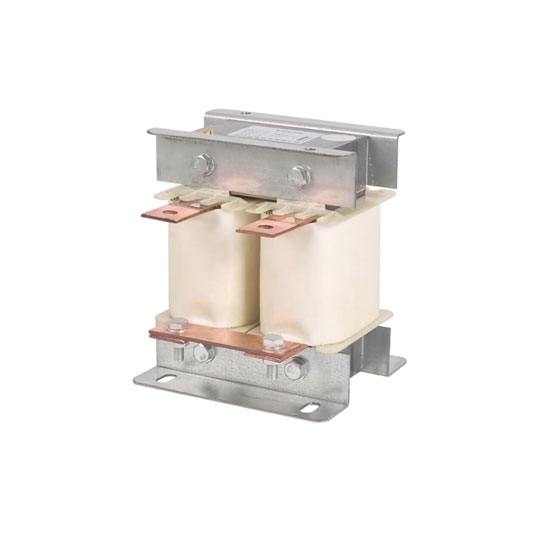

    Picture of 75 hp (55kW) DC Reactor, Single Phase
    Picture of 75 hp (55kW) DC Reactor, Single Phase
    Picture of 75 hp (55kW) DC Reactor, Single Phase
    Picture of 75 hp (55kW) DC Reactor, Single Phase

    75 hp (55kW) DC Reactor, Single Phase

    Write a review
    $421.87
    Single phase DC line reactor at cheap price, voltage 220V-1200V, other output voltage can be customized, DC link reactor can be used for high voltage direct current, has the advantages of high quality and strong corrosion resistance.
    *
    *
    SKU: ATO-DCR-75
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy professional dc line reactor for vfd, affordable price, power 55 kW (75hp), output voltage 220V, 380V or 440V for selection.

    Specification:

    Model ATO-DCL-150
    Phase 1 Phase
    Power Adapter 55 kW (75 hp)
    Recommended VFD Model
    SKU: GK3000-4T0550G (75 hp three phase VFD)
    VFD Voltage Adapter 220V-1200V (Contact us for other voltages)
    Rated Current 150A
    Inductance 0.21mH
    Insulation Grade F.H
    Dimension 165*165*185mm (L*W*H)
    Mounting Dimension 120*90mm
    Electric Strength Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
    Insulation Resistance iron core-winding 1000VDC, Insulation resistance
    ≥100MV
    Noise of Reactor Less than 35dB (measured from 1 meter away in horizon from reactor)
    Degree of Protection IP00
    Degree of Insulation > Class F
    Weight 17kg

    Features
    1. Improve the input current wave caused by capacitor harmonics.
    2. Reduce and prevent rectifier bridge damage and capacitors.
    3. Overheating due to a surge in current.
    4. Improve the power factor and reduce the AC pulse of the DC bus.
    5. Limit transient changes in system voltage.

    Single Phase DC Line Reactor Dimension (unit: mm)
    DC reactor dimension

    Details

    Single Phase DC Reactor Details

    Tips: When does VFD need to add output reactor?

    1.When the length of the connecting wire between the frequency converter and the motor is ≥100 meters.

    2. After using the inverter, when the motor has problems such as howling, overheating, vibration, rapid insulation aging, and frequent insulation damage.

    3. After using the frequency converter, when the bearing of the motor has pitting, cracking and other problems.

    4. After the inverter is powered on, the electrical equipment around the motor cannot work normally.
