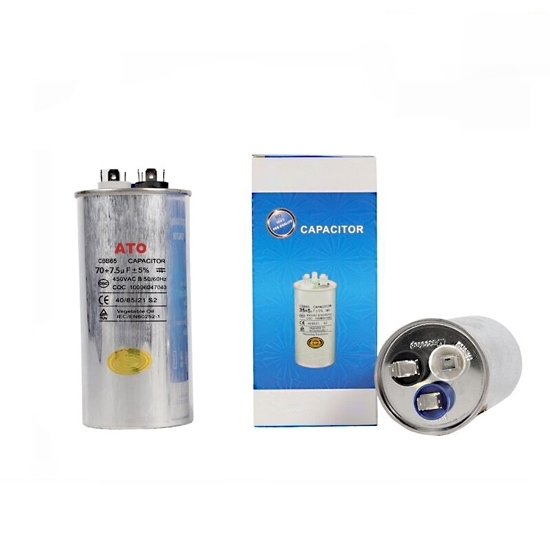

70/7.5 MFD Air Conditioner Capacitor, Dual Run Capacitor

Cheap 70+7.5 mfd air conditioner capacitor is available online. It has dual run capacitor to help in the starting of the compressor and the condenser fan motor. 450V HVAC capacitor is commonly used for air conditioning.

Features and applications

70+7.5 mfd air conditioner capacitor has advantages of low dissipation, high insulation resistance, good self-healing character, anti-striking current, strong over-carrier capacity and steady electric performance, and reliable safety with the inner anti-explosion device, etc. It is applied in air conditioning, refrigerator, and compressor. ATO air conditioner capacitor is helpful for motors starting and running.

Specifications

Model: ATO-CBB65-7075
Ambient Temperature: -40~85℃
Rated Voltage (AC): 450V
Range of Capacitance: 1+1~80+15
Testing Voltage (VAC): T-T: 2Un/2S, T-C: ≥2400VAC/2S
Dissipation Factor: tan δ≤0.002 (100Hz)
Operating Frequency: 50/60Hz
Capacitance Tolerance: ±5% or fulfilled upon request

70/7.5 MFD Air Conditioner Capacitor Dimensions (D: 50mm H: 130mm)

Tips: What does a capacitor do in an air conditioner?

The capacitor is a tiny cylindrical device located in an air conditioner unit. What does an ac capacitor do? The device’s role is to supply and store electrical energy. When you power your air conditioner, the capacitor produces a high-voltage jolt between 400-600 volts and supplies it to the blower motor, fan motor, and compressor.

Once those parts jumpstart, the air conditioner starts blowing cold air inside the house. While the A/C is running, it’s the role of the capacitor to collect and store energy. The device operates the same way as a rechargeable battery.

Every time you turn on your air conditioner, the capacitor for the central air unit supplies a fresh energy blast. One homeowner may have multiple capacitors depending on their air conditioner.
