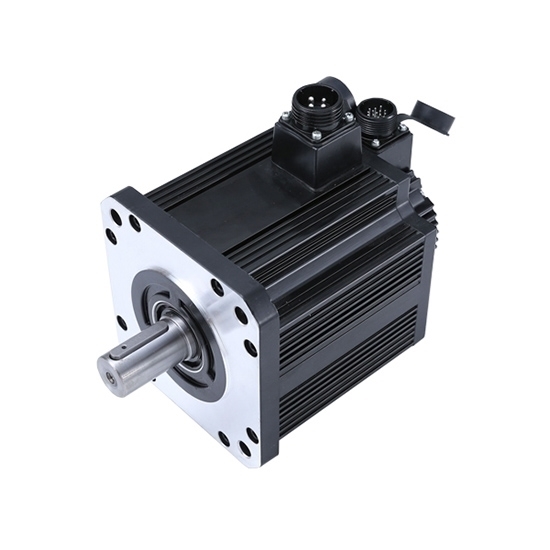

7.5 kW AC Servo Motor, 380V, 48 Nm/96 Nm, 1500 rpm

5 out of 5 based on 4 reviews | Write a review

$1,965.74

Brushless AC servo motor for sale. 10 hp (7.5 kW) power rating, 3 phase 380V AC input voltage, 1500 rpm rated speed, 48 Nm rated torque and peak torque to 96 Nm, 2,500 PPR incremental encoder attached. High torque servo motor, cheap price and manufacturer direct sale.

Motor Encoder Type *
Absolute Encoder *
With Brake *
With Matched Controller *
Rated Voltage *
Motor Cable & Encoder Cable *

SKU: ATO180ST-M48015

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Heavy duty and precision AC servo motor, brushless design, three phase 220V/380V AC voltage, 20 amps, equipped with 2,500 PPR incremental encoder or absolute encoder. 10 hp (7.5 kW) electric servo motor is available in a 180mm square flange size, with brakes and shaft options.

Specification

Basics	Model	ATO180ST-M48015
	Matched Drive Model	ATOMG-1000 (Click it to the product page)
	Square Flange Size	180 mm
	Rated Power	7.5 kW (10 hp)
	Rated Voltage	3-phase 380V AC (Optional: 220V AC)
	Rated Current	20 A
	Rated Speed	1500 rpm
	Rated Torque	48 Nm
	Peak Torque	96 Nm
	Weight	50 Kg
	Length	346 mm
	Speed and Torque Characteristic Curve	Download PDF
Technical Parameters	Voltage Constant	156 V/ 1000r/ min
	Torque Coefficient	2.4 Nm/ A
	Torque Inertia	16.72 x 10^-3 Kg.M²
	Line-Line Resistance	0.273 Ω
	Line-Line Inductance	2.14 mH
	Electrical Time-Constant	7.8 ms
	Encoder Line Number	2500 PPR
	Absolute Encoder	17 bit, 23 bit (Tamagawa brand)
	Insulation Class	Class F
	Safety Class	IP65
Environment	Temperature	-20℃ ~ +40℃
Environment	Humidity	<90%RH, (no dewing)

Dimension

LA (without brake): 346mm, LA (with brake): 436mm

Details

Winding and Encoder Connection

1. For servo motor winding

motor Winding Plug	Motor Line	U	V	W	PE
motor Winding Plug	Socket Number	2	3	4	1

2. For incremental encoder

Incremental Encoder Socket (15 Pin)	Signal Definition	5V	0V	B	Z-	U	Z	U-	A	V	W	V-	A-	B-	W-	PE
Incremental Encoder Socket (15 Pin)	Socket Number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1

3. For absolute encoder

Absolute Encoder Socket (7 Pin)	Signal Definition	E-	E+	SD-	0V	SD+	5V	PE
Absolute Encoder Socket (7 Pin)	Socket Number	2	3	4	5	6	7	1

This video briefly shows the application of the ATO servo system in a linear slide.

ATO servo motor has 40mm to 180mm different square flange size, power rating from 50W to 7.5kW and speed range from 1000 rpm to 3000 rpm. so you can select the best one for your applications. In this video, ATO will show you servo motor linear actuator system for robotics.

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

How to unlock the servo drive timing lock?

In this video, the process of unlocking the servo drive timing lock is demonstrated.

How to Connect the Servo Motor Controller and Set the JOG Mode?

The video shows the basic connection of the ATO servo motor kit and how to initialize the servo drive and how to set the JOG mode.

How to Use the Position Control Method of the Servo Motor(through PLC Pulse Control)?

The video introduces the connection and control (position control method) between PLC and ATO servo motor system.

Existing reviews of 7.5 kW AC Servo Motor, 380V, 48 Nm/96 Nm, 1500 rpm

Can you sell a more powerful motor

Can you make a 15 kw servo motor.

From: Randy | Date: 13/04/2024

Was this review helpful? Yes No (0/0)

ATO Responded

ATO general servo motors are not currently available in this size, but spindle servo motors are. SKU: ATO-SERVO-2095

Good 7.5KW AC servo motor

Can you provide AC servo motor of 7.5kW capacity and its input voltage is 3 phase, 220V not 380V?

From: Magry | Date: 03/06/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, we can use with the same price and specs.

Could you please tell me the following information for your 7.5kW AC servomotor?

Could you please tell me the following information for your 7.5kW AC servomotor (SKU: ATO-SERVO-180S7500):
1. For the motor, is the back-EMF sinusoidal or trapezoidal?
2. For the motor, does the price include connectors or cables?
3. For the incremental encoder, what is the current consumption?
4. For the incremental encoder, what is the voltage level for the pulse signals, e.g. RS-422?

From: Douglas Carter | Date: 13/10/2020

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, sure:
1. The back-EMF is sinusoidal.
2. The price includes connectors and cables.
3. The current consumption is ≤200mA
4. The pulse signals is TTL, the high level of pulse signal ≥ 2.4V ,and the low level ≤ 0.5V.

What is the least shaft diameter you can provide for the 7.5kW Servo motor?

What is the least shaft diameter you can provide for the 7.5kW Servo motor? And can I connect to pinion coupling?

From: Gabrielle | Date: 13/01/2019

Was this review helpful? Yes No (0/0)

ATO Responded

Dear friend, the least shaft diameter of 7.5kW Servo motor is 35mm, and sure you can connect to shaft coupling of 35mm.
