7.5 hp VFD, 1-Phase 220V to 3-Phase 380V VFD

5 out of 5 based on 5 reviews | Write a review

$726.89

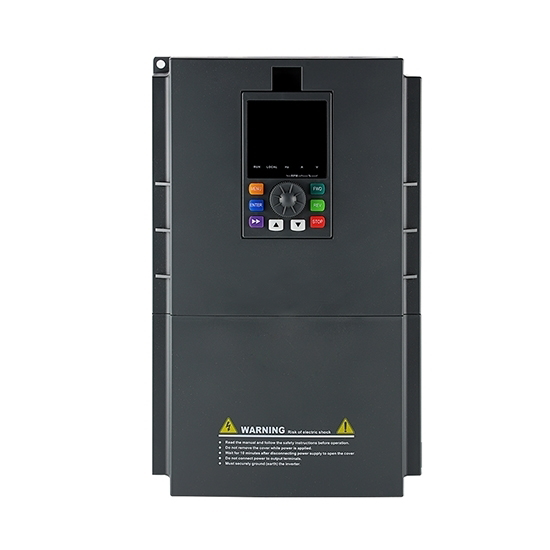

Customizable 7.5 hp (5.5 kW) single phase VFD, single phase 220V to three phase 380V variable frequency drive for AC motor speed control. Features 13 amps, RS485 communication interface, IP20 enclosure rating.

Input Voltage (Single phase) *
Output Voltage (Three phase) *
Output Voltage (Three phase) *

SKU: GK3000-CS0055G

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
User Manual
Relative Video

Cheap 7.5 hp single phase VFD, converts 1 phase 220-240v 50Hz/60Hz input to 3 phase 380v/ 400v/ 415v output, running three phase motor on single phase household power supply.

Specification:

Basics	Model	GK3000-CS0055G
	Capacity	7.5 hp (5.5 kW)
	Shipping weight	8 kg
	Dimension	330200200 mm
	Installation size	316*188 mm
I/O Feature	Rated current	13 A
	Input voltage	1 phase 220~240V AC
	Input frequency	50Hz/ 60Hz
	Output voltage (Optional)	3 phase AC 380V/ 400V/ 415V/ 440V/ 460V (Note: 440V, 460V output voltage only for the 1-phase 240V input VFD)
	Output frequency	0Hz~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: ATO VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

Tips: Variable frequency drive installation environment

Electrical use conditions:

To prevent electromagnetic wave interference. VFD (Frequency inverter) in the work due to rectification and frequency conversion, around a lot of interference electromagnetic waves, these high-frequency electromagnetic waves on the nearby instruments, instruments have a certain interference. Therefore, the cabinet instrumentation and electronic systems should be selected metal shell, shielding the VFD to instrumentation interference. All components should be reliably grounded, in addition to the electrical components, instruments and instruments between the connection should be selected shielded control cable, and the shielding layer should be grounded. If electromagnetic interference is not handled well, it will often make the whole system unable to work and lead to control unit malfunction or damage.

Ambient temperature:

The ambient temperature of the variable frequency drive refers to the temperature near the cross-section of the VFD. Since the VFD is mainly composed of high-power electronic equipment that is highly susceptible to temperature, the life and reliability of the VFD depends largely on the temperature, which is generally -10℃ to +40℃. In addition, need to consider the VFD's own heat dissipation and the possible extremes of the surrounding environment, for the temperature generally requires a certain amount of margin.

PDF:

GK3000 Series VFD User Manual

Quick Setup Manual & Application

VFD Troubleshooting Guide

This video is about how to use buttons to run single-phase VFD of three-phase motors.

The video shows the parameter setting methods for the V/F control mode and vector control mode of single-phase to three-phase VFD.

This video provides insights into the wiring process for converting single-phase to three-phase VFD, specifically from 220V to 380V.

Existing reviews of 7.5 hp VFD, 1-Phase 220V to 3-Phase 380V VFD

7.5 hp VFD

Is this VFD able to power a PMSM spindle with an encoder up to 800Hz? There will be about 20' of cable between the spindle and the VFD when mounted to the gantry on my cnc. Thank you.

From: calebs | Date: 28/11/2023
