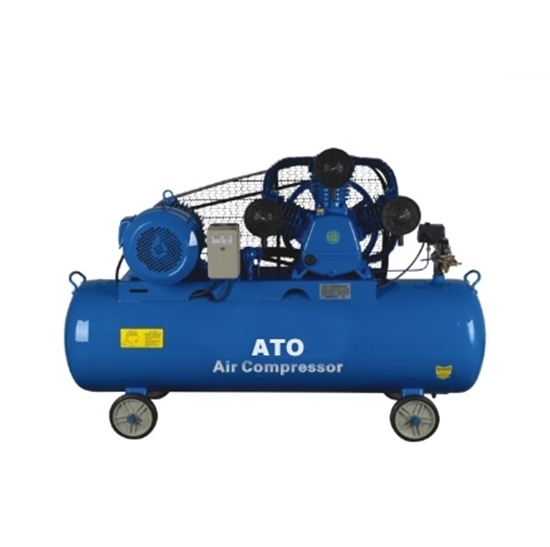

    7.5 hp 32 Gal. 115 PSI Belt Driven Air Compressor

    $2,269.23
    This oilless belt drive air compressor has three three-cylinder pump, 7.5 horsepower (5.5 kW) that provides 826L/Min, 29.1 CFM at maximum pressure. It has a voltage of 120V AC at 60 Hz powered by a single phase motor. 32 gallon capacity and the tank type is horizontal.
    *
    SKU: ATO-COMPR-705
    30-day Returns
    Delivery date: 40-45 days

    32 Gal. best air compressor features a 7.5 hp (5.5 kW) 120 volt heavy-duty electric motor with an oil lubricated, belt driven, cast iron pump that delivers 29.1 CFM at 115 PSI while operating at a quiet 80 decibels bringing less noise to your environment.

    7.5 hp Single Stage Air Compressor Description

    Model W-0678
    Size 127 (L)*48 (W)*96 (H) CM
    Type of the Air Compressor Belt driven
    Tank Capacity 32 Gal. (Can be customized)
    Motor Power 7.5 hp, 5.5 kW (Can be customized)
    Power Source AC Power
    Voltage 120V, 60Hz (Can be customized)
    Cylinder 80x3
    Air Delivery 826L/Min, 29.1 CFM
    Maximum Pressure 8 Bar, 115 PSI
    maximum Speed 1100 rpm
    Certification CE, ROHS, CCC, ISO
    Noise Level with 80dB
    Warranty 1 Year
    Cooling Method Air Cooling

    Choose Your Air Compressor

    You could choose the different stages of the 7.5 hp air compressor for your requirements

    Model Gal. kW HP Stage Cylinder L/min RPM PSI CFM Bar Size (cm)
    W-0678 32 5.5  7.5 1 stage  80x3 826 920 115 29.1 8 127*48*96
    W-067125 32 5.5  7.5 2 stage 80x2, 65x1 556 920 175 19.6 12.5 127*48*96

    Note: Tell us your application needs, we can customize the air compressor to meet your precise power, tank capacity, air delivery and rated voltage requirements.

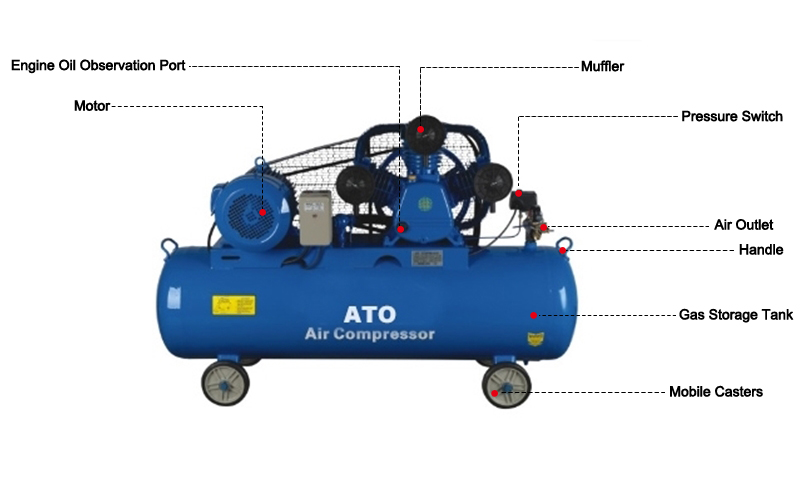

    Installation Diagram

    air compressor installation diagram

    Air Compressor Applications

    belt driven air compressor application

    Tips: Functions of air compressor dehydrator

    The air handled by air compressor must contain impurities. The reason is that air compressed by air compressor contains oil substances itself and there must be some impurities and oil mixed into it during the compressing process. In addition, the air itself contains some water correspondingly. If we directly use these untreated gas in the inlet in the inlet of gas circuit, it may bring some malfunctions to the air compressor itself, damage some accessories and reduce the service life of the air compressor, so that the production efficiency will inevitably be decreased and more seriously it is possible to cause the occurrence of accidents.

    The air compressor dehydrator can cool the gas in the pipe, produce the condensing effect, and cause the water to flow along the pipeline. There will be some normal phenomena before entering device for drying and filtering. At the same time, the water will grow more and more, allowing its flow and dirt to pass through the cotton net for filtration with combination. The cotton net itself is a vacuum. Therefore, the air filter moves back and forth, which makes the steam after dry filtration become the gas which has no adverse effects on the machine and removes all the substances that affect the work of the air compressor.
