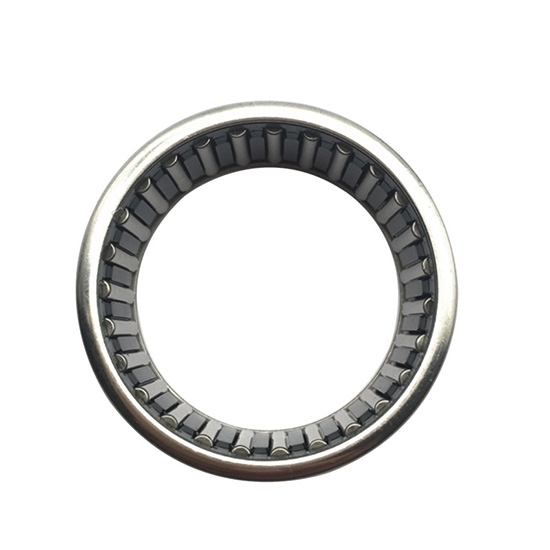

6mm Needle Roller Bearing, Drawn Cup Type

Buy a 10mm needle roller bearing online. The drawn cup needle roller bearing comes with a 10mm diameter, limiting speed of 19000 rpm. The needle bearing is mainly used for bearing configurations with compact structure, low price and the inner hole of the bearing box cannot be used as the raceway of the needle roller and cage assembly.

Specification

• Model: ATO-HK0609
• Inner diameter: 6mm
• Outer diameter: 10mm
• Width: 9mm
• Accuracy class: P2
• Limiting speed: 30000 rpm
• Basic load rating: Dynamic: 2650N, Static: 2400N
• Bearing material: High carbon chromium bearing steel

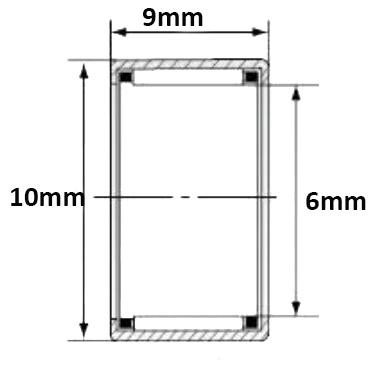

Dimension (mm)

Application

Tips: Why choose needle roller bearings?

• Uniform and compact structure, good load-bearing performance: What attracts consumers to needle roller bearings is its quoted structure. By visual observation, you can intuitively feel that this bearing is compact enough. And the parts used have been closely connected together. In this case, the weight and pressure that the bearing can bear will rise linearly and will not delay the operation due to overload.
• Different sizes can be suitable for different application scenarios: The focus of needle roller bearings to attract consumers is also the diversity of specifications and sizes, creating a relatively wide range of choices for consumers. These needle roller bearings can be carefully selected according to the characteristics of equipment categories and use scenarios.
• The characteristic of not easy to damage extends the life that can be used alone: Needle roller bearings are not easy to damage, so they attract consumers, which is particularly important. After all, bearings are used more frequently. If problems occur too often, it will seriously interfere with the stable operation of the plant. Only a stable and good structure can extend the service life of such bearings.
