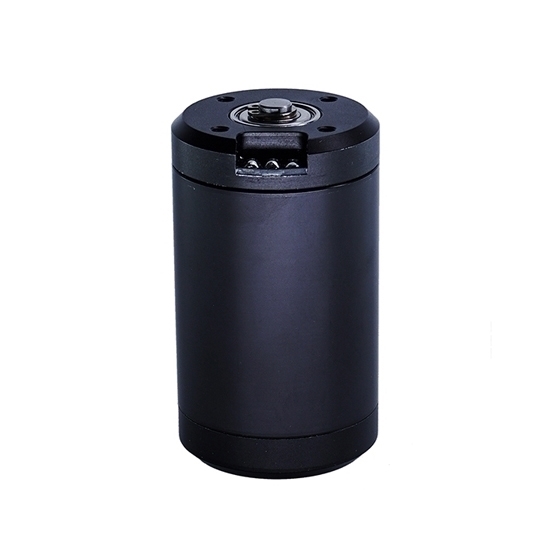

    650W 140KV 14-37S Waterproof Brushless DC Motor, IP28

    5 out of 5 based on 2 reviews | Write a review
    $169.85
    Affordable price 140KV brushless DC motor for sale, IP28 waterproof. Maximum power 650W, rotation speed 140KV, no-load speed 3100 rpm, input voltage 4-10S (DC 14-37V). Outrunner BLDC motor for underwater applications, matching ESC controller and adding propeller are available.
    *
    *
    SKU: ATO-BLDC-WP650
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    650W brushless DC motor with waterproof IP28, input voltage 14-37V (powered by 4-10S batteries). 140KV outrunner BLDC motor is suitable for underwater uses including electric surfboard, propeller, robot model, booster, etc. Matching controller and propeller options are available for your needs. In general, it would be more cost-effective to buy a complete set of our BLDC motor.

    Specification

    Model ATO-F5085
    Max Power 650W
    Rotation Speed KV (RPM/V) 140KV
    Max Input Voltage* DC 14-37V
    No-Load Current 0.8A
    Maximum Load Current 29.5A
    No-Load Speed 3100 rpm
    Motor Dimension 50*85mm
    Waterproof Grade IP28
    Weight 680g

    *Note: The motor is powered by 4-10S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

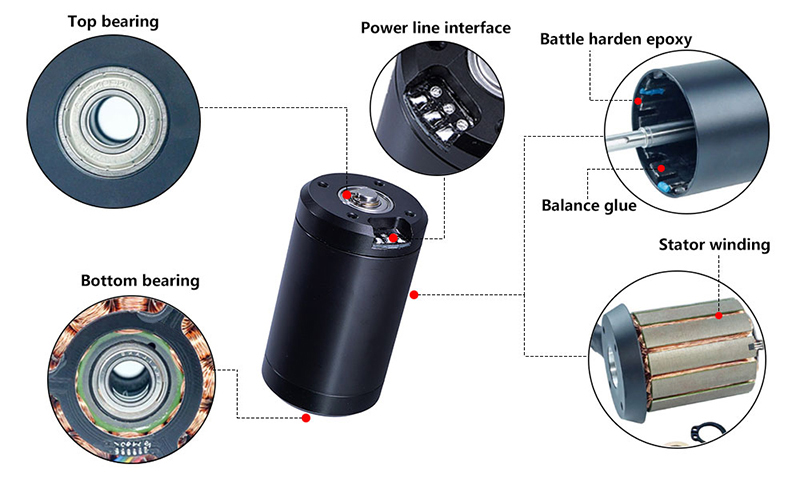

    650W Outrunner Brushless DC Motor Details

    650w outrunner brushless dc motor

    Waterproof Brushless DC Motor Dimensions Drawing (Unit: mm)

    Dimensions of 650W 140KV 14-37S Waterproof Brushless DC Motor, IP28

    ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor

    • The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
    • Brushless DC motor speed calculation formula: battery voltage * motor KV value.
      Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
    • The limit speed of V4 series ESC is 60000 ERPM.
      The limit speed of V6 series ESC is 15000 OERPM.
    • If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.

    ESC (Electronic Speed Controller) Specification

    Model Current Value Number of Batteries (Input Voltage)
    FSESC 4.12 Continuous 50A, peak 240A 3S-12S (8V-60V)
    FSESC 4.20* Continuous 50A, peak 240A 3S-12S (8V-60V)
    VESC 6.6 mini dual drive 1-channel 100A continuous, 2-channel 200A continuous
    1-channel peak 400A, 2-channel total peak 800A
    3S-12S (8V-60V)
    VESC6.6 integrated switch dual drive version 1-channel 100A continuous, 2-channel 200A continuous
    1-channel peak 400A, 2-channel total peak 800A
    3S-12S (8V-60V)
    FSESC6.6 VESC6.6 single drive integration Continuous 60A, peak 150A 3S-12S (8V-60V)
    VESC4 dual drive integration 50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel 3S-12S (8V-60V)
    ODESC3.6 single drive/dual drive 50A continuous 1-channel, peak 120A 1-channel 3S-12S (8V-60V)
    VESC6 dual drive 1-channel 100A continuous, 2-channel 200A continuous
    1-channel peak 400A, 2-channel total peak 800A
    3S-12S (8V-60V)
    Single drive V6 75200 Continuous 200A 3S-12S (8V-60V)
    Single drive VESC6 waterproof version Continuous 60A, peak 150A 3S-12S (8V-60V)

    *Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

    Tips: When does brushless DC motor need to be waterproof?

    Most BLDC motors are not waterproof, largely because their working environment does not need to be waterproof. While the waterproof material increases the cost, it also limits the overall performance of the motor. These costs are usually only valuable for specific applications, such as electric surfboards, diving propeller, and other applications where the motor may be in contact with liquids.

    Due to water and solvents, motion control components often face the risk of corrosion and failure. Waterproof motor is the key to solving the problem of motor failure caused by water. The motor industry has a standardized liquid protection measure called IP protection level.

    The waterproof brushless DC motor can work underwater. This is a general industry standard named after waterproof. This is not a modified standard motor, but a real waterproof motor, which can work well in deep water environments. The motor is equipped with redundant shaft seals, O-rings, sealed cable feedthrough lines, pressure equalization and other waterproof functions. These design features make the waterproof BLDC motor not malfunction even if it is exposed to water for a long time.

    Existing reviews of 650W 140KV 14-37S Waterproof Brushless DC Motor, IP28
    Some questions about the brushless DC waterproof motor
    Sameh Gouda,
    Thank you for your reply and the price discount offer.
    Will the motor operate on 48 Volts?
    What is the motor power requirement at 48 Volts?
    Is the motor a DC stepping motor or an AC 3 phase motor?
    From: Telarson | Date: 19/11/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Sameh Gouda,
    Thank you for your reply and the price discount offer.
    Will the motor operate on 48 Volts?
    What is the motor power requirement at 48 Volts?
    Is the motor a DC stepping motor or an AC 3 phase motor?
    Back emf of 650W waterproof brushless dc motor
    Has your 650W waterproof brushless dc motor trapezoidal back emf? Can you provide with agear box?
    From: Akoz | Date: 26/04/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, the back emf is trapezoidal, and we can add gear box, just indicate the ratio required.
    Load more reviews...
    Write your review for 650W 140KV 14-37S Waterproof Brushless DC Motor, IP28
    • Only registered users can write reviews
    • Bad
    • Excellent
