    630 Amps Isolator Switch, 3 Pole/ 4 Pole

    $234.96

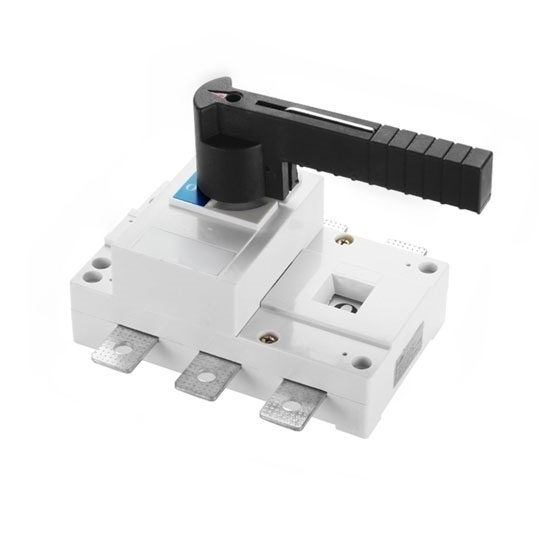

    630 Amps load break isolator disconnect switch, 3 pole and 4 pole are optional, with compact structure and complete specifications. Its power is 315 kW, direct sale from manufacturer.
    *
    *
    SKU: ATO-IS-HGL630A
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The load isolator disconnect switch includes 3 pole and 4 pole to choose from. This is a brand new upgrade switch, rated for 630 Amps. When used in 380V, the power is 315 kW. When used in 660V, power is 185 kW.
    In this video, we delve into the world of load break switches, mechanical devices capable of being operated while under load. We'll explore their functionality, applications in electrical systems, and provide a detailed breakdown of their features to equip you with a thorough comprehension of their advantages.

    630 Amps Load Isolator Disconnect Switch Specifications

    Basics Model ATOHGL-630A
    Pole 3 Pole/4 Pole
    Weight 3 Pole 4.9kg
    Technical Parameters 4 Pole 6.3kg
    Rated current 630A
    Rated insulation voltage Ui 690V
    Dielectric strength 1890V
    Rated surge-resistant voltage Uimp kV (installed category IV) 6
    Rated Working current le 380V AC-21B 630A
    AC-22B 630A
    AC-23B 630A
    Motor power P(380V)kW 380V 315 kW
    660V 185 kW
    Rated short-time withstand current lcw (kA rms)1.0s 12.6
    Rated breaking capability Icn (Arms) AC23 380VA 5040
    Rated making capacity Icm(Arms) AC23 380V 6300
    Rated short-current making capacity Icm'(Kapeak value) 25.2
    Mechanical durability (number of cyclic operation) 800
    Electrical Curability 380V 200
    Electric durability Ue=660V, Rated current COSφ=0.95AC21 7500
    COSφ=0.65AC22 500
    COSφ=0.35AC23 250
    Working Environment Moment of operation 14.5 Nm
    Temperature -5℃~+55℃
    Way of working Continuously working
    Operating Handle
    Installation form Vertical
    Altitude ≤2000m
    Pollution level 3
    Overvoltage level
    IP level IP 20

    Dimension

    160A-630A  isolator switch dimension

    Current A B C D D1 E ΦL J K N P R S U ΦX Y F H
    630A/3P 230 240 179 50 137 115 7 210 140 135 65 32 40 206 11 37 95 20
    630A/4P 290 240 179 520 137 114 7 210 140 135 65 32 40 206 11 37 95 20

    630 Amps Load Isolator Disconnect Switch Operation Mode

    63 amps load isolator disconnect switch
    Details

    630 Amps Isolator Switch Details
    Tips: What should I do if the isolating switch refuses to open or close?

    Due to mechanical failures such as shaft pin falling, wedge bolt withdrawal, cast iron fracture, or electrical circuit failure, the tool bar may be disconnected from the operating mechanism, which may cause the isolation switch to refuse to close. At this time, the insulating rod is used for operation, or the human body is guaranteed. If it is safe, use a wrench to turn the shaft of each phase isolation switch.

    When the isolating switch cannot be opened, if the operating mechanism is frozen by ice, you can gently shake it, and observe the parts supporting the porcelain bottle and the mechanism, so as to find out the obstacle location according to where the deformation and displacement occur. If the obstacle occurs in the contact part of the isolating switch, it should not be forced to open, otherwise the supporting porcelain bottle may be damaged and cause serious accidents. At this time, the operation mode of the equipment can only be changed to deal with it.
