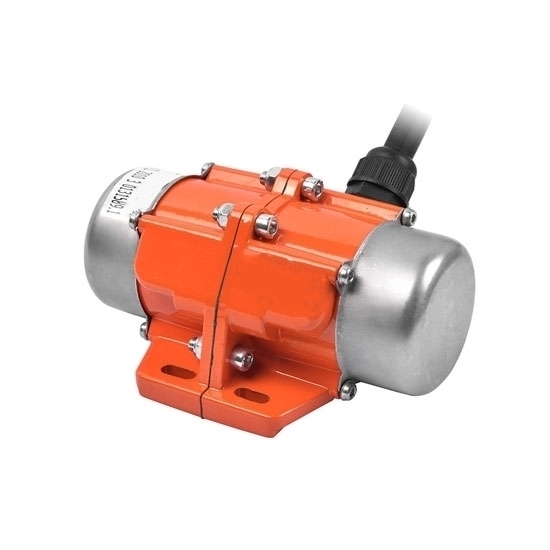

Adjustable vibration motor, 60W, single phase, 2 pole, 50Hz or 60Hz, 110V or 220V. Easy to use, high quality and safety guarantee. Widely used in electric power, construction, metallurgy and other industries.
Features:
1. Thickened aluminum alloy, small size, low noise and adjustable amplitude.
2. High strength, anti-deformation, anti-oxidation, can withstand long-term high-speed operation.
3. Thickened base, firm and shockproof.
4. The special voltage can be customized, and the power cord will be given as a gift under 100W.
5. Simple use, safety guarantee, IP65 protection level, waterproof and able to withstand low-pressure jet.
Specification
Model |
ATO-AVB-TB602S2 |
Power |
60W |
Voltage |
AC220V/AC110V |
Current |
0.184A/0.495A |
Frequency |
50 Hz |
60Hz |
Rated Speed |
3000rpm |
3600rpm |
Force |
63 kg (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%. |
Phase |
Single Phase |
Pole |
2 Pole |
Material |
Aluminum Alloy |
Protection Rank |
IP 65 |
Weight |
2.5 kg |
Optional Accessories |
Speed controller |
Frame No |
2 |
Certificate |
CE |
Dimension (unit: mm)
Frame No |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
2 |
175.5 |
110 |
79.5 |
10 |
26.5 |
36.5 |
63 |
38.5 |
66 |
91.5 |
8.5 |
25.5 |
66 |
M-16 |
Asynchronous Vibration Motor Internal Structure
Application
Tips: What Causes the Vibration Screening Motor to Burn Out?
Vibrating screening equipment installation problem, because the vibration motor is equipped with heavier eccentric blocks at both ends, such as vertical or inclined installation (ie vertical or inclined horizontal plane), the bearing axial direction must bear the gravity of the eccentric block. If there is no special device (ie, flat bearing) in the vibration motor, it will have a bad influence on the bearing, thus shortening the service life.
Precautionary measures: select vertical vibration motor (ie add plane bearing inside).Try to avoid vertical or inclined installation.
