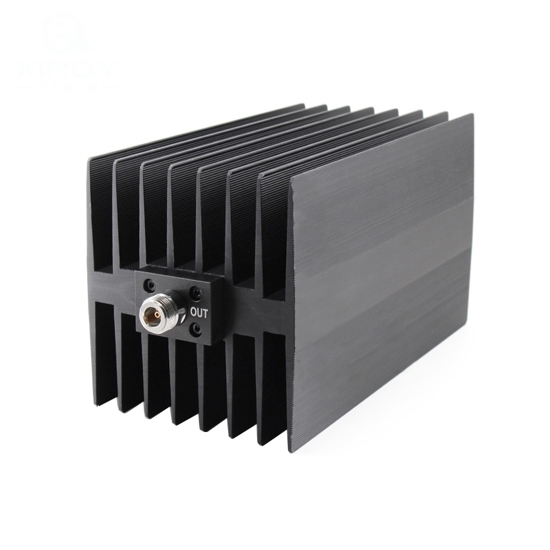

    60dB 200W RF Coaxial Attenuator, 50 Ohm

    $541.29
    200 watt high power fixed RF attenuator for sale, frequency range from DC to 6GHz, attenuation value 60dB, impedance 50 Ohm, working power 200W at 25℃. It is an indispensable component in electronic circuits, specifically designed for radio frequency (RF) applications. This low cost coaxial attenuator operating within the microwave frequency range, efficiently manages high-power signals without compromising signal integrity.
    SKU: ATO-RFFA-60DB200W
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Fixed RF coaxial attenuator employing SMA connector, efficiently controls signal power levels, ensuring optimal performance in electronic communication systems. It is indispensable for maintaining signal integrity in high-power RF environments, dissipating excess power as heat while facilitating consistent and reliable frequency-specific attenuation for enhanced system functionality.

    Specification

    • Model: ATO-NJKX-06-200W-60dB
    • Frequency Range (Optional): DC~6GHz
    • Standing Wave Ratio (VSWR): 1.25 (Max)
    • Attenuation Value: 60dB
    • Attenuation Accuracy: ±0.9dB
    • Impedance: 50 Ohm
    • Power: 200W@25℃
    • Pick Power: 5kW (5μsce Pulse Width, 0.5% Duty Cycle)
    • A connector Type: N-Male
    • B connector type: N-Female
    • Directionality: N Male Input, N Female Output
    • Temperature Coefficient: <0.0004dB/℃
    • Working Temperature: -55℃~+100℃
    • Inner Conductor Material: Beryllium Bronze with Gold Plating
    • Outer Conductor Material: Brass Plated with Ternary Alloy
    • Heat Sink: Aluminum Alloy Black
    • Insulator: PTFE
    • Net Weight: 3000g

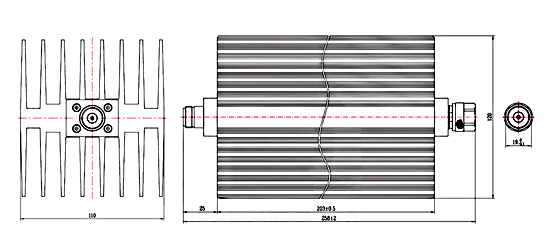

    Dimension (Unit: mm)

    60dB 200W RF fixed coaxial attenuator dimension

    Tips: Are fixed RF attenuators with DC blocking capability?

    Yes, fixed radio frequency (RF) attenuators can have DC blocking capabilities. RF attenuators are designed to reduce the power level of signals passing through them while maintaining signal integrity. Some attenuators incorporate capacitors or other components to block direct current (DC) from passing through, ensuring that only RF signals are attenuated. This DC blocking capability is crucial in RF systems to prevent unwanted DC components from interfering with the performance of the circuit or damaging sensitive components. By incorporating DC blocking features into RF attenuators, engineers can effectively control and manipulate RF signals while safeguarding the integrity of the overall system. It's important to check the specifications of specific attenuators to confirm whether they include DC blocking functionality, as not all attenuators are designed with this capability.
