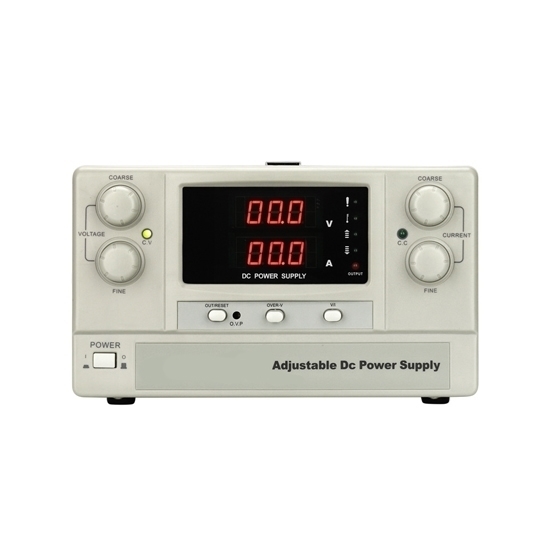

60A 30V 1800W Variable DC Power Supply

5 out of 5 based on 1 reviews | Write a review

$699.39

Buy 0 to 60A, 0 to 30V variable DC power supply online. It is switching mode with 1800W DC output power, constant voltage (CV) / constant current (CC) output precision, selectable single phase single phase 110V or 220V±10% AC input, 3 digit LED display. This high efficiency regulated DC power supply offers both adjustable voltage and current settings, ensuring precise control over the output parameters.

Input Voltage *

SKU: ATO-VDCPS3060K

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

60 amp 30 volt variable DC power supply with adjustable voltage and current capabilities, coupled with digital control features, serves as a reliable and efficient power source for electronics experimentation and development.

Specification

Model	ATO-JK3060K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-30V
Output Current Range	0-60A
Output Power	1800W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-20℃ to + 70℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months
Size	303 (L) x 255 (W) x 155 (H) mm
Weight	12kg

Detail

Details of 60A 30V Adjustable DC Power Supply

Tips: Are variable DC power supplies safe to use?

Variable DC power supplies are generally safe to use when operated within their specified voltage and current limits. These supplies allow users to adjust the output voltage and current for various electronic applications. To ensure safety, it's crucial to follow the manufacturer's guidelines and ratings, avoiding overloading the unit. Many variable DC power supplies incorporate built-in protection features, such as short-circuit protection and overcurrent protection, adding an extra layer of safety. Users should be aware of potential electrical hazards, follow proper handling procedures, and use appropriate protective gear when necessary. Regular maintenance and periodic checks of the equipment contribute to a safe working environment. In summary, when used responsibly and in accordance with guidelines, variable DC power supplies are safe tools for electronics experimentation and testing.

Existing reviews of 60A 30V 1800W Variable DC Power Supply

We have some questions

We have some questions:
1. Could you provide more details on the warranty coverage and available service options for the DC power supply?
2. Additionally, please elaborate on the process for submitting service requests.
3. Could you walk us through the exact steps involved in the calibration process for this RPS?
We look forward to your detailed response.

From: Janus | Date: 18/12/2024

Was this review helpful? Yes No (0/0)

ATO Responded

1. About warranty: Our products have a one-year warranty and lifelong maintenance. Free repairs are available during the warranty period.
If quality problems occur within one year, we will bear the repair costs. After one year, only the cost of replacing parts will be charged.
2. The specific steps for RPS calibration of DC power supply are as follows:
Preparation stage: Ensure that the calibration environment meets the standards and prepare the DC standard voltmeter, DC standard ammeter and other equipment required for calibration.
Equipment inspection: Check the appearance and function of the DC power supply to be calibrated to ensure that the equipment is not damaged and can work normally.
Set RPS reference point: According to the design requirements of the DC power supply, select key measurement points as RPS reference points, such as output voltage, current, etc.
Connect calibration equipment: Connect the calibration equipment to the DC power supply correctly to ensure that the connection is stable and reliable.
Perform calibration: According to the calibration procedures, calibrate the voltage and current step by step and record the calibration results.
Judge tolerance: According to the accuracy level of the DC power supply, judge whether the calibration result is within the allowable error range.
Marking and recording: According to the calibration results, mark the DC power supply as qualified or unqualified, and keep the calibration records.
