    600W Vertical Axis Wind Turbine, 12V/24V/48V

    $1,099.86
    The 600W household vertical axis wind turbine is a wind turbine that can generate up to 600 watts of power from the wind, rate voltage available in12V/24V/48V. The vertical axis design of the wind turbine allows it to capture the wind in any direction, which is perfect for areas where the wind direction is constantly changing.
    *
    SKU: ATO-VAWT-600
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The vertical axis wind turbine has a maximum output of 600W and rated voltage values of 12V/24V/48V, which is suitable for a variety of applications, from powering small homes to providing energy to remote areas. It also provides a low maintenance solution for off-grid power, helping to reduce energy costs and carbon footprint.

    Specification

    Model ATO-X5-600
    Rated Power 600W
    Rated Voltage 12V/24V/48V
    With Controller Yes
    Start Up Wind Speed 2m/s
    Rated Wind Speed 12m/s
    Survival Wind Speed 50m/s
    Wind Wheel Diameter/Height 0.55m/0.75m
    Number of Blades 3
    Blades Material Nylon
    Fuselage Material Aluminum alloy
    Magnetic Steel NdFeB
    Generator Type Three-phase AC permanent magnetically suspended generators
    Controller System Electromagnetic brakes
    Speed Regulation 360° Automatically Adjust Windard
    Installation Flange DN25
    Degree of protection IP54
    Gross Weight 22kg
    Top Net Weight 23kg
    Dimension 1060*270*490mm

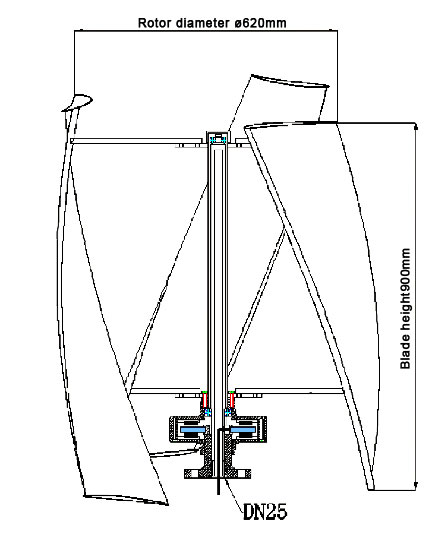

    Dimension
    (Unit: mm)

    600w vertical axis wind turbine dimension

    Applications

    The battery is charged by the wind turbine and solar panels through the controller, and the DC output port of the controller directly supplies power to the DC load. On days without wind or light, the power output by the wind turbine and solar panels is not enough to charge the battery, which can cause the battery to be under-voltage. In this case, the controller output dry contact control signal automatically switches to the grid power to supply the load.

    Vertical axis wind turbine application

    Tips: What is a vertical axis wind turbine (VAWT)?

    A vertical axis wind turbine (VAWT) is a type of wind turbine that has its rotor shaft positioned vertically instead of horizontally like traditional wind turbines. The blades of a VAWT are typically arranged in a vertical helix or Savonius design, which allows it to capture wind from any direction. VAWTs are often used for small-scale or urban wind power applications, as they are more compact and can be installed in areas with limited space or low wind speeds.
