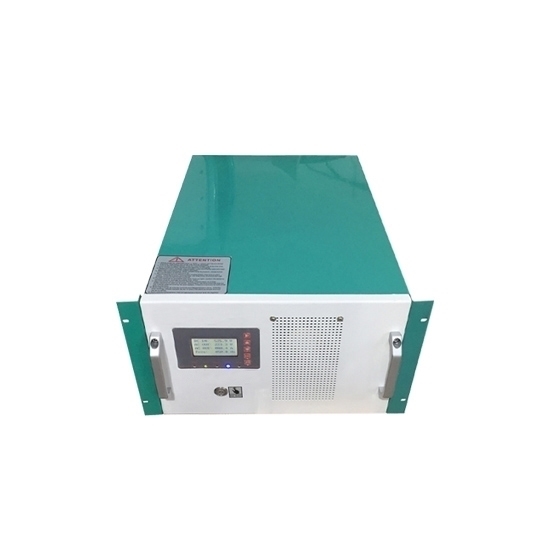

6000W Marine Power Inverter

Write a review

$5,134.94

Low price 6000 watt marine inverter for sale online. It has 192V input DC voltage, 32A input DC current, 110/120/220/230/240V AC output voltage, communication interface RS485, and pure sine wave output waveform. The provided marine DC to AC power inverter can invert the DC power from the ship's lithium or lead-acid batteries into AC power, high overall efficiency and low no-load loss.

Output AC Voltage (V) *
Output Frequency *
Communication Interface *

SKU: ATO-MPI-6KW

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

6000W marine power inverter comes with 192V input DC voltage, 32A input DC current, 110/120/220/230/240V AC output voltage, communication interface RS485, and pure sine wave output waveform, used for inverting the DC power from the ship's lithium or lead-acid batteries into AC power to meet the ship's power needs.

Features

6000 watt marine inverter utilizes the U.S. DSP28335 control chip for fast running speed and high precision, with a conversion efficiency of over 92% and a built-in industrial frequency isolation transformer for strong anti-interference and impact resistance.
The boat inverter is equipped with over-voltage, over-current, short-circuit, and overheating warning devices, along with frequency conversion starting and reduced voltage soft start functions, suitable for high-power motor startups.
Good price marine power inverter features an LCD and LED alarm indicators for easy operation, provides a pure output waveform with less than 3% distortion, and supports single-phase power supply with output voltage range of 110/120/220/230/240V AC.

Specifications

Model		ATO-SDP-6KW
Isolation Mode		Low-Frequency Transformer
DC Input	Voltage Range (V DC)	192V (Contact Us for Other Voltage)
DC Input	Rated Current (A)	32A (Contact Us for Other Current)
AC Output	Rated Output Power	6kW (6000 watt)
	Output Waveform	Pure Sine Wave
	Rated Voltage	110/120/220/230/240V AC (Optional)
	Phases	Single Phase
	Rated Current (A)	23A
	Frequency	50Hz or 60Hz
	Rated Output Voltage Range (V)	110/120/220/230/240V AC (Optional)
	Power Factor (PF)	0.99
	Overload Ability	150%, 5 seconds
	Efficiency	>93%
	Waveform Distortion Rate (THD)	<3% (Linear load)
	Dynamic Response (0 to 100% Load)	5%，≤50ms
	Display	LCD
	Running Mode	Working Continuously
	Electrical Insulation Properties	2000V AC, 1min
Communication Interface		RS485 (Optional)
Protection Function	Protection	Input Reverse Polarity, Under Voltage, Overvoltage, Output Over current, Shortcircuit, Overheating, etc.
	Cooling Method	Fan-cooled
	Short-circuit Protector	No Automatic Recovery Need to Restart the Machine
Working Environment	Noise (1m)	≤50dB
	Degree Of Protection	IP20 (Indoor)
	Working Altitude (m)	≤2000
	Working Temperature	-25~+55℃
	Relative Humidity	0~90% (Non-Condensing)
Rack Mounted Type	DepthWidth Height	435605267mm
Stand Type	DepthWidth Height	450550760mm

Applications

Marine power inverter applications

Tips: How to choose the rated output power of a marine inverter?

Calculate Your Power Needs
Identify all appliances and devices you plan to run simultaneously.
Determine the wattage requirements of each device and total them up.
Account for Surge Power and Efficiency
Consider surge power requirements for appliances with motors or compressors.
Factor in efficiency losses during power conversion (typically 10-15%).
Add a safety margin (about 20-30%) to account for unexpected power spikes and prolong the inverter lifespan.
Choose the Inverter
Select an inverter with a continuous power rating slightly higher than your total calculated requirement, including surge power and safety margin, to ensure reliable performance.
