6000W 120KV 6-20S Waterproof Brushless DC Motor, IP68

5 out of 5 based on 4 reviews | Write a review

$862.77

Buy 6000W waterproof brushless DC motor at ideal price. Rotation speed 120KV for selection, input voltage 6-12S (DC 25.2-84V), torque 9 N.m. Underwater BLDC motor kit (motor + controller + propeller) is available, for electric surfboard, thruster, submersible equipment, etc.

With ESC Controller *
With Propeller *

SKU: ATO-BLDC-WP6000

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Documents

120KV waterproof brushless DC motor operates at 25.2-84V DC voltage (by 6-12S batteries), 6kW high power, IP68 waterproof and 9N.m torque. Matching ESC controller, matching propeller options are available, which meet your Efoil, electric surfboard, electric hydrofoil, Foil surfboard, RC boat, Jet ski, Jetboard, etc.

Specification

Model	ATO-65161
Max Power	6000W (8 hp)
Rotation Speed KV (RPM/V)	120KV
Max Input Voltage*	DC 25-84V
Peak Current	200A
Max Spin Speed	16380 rpm
Motor Pole	6
Max Torque at 60%	9 N.m
Motor Dimension	65*161mm
Max Working Temperature	120℃
Insulation Voltage & Leak Current	AC500V/10ma/3S
Lead Wires Extension	8AWG x 1300mm
Waterproof Grade	IP68
Motor Wire	8AWG
Plug	8mm
Weight	3kg

*Note: The motor is powered by 6-20S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

6000W Waterproof Brushless DC Motor Details

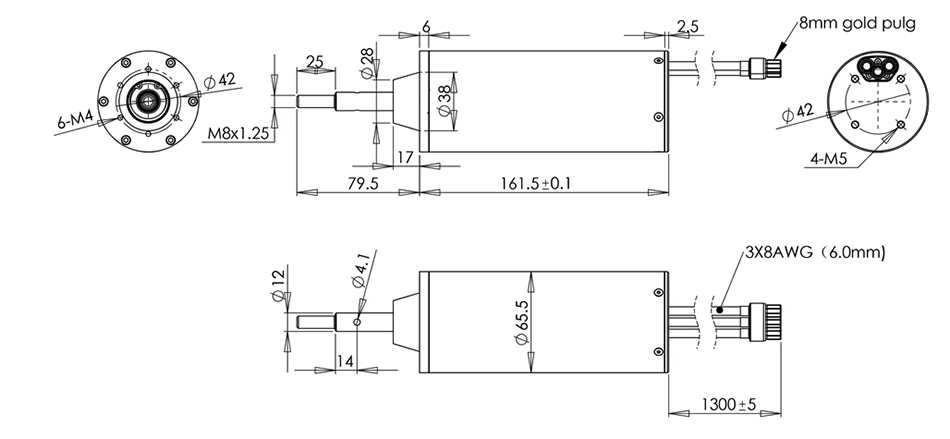

Waterproof Brushless DC Motor Dimensions Drawing (Unit: mm)

Dimensions of 6000W 100KV 6-20S Waterproof Brushless DC Motor, IP68

ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor

The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.

ESC (Electronic Speed Controller) Specification

Model	Current Value	Number of Batteries (Input Voltage)
FSESC 4.12	Continuous 50A, peak 240A	3S-12S (8V-60V)
FSESC 4.20	Continuous 50A, peak 240A	3S-12S (8V-60V)
VESC 6.6 mini dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
FSESC6.6 VESC6.6 single drive integration	Continuous 60A, peak 150A	3S-12S (8V-60V)
VESC4 dual drive integration	50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel	3S-12S (8V-60V)
ODESC3.6 single drive/dual drive	50A continuous 1-channel, peak 120A 1-channel	3S-12S (8V-60V)
VESC6 dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
Single drive V6 75200*	Continuous 200A	3S-12S (8V-60V)
Single drive VESC6 waterproof version	Continuous 60A, peak 150A	3S-12S (8V-60V)

*Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

Existing reviews of 6000W 120KV 6-20S Waterproof Brushless DC Motor, IP68

More information about brushless DC motor

I am very interested in your 6000W 120KV 6-20S Waterproof Brushless DC Motor, IP68 with waterproof Controller Version 75200.
However, in order to be able to buy this one, I would need some more technical information, such as a user manual and the CAN table.
Can you please tell me where I can get this information?

From: everet | Date: 19/07/2023

Was this review helpful? Yes No (0/0)

ATO Responded

Please refer to the manual:
https://www.ato.com/Content/Images/uploaded/doc/ato-waterproof-versionuser-manual.pdf
https://www.ato.com/Content/Images/uploaded/doc/ato-non-waterproof-version-user-manual.pdf

Battery

can you recommend a battery for this engine? Any brand?

From: Nicolo | Date: 07/08/2022

Was this review helpful? Yes No (0/0)

ATO Responded

This waterproof brushless dc motor powered by 6-20S battery, No brand recommendation.

Is this BLDC motor reversible?

For your BLDC motor with gear, is it reversible?

From: Brians | Date: 27/12/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, the gearbox is reversible, it works in both forward and reverse direction.

IP value of 6000W waterproof brushless DC motor

What is the highest protection degree “IP” for your BLDC motor?

From: Slick | Date: 16/07/2021

Was this review helpful? Yes No (0/0)

ATO Responded

The highest degree of protection of our brushless motors is IP68.
