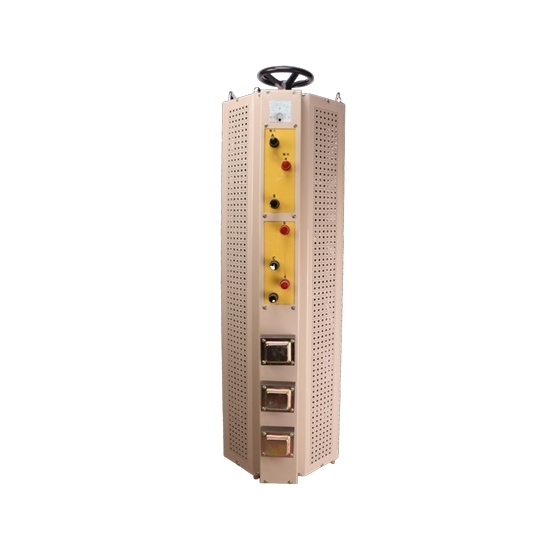

60 kVA 3 Phase Variac Transformer

3 Phase adjustable voltage transformer for sale, 60 kVA, the AC power supply adopts a clear metal instrument panel, with high design precision and compact structure, variac transformer is widely used in laboratory, factory equipment, foam cutting and household electricity.

Specification

• Model: ATO-VVR-TH60
• Rated Power: 60 kVA
• Input Voltage: 380V
• Output Voltage: 0~430V, 0~500V
• Frequency: 50/60 Hz
• Rated Full Offset Current: 80A
• Insulation Resistance: ≥5 MΩ
• Pressure Resistance: 2000 V/1min
• Weight: 300 kg
• Dimension: 345mm x 450mm x 1100mm
• Certificate: CE

Wiring method

Installation and use of three-phase variac transformer should be noted: the wiring must be firmly pressed, there can be no loose.

Three-phase variac transformer is a three-phase four-wire system, the input side should be connected to the zero line, when using the regulator to adjust the voltage should be adjusted from 0V to high voltage, the output voltage is different corresponding to the load power is different.

3 Phase 60 kVA Variable Voltage Transformer Details

Tips: Advantages of ATO three phase variac transformer

ATO three phase voltage regulator realizes precise temperature control through precise control of voltage, current and power. And with its advanced digital control algorithm, the power usage efficiency is optimized. It plays an important role in saving energy.
