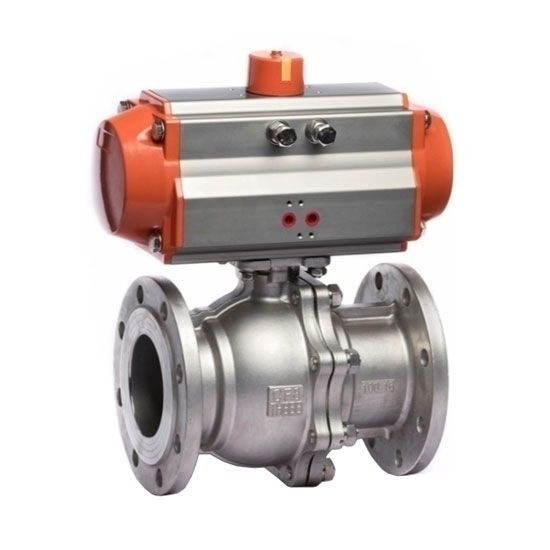

6" Pneumatic Flanged Ball Valve, 2 Way/ 3 Way

Write a review

$3,562.99

Economical price flanged type pneumatic actuated ball valve comes with 6 inch fluid port and 1/4 inch air supply port, stainless steel body material, high performance PTFE plastic seat, optional 2 way or 3 way. Industrial air powered ball valve is widely used for water, gas, oxygen and other air and fluid control.

Port *
Flow Type *

SKU: ATO-PBV-150A

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

6 inch 2 way or 3 way pneumatic flanged ball valve with high performance actuator for sale online. Air actuated ball valve comes with stainless steel body material is perfect for water, gas control and other high temperature fluid transfer.

Specification

Ball Valve	Model	ATO-Q641F-16P-DN150	ATO-Q644F-16P-DN150	ATO-Q645F-16P-DN150
	Ball Valve Type (Optional)	2 Way Flanged Type	3 Way Flanged Type, L Port	3 Way Flanged Type, T Port
	Port Size	6 inch (DN150, 150mm)
	Environment Temperature	-10°C to 60°C
	Medium Temperature	-10°C to 180°C
	Medium Pressure	1.6MPa
	Seat Material	Plastic (PTFE)
	Body Material	Stainless Steel (SS 304)
Pneumatic Actuator	Model	ATO-AT190D	ATO-AT210D	ATO-AT210D
	Bore Size	190mm	210mm	210mm
	Air Supply Port	1/4 inch	1/4 inch	1/4 inch
	Power Source	Compressed Air
	Actuator Type	Double Acting
	Air Pressure	0.3 ~ 0.8MPa
	Actuator Body Material	Aluminum Alloy

Details

Pneumatic Flanged Ball Valve Details

2 Way/ 3 Way Flanged Ball Valve Body Dimension (Unit: mm)

2 way / 3 way stainless steel flanged type pneumatic ball valve dimension

DN	L1	T	f	D	B	C	H1	H2	A1	A2	L2	N-M
150	360	24	3	280	210	140	465	452	450	530	440	12-φ18

Pneumatic Actuator Dimension (Unit: mm)

Pneumatic actuator dimension

ATO-AT160D

Q	A	B	C	D	E	F	G	H	I
Φ102/Φ125mm	450mm	193mm	89mm	104mm	226mm	197mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	30mm	80mm	4mm	4mm	12mm	24mm	16mm	32mm

ATO-AT210D

Q	A	B	C	D	E	F	G	H	I
Φ140mm	530mm	226mm	113mm	113mm	297mm	257mm	30mm	130mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	30mm	90mm	4mm	4mm	12mm	24mm	16mm	32mm

Three Way Ball Valve Flow Pattern

T Type:

3 way pneumatic ball valve flow patterns t port

L Type:

3 way pneumatic ball valve flow patterns l port

Tips: Different between flanged and threaded pneumatic ball valve

Flanged pneumatic ball valve

Advantages: easy to disassemble and assemble in the pipeline, suitable for some medium and large chemical projects. Acid and alkali resistance, strong resistance to pressure, durable and stable in use. The port selection is generally DN15-DN250.
Disadvantages: high cost, large volume, generally requires two or more people to complete the installation.

Threaded pneumatic ball valve

Advantages: small size, easy to install, generally suitable for home improvement buildings, or small pipes. Low cost for the factory unit.
Disadvantages: It is not easy to disassemble, especially in fixed pipes.
