5m (16 ft) Steel Tape Measure

Lower cost easy read measure tape with 5m (16 ft) measuring range, the tape blade width 16mm, the longest horizontal length is 1.4m, and the longest vertical length is 2.2m. The stainless steel tape measure's blade automatically stays extended while the AUTOLOCK push button. It also provides smooth and controlled retraction.

Specification

• Model: ATO-1001-0287
• Measuring Range: 5m (16 ft)
• Tape Blade Width: 16mm
• The longest horizontal length: 1.4m
• The longest vertical length: 2.2m
• Material: SK85 steel
• Weight: 173g
• Application: Measuring tool for engineering construction, household use

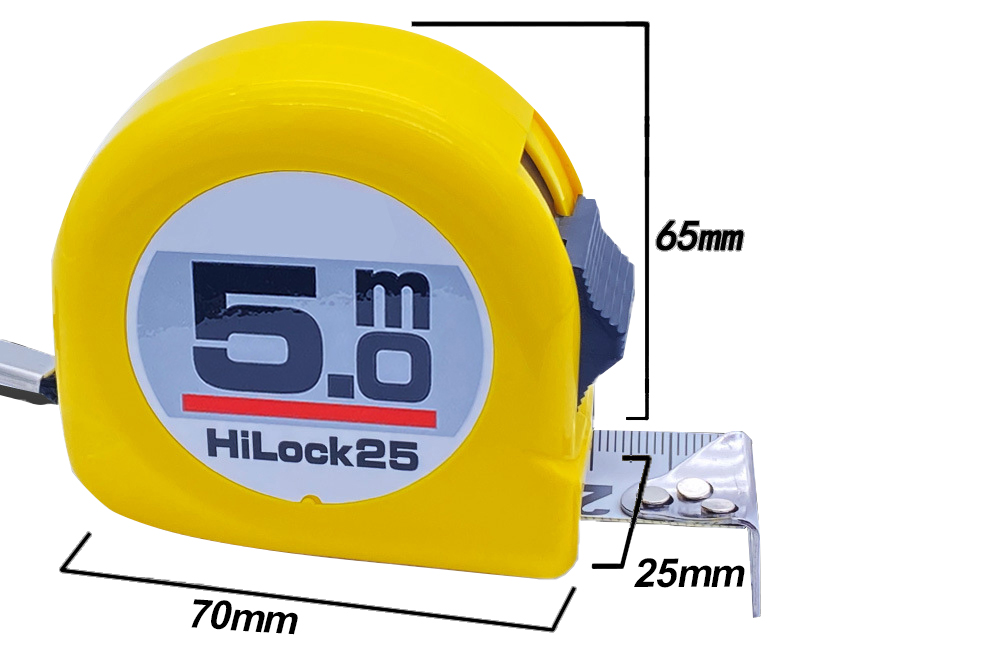

Dimension

Application

Tips: Steel tape measure components

The tape measure is mainly composed of seven parts: housing, ruler strip, brake, ruler hook, strap, ruler spring, anti-drop protection cover and labeling. The specific functions are as follows:

• Shell: ABS new plastic, with a glossy texture; anti-drop, wear-resistant, and not easy to deform.
• Ruler strip: 50# first-grade strip steel with a thickness of 10 wires (0.10mm); the ruler surface is the most advanced environmental protection paint: odorless, smooth and wear-resistant, bright in color, and the scale is clear and bright.
• Braking: With upper, side and bottom three-dimensional braking, the hand control feeling is stronger.
• Ruler hook: The rivet ruler hook structure is not easy to deform and ensures more accurate measurement.
• Hand strap: Two kinds of rubber and nylon; high-grade and high-quality; strong and durable, with good hand feeling.
• Foot spring: Generally made of 50# carbon steel and 65# manganese material: strong toughness and high precision.
• Anti-fall protective cover: High-quality plastic, prevents breakage and collision damage and enhances durability.
