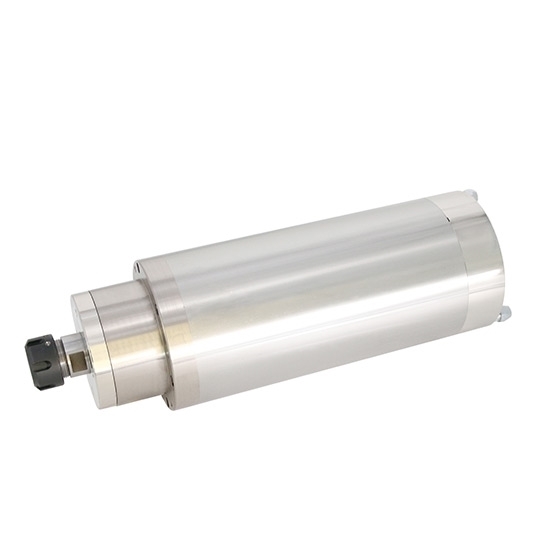

5.5 kW Water Cooled CNC Spindle Motor, 24000 rpm, ER25

5 out of 5 based on 1 reviews | Write a review

$998.46

24000 rpm high-speed spindle motor with 5.5 kW power, 3 phase, 2.91 Nm torque, 380V AC at 400Hz, ER25 collet, water-cooled of cooling method, equipped with VFD to use, is specially designed for CNC router machine.

Voltage *

With Matched VFD *

No
10 hp three phase VFD [+$463.25]
10 hp 220V to 380V VFD [+$1,095.67]

VFD Input Voltage *

SKU: ATO-SPINDLE-W5500

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

5.5 kW water cooled CNC spindle motor for sale at affordable price, 24000 rpm speed, 2.38 Nm torque, 400Hz frequency, 3 phase 220V/380V AC operating voltage, ER25 (φ3.175 mm - φ16 mm) collet.

Feature

Spindle motor with superior durability ER25 collet ensures smooth running.
Fast response, strong overload capacity, low noise, and high mechanical precision.
High quality 4 pcs bearings (7007Cx2 + 7005Cx2), runout off less than 0.01mm, tapered bore less than 0.005mm.
P4 grade ceramic ball bearings are used as spindle bearings, which improves the service life under high-speed revolution.
Lubricated with grease, which is resistant to 200 degrees high temperature.
Tight sealing and two-layer dustproof design.

Application

This series of air-cooled electric spindle motors is designed primarily for use with variable frequency drives or engraving machines, as well as CNC routers. It is ideal for high-speed profiling, drilling, cutting, engraving, and groove milling across a variety of materials, including wood, metal, plastics, foam, and rubber.

Note: Ensure that the spindle motor and VFD are compatible. The VFD’s specifications and parameter settings must align with the spindle motor’s nominal parameters. Incorrect settings can lead to spindle motor damage or burnout.

Specification

Model	STZ125-5.5-ER25
Matched VFD Model	GK3000-4T0075G (10 hp three phase VFD) GK3000-CS0075G (10 hp 1-phase 220V to 3-phase 380V VFD)
Power	5.5 kW
Diameter	φ125 mm
Phase	Three phase
Speed	24000 rpm
Voltage	3-phase 380V±10% AC
Current	14.5A
Frequency	400Hz
Torque	2.91 Nm
Number of Pole	2 poles
Cooling Type	Water-cooled
Installation Method	Horizontally or Vertically (When the motor is installed, the radial runout standard is required to be within 5um, and the chuck is generally 10um-15um.)
Lubrication	Grease
Thermal Class	Class F
Protection Class	IP50
Certification	CE
Warranty	Bearings for half a year, other parts for one year
Joint of Nose	ER25 (φ3.175 mm - φ16 mm)
Bearings Type	7007C P42 & 7005C P42
Application	Woodworking & Plastic
Weight	23 kg
Download Attachments	5.5 kW Water Cooled Spindle Motor CAD Drawings

Details

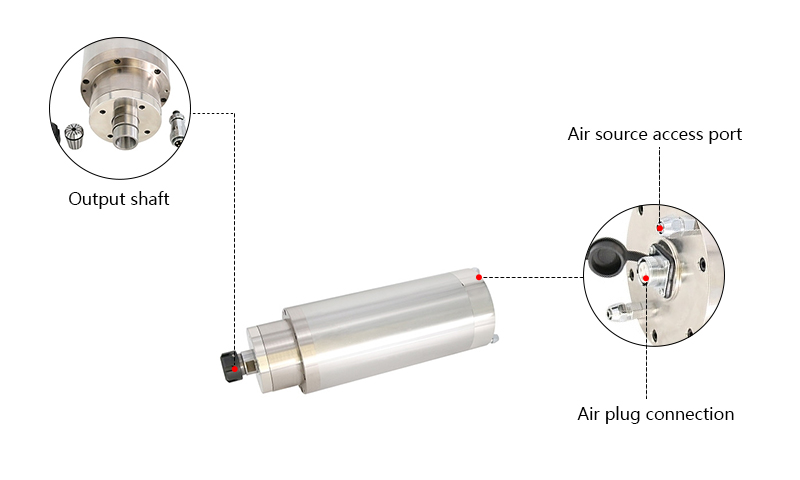

Tips: When Does the Spindle Motor Bearing Need to be Replaced?

In mechanical equipment, the components of high-speed spindle motors will inevitably cause serious wear under long-term working conditions. In particular, there are many bearing parts inside the motor. Under the action of running friction, some bearings with poor tolerance are prone to failure. The bearings in the spindle motor play a very critical role. Whether it is transmission, connection, or load-bearing, they all need to rely on bearings. If the bearing in the spindle motor is damaged and there is no way to continue using it, it needs to be replaced. When do the bearings of the spindle motor need to be replaced?

When there are obvious cracks and gaps in the inner and outer rings of the spindle motor bearing or the bracket part, they need to be replaced in time. If it is a rolling bearing, it must be replaced when the rolling element cracks.
When the rolling or sliding track of the spindle motor has obvious wear damage, pay attention to replace it. Some spindle motor bearings have rivets fixed on them. Loose rivets mean that new motor bearings must be replaced.
If the bearing is rusted due to exposure to the air, it should be replaced in time. Sometimes the high temperature causes burn marks on the surface of the motor bearing to be replaced.
When the spindle motor bearing has creep and plastic deformation, it means that the motor bearing cannot be used because of wear or high temperature, and new bearing parts need to be replaced.

Safety Tips for Using ATO CNC Spindle Motors

1. The electric spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor, and it will burn the spindle motor if the settings are not correct.

2. Before using water-cooled spindle motor, it shall ensure that cooling cycle system works normally and the running under no cooling conditions is prohibited. The volume of cooling water is calculated as per 1 liter/minute, the minimum flow of cooling water is not less than 5 liter/minute, cooling water pipe and the nozzle shall be connected reliably and there is no leakage.

3. The cooling liquid shall be clean and free of grease and the temperature shall be within 5-30℃. The cooling medium shall carry out force cooling when the ambient temperature is higher than 30℃. The precision lathe requires the cooling liquid with a constant temperature of 20 +/-2℃.

4. During storage and transport of the spindle motor, the status of high-speed grease inside the bearing will change. The user shall run it at a low speed first by starting from the lowest speed of the spindle motor for 30 minutes and then 20 minutes for every 3000 rounds. Otherwise there will have abnormal sound, noise, heat and other phenomena, which will affect the bearing life if the spindle motor is started directly at a high speed. During long term storage, the spindle motor shall run (at low speed) for 15-30 minutes once a week at least.

5. Collet, nut and inner taper hole shall be washed clean when installing blades on the spindle motor in order to avoid any impact on the precision. The blade handle shall be inserted into the collet more than 15mm.

6. For daily machining, the spindle motor shall be warmed up, run for 15-20 minutes when the machining speed is reached and then performs precise machining. It is better to stop the spindle motor for two hours every day in order to recover its mechanical fatigue and prolong its life time.

7. No knocking the end cover of the spindle motor. No hammering the collet and blade head when removing blades. No shocking or colliding during transport, storage and using, especially the end of the spindle motor.

8. The spindle motor shall run in designated direction.

9. The spindle motor shall be installed and fixed according to the relevant drawings and instructions.

10. The temperature shall be within 22-25℃ if water cooling machine is used.

11. The spindle motor adopts vapor lock and the gas source shall not be used until it has passed oil-water separator and dry filter. The air pressure is 0.2-0.25Mpa and the filtering precision is 5μm, otherwise there will cause damages to the bearing.
