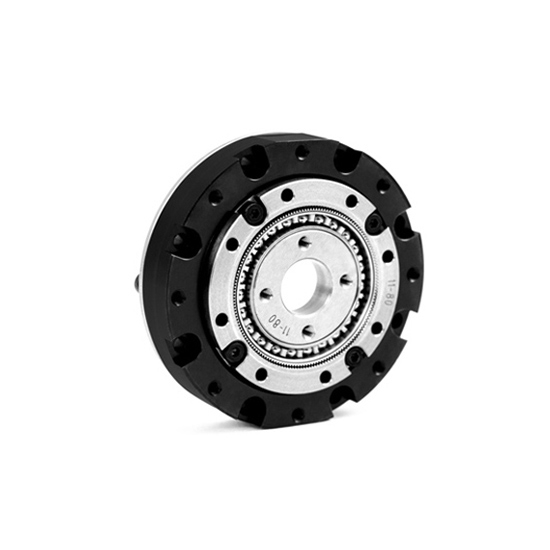

    52 mm Strain Wave Harmonic Drive Gearbox, Ratio 30~100

    52 mm Strain Wave Harmonic Drive Gearbox, Ratio 30~100

    5 out of 5 based on 1 reviews | Write a review
    $427.72
    Get a high torque harmonic drive gearbox at low cost. 52mm harmonic drive gearbox provides high transmission accuracy and supports single-stage high reduction ratio with low inertia, Gear ratios of strain wave gear are 30/50/80/100. It is commonly used for industrial robots, CNC equipment, medical instruments, and military industry.
    *
    SKU: ATO-HD-52
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Factory price 52mm strain wave harmonic drive gearbox is designed for industrial robots, CNC equipment, medical instruments, and the military industry. Mini harmonic gearing has 30/50/80 gear ratios. High torque strain wave gear can provide harmonic gear reduction, but can also be used to increase rotation speed.

    Features

    • The lightweight strain wave harmonic drive gearbox has an ultra-thin hollow, compact and simple structure.
    • Excellent positioning accuracy and rotation accuracy.
    • Harmonic gearing with a high torque capacity and a high gear ratio is available.
    • Special for wrist joint robot.

    Specifications

    • Model: ATO-SHD-11
    • Diameter: 52 mm
    • Thickness: 13.5 mm
    • Gear type: Cylindrical gear reducer
    • Installation form: Horizontal
    • Input speed: 4000 rpm
    • Rated power: 0.1 kW
    • Output speed: 0~500 rpm
    • Available torque: 1~100 N.m
    • Number of stages: Double-stage
    • Gear ratio: 30, 50, 80, 100, other gear ratios please contact us.

    Parameters

    Gear ratio 30 50 80 100
    Rated torque when input 2000r/min (N.m) 2.64 4.20 5.00 6.0
    Allowable peak torque at start and stop (N.m) 5.50 10.00 10.50 13.2
    Maximum allowable average load torque (N.m) 4.00 6.60 8.60 10.50
    Momentary allowable maximum torque (N.m) 10.20 20.00 24.00 30.00
    Allowable maximum input speed (r/min) 8500
    Allowable average input speed (r/min) 3500
    Moment of inertia (1/4GD) (kgcm2) 1.4x10-4
    1.2x10-4
    Arc seconds ≤20 ≤10
    Design life (hour) 10000


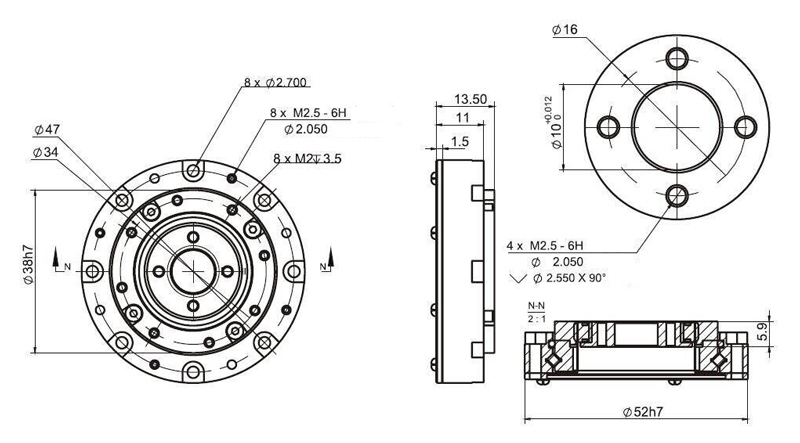

    52mm strain wave harmonic drive gearbox dimensions (unit: mm)

    52mm strain wave harmonic drive gearbox dimensions

    Strain wave harmonic drive gearbox applications

    Harmonic drive applications

    Tips: Features of strain wave harmonic drive gearbox

    ATO strain wave harmonic drive gearbox adopts S-shaped optimized involute tooth structure, meshing is smoother and more stable, and the tooth profile processing of rigid-flexible wheels breaks through the traditional slow wire-traveling and gear hobbing processes. With the special process of gear hobbing semi-finishing + smoothing and trimming the tooth surface accuracy; breaking the status quo of relying on imported machine tools and imported tools, the independent core technology is low-cost and high-yield to form a mass-production scale quickly.

    Installation Manual

    PDFATO Harmonic Drive Gearbox Installation Manual

    Precautions for installation

    1. When the harmonic drive gearbox is in use, if the output end is horizontally downward, the lubricating grease injected into the inner wall space of the flexspline must exceed the meshing tooth surface.
    2. The installation plane of the rigid wheel and the rigid wheel connection and the installation plane of the flexible wheel and the flexible wheel need to be statically sealed to ensure that the grease will not leak during the use of the harmonic drive gearbox and avoid the reducer from working with little or no oil Time damage.
    3. During the installation process, please do not knock the parts of the harmonic drive gearbox with hard objects, or apply strong pressure to avoid damage to the parts.
    4. If you have any questions during the inspection, please contact ATO.

    Tips for using a harmonic drive gearbox

    • Please use it in the specified environment.
      Observe the following conditions when using a harmonic drive gearbox:
      Ambient temperature: 0-40 degrees Celsius, no splashes of water, oil, etc.; no corrosive, explosive gas; no dust such as metal powder,
    • Please use the prescribed method for installation.
      Please implement the installation method correctly according to the harmonic drive gearbox manual. If it is not installed correctly, it may cause vibration, loss of accuracy, shortened service life, damage and other failures.
    • Please use the specified lubricant.
      Failure to use the specified lubricant may result in reduced harmonic drive gearbox life.
      Please do not disassemble or reassemble the product, otherwise, it will not be able to restore its original performance.
      Do not exceed the allowable torque during use, otherwise, it may cause harmonic drive gearbox failure.
    Existing reviews of 52 mm Strain Wave Harmonic Drive Gearbox, Ratio 30~100
    I am looking for 40:1 ratio gearbox product
    Hi, currently looking for a supplier for a similar product with a 40:1 ratio.
    Are you able to assist?
    From: enzo | Date: 25/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    SKU: ATO-HD-52
    Unfortunately, our Strain Wave Harmonic Drive Gearbox, this SKU only has fixed ratios of 30, 50, 80, 100, and 120, so we do not provide 40:1.
    Load more reviews...
    Write your review for 52 mm Strain Wave Harmonic Drive Gearbox, Ratio 30~100
    • Only registered users can write reviews
    • Bad
    • Excellent
    Related products
    40 mm Strain Wave Harmonic Drive Gearbox, Ratio 30~100

    40 mm Strain Wave Harmonic Drive Gearbox, Ratio 30~100

    $458.03
    SKU: ATO-HD-40
    Low price 40mm harmonic drive gearbox is the simplest solution for your high-precision motion control applications. It is a strain wave gear that offers harmonic gear reduction and increases rotation speed. Buy a harmonic gearing with a 30~80 gear ratio for robotics and aerospace.
    70 mm Strain Wave Harmonic Drive Gearbox, Ratio 30~100

    70 mm Strain Wave Harmonic Drive Gearbox, Ratio 30~100

    $367.12
    SKU: ATO-HD-70
    Buy a cheap strain wave harmonic drive gearbox online. 30/50/80/100 reduction ratios for selection. High torque and precision harmonic gearing with 70mm diameter, is the best solution for industrial robots.

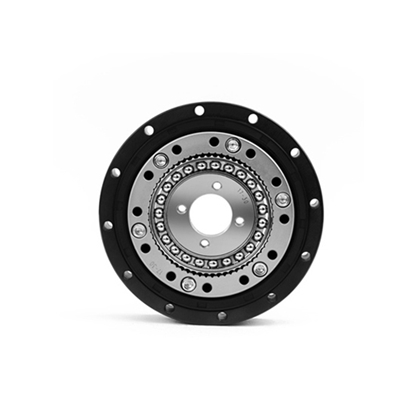

    80 mm Strain Wave Harmonic Drive Gearbox, Ratio 50~100
