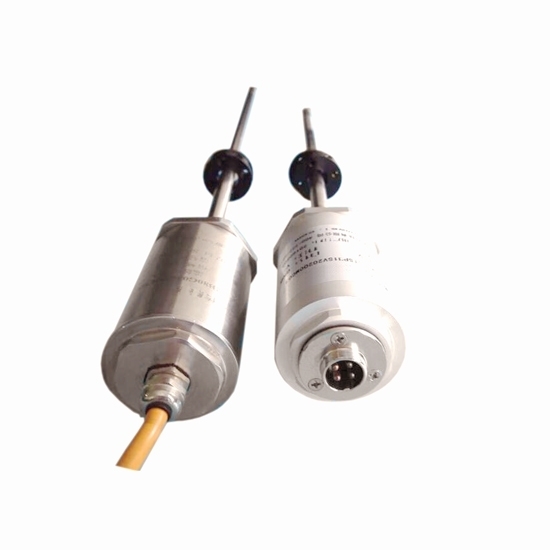

    500mm Magnetostrictive Displacement Sensor for lapping machine

    $949.86
    Magnetostrictive linear displacement transducer for lapping machine, high precision, no temperature drift, anti-jamming performance, long life, high temperature resistance, corrosion resistance, high pressure resistant.
    SKU: ATO-MSD-0500
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Magnetostrictive level sensor with measuring range 500mm is used for the machinery position preset and feedback, such as the lapping machinery position. Magnetostrictive sensors also can be used in most industrial automation systems.

    Specification:

    Basics Model ATO-MSD-0500
    Measuring range 0~500 mm
    Shipping weight 3 kg
    Length 699.3 mm
    Diameter 51 mm
    Technical parameters Linearity ≤0.03%FS
    Repeatability ≤0.003%FS
    Resolution ratio ≤0.001%FS
    Hysteresis ≤0.001%FS
    Working Voltage 24V /12V DC
    Working current Voltage /digital output type≤16mA; Current output type≤35mA
    Output method 0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
    Product type Normal type; Explosion-proof type; Anti-corrosion type
    Measuring rod material 0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
    Measuring rod diameter Ф10mm
    Electronic bin material 1Cr18Ni9 (304)
    304 and PTFE casing outside (Anti-corrosion type, special custom-made)
    1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
    Connecting screw thread M18×1.5; M20×1.5; 3/4-16UNF
    Type of lead wire PVC shielded cable; aviation plug (not applicable to explosion-proof type)
    Measuring rod pressure 40MPa, 70MPa (Explosion-proof type)
    Temperature T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
    Buffer area Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
    Vibration 100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
    Protection Class IP67
    Explosion-proof level Explosion-proof type: EXd II BT5

    Installation diagram (unit: mm):
    1. PG7 connection
    magnetostrictive sensor with PG7 connection
    2. Explosion-proof connection
    magnetostrictive sensor with explosion-proof connection
    3. External installation
    magnetostrictive sensor external installation
    Tips: SSI output magnetostrictive displacement sensor vs absolute encoder

    1. As for the standard RS485/RS422 digital output signal, through SSI synchronous serial output mode, the data format is the same as that of absolute output encoder. Output gray code or binary code can be used to replace absolute encoder for the sake of measuring the displacement. The interface of the both is compatible, so magnetostrictive displacement sensor can completely substitute absolute encoder.
    2. Magnetostrictive displacement sensor features good reliability. Featuring high anti-interference, SSI signal can be transmitted remotely. The data are exchanged synchronously and also can be used in various closed-loop control systems so as to be connected with various controllers or PLCs. Meanwhile, it features simple installation and long service life. Thus, it reduces heavy repair workload than absolute encoder.
    3. The output position is an absolute value, digital panel meter can read anytime without influence of power interruption and restoration, and it is not necessary to be reset. As for absolute encoder, it is necessary to be calibrated regularly and rest after power failure, etc. However, the magnetostrictive displacement sensor of SSI output makes up for the flaws of absolute encoders.
