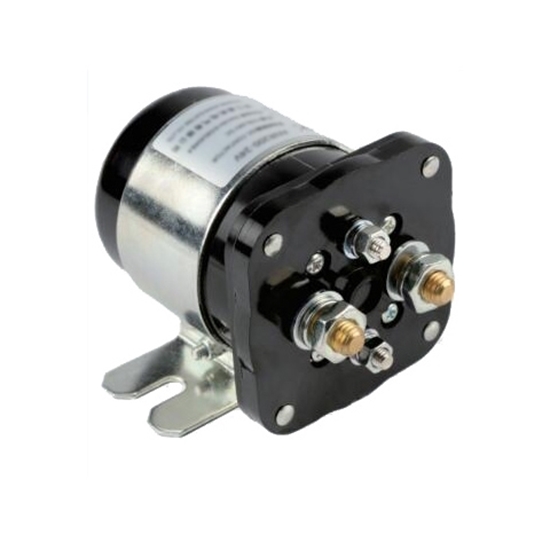

12 volt, 24 volt, 48 volt contactor is a high current contactor for DC loads, 500A rated current, with one normal open contact, using for battery, rectification power supply, pump motor and other electronic vehicles.
Features
- 500 amps rated load current of contact circuit.
- 12V, 24V, 48V DC coil rated voltage for selection.
- The allowed range of coil voltage is ±20%.
- 2A/48VDC and 5A/24VDC auxiliary contact rated load to choose.
- Mechanical life up to 300 thousand times.
Basics |
Model |
ATO-NR500 |
Body Size |
85*68*93 mm |
Weight |
800 g |
Technical Parameters |
Coil Rated Voltage |
12V/24V/48V |
Rated Load Voltage |
12~72V DC |
Contact Circuit Rated Load Current |
500 A |
Contact Form |
1 NO |
Overload Current |
≤7 le |
Coil Power |
≤7.2 W |
Main Contact Voltage Drop at 100A Load |
≤100 mV |
The Allowed Range of Coil Voltage |
±20% |
Pull-In Time (N/O Contacts to Open) |
≤30 ms |
Drop-Out Time (N/O Contact to Close) |
≤20 ms |
Insulation Resistance |
≥50 MΩ |
Dielectric Withstanding Voltage |
50Hz/60Hz 1500VAC/Min |
Electric Life |
Continuous 20000 times |
Mechanical Life |
300 thousand times |
Environment |
Operating Temperature |
-25℃~55℃ |
Operating Humidity |
5~95% RH |
International Protection |
IP 50 |

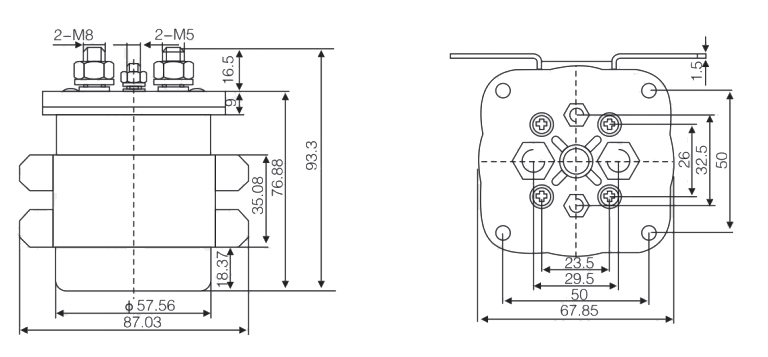

Installation Diagram (Unit: mm)
Tips: What is a DC contactor?
DC contactor is mainly used for remotely connecting and disconnecting the DC circuit, as well as frequently starting, stopping, reversing and plug braking the DC motors. It's also widely used for connecting and disconnecting the lifting electromagnet, solenoid valve, clutch's magnetic coils. DC contactor has two structure of stereoscopic arrangement and plane arrangement, some products are derived on the basis of AC contactor. Therefore, structure and working principle of the DC contactor are basically the same as that of AC contactor, which mainly consists of three parts, electromagnetic mechanism, contact system and arc-extinguishing equipment.
