140KV brushless dc electric motor combines with controller at affordable price. Adding pulley option is available. 5kW inrunner BLDC motor features 8mm/10mm shaft, 4-12S battery voltage, 10 N.m high torque to drive your electric skateboard, longboard, mountainboard, etc.
Specification
Model |
ATO-63100 |
Max Power |
5000W (6.5 hp) |
Rotation Speed KV (RPM/V) |
140KV |
Max Current |
100A |
Input Voltage Range |
4-12S |
Max Torque |
10 N.m |
Recommend ESC |
VESC6 dual drive (3S-12S) |
Motor Wind |
9 |
No-Load Current |
1.9A at 10V |
Motor Length |
100mm |
Motor Diameter |
63mm |
Total Length |
138 (including shaft) |
Weight |
1.4kg |
Motor Resistance |
0.031Ohm |
Motor Inductance |
77uh |
Shaft Diameter |
10mm round shaft, 10mm D-shaft, 8mm round shaft (Optional) |
Bullet Connector |
4mm |
Shipping Package |
ATO-63100 motor*1, banana head 4.0mm female head*3 |
*Note: The motor is powered by 4-14S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

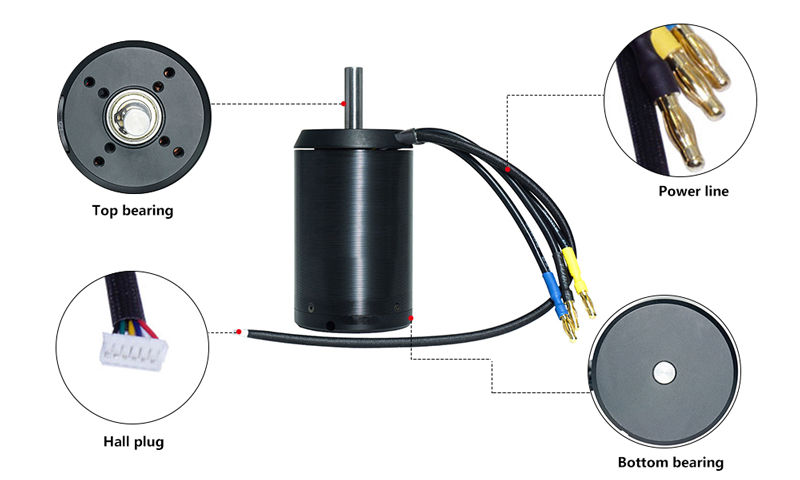

5000W Inrunner Brushless DC Motor Details

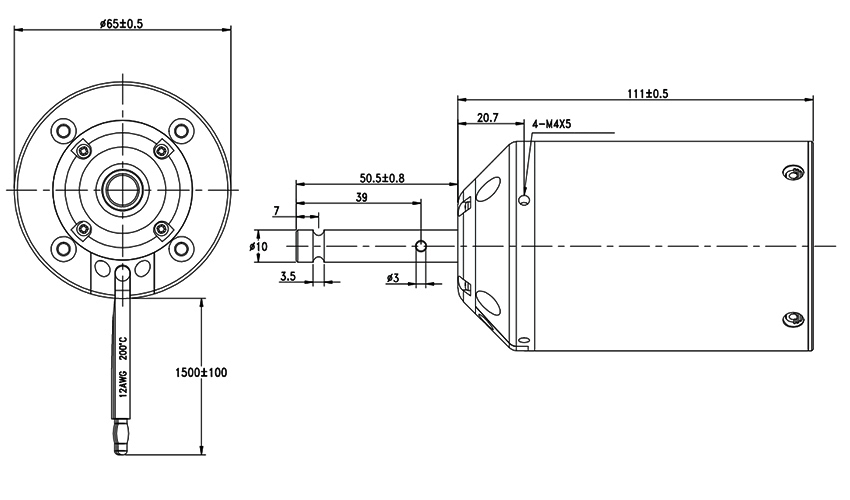

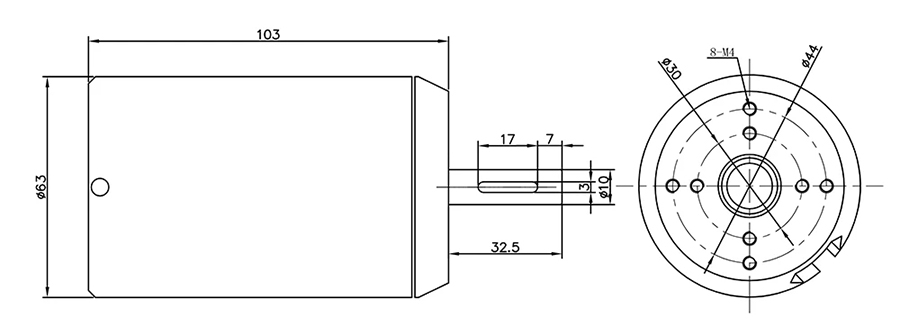

Brushless DC Motor Dimensions Drawing (Unit: mm)
ESC (Electronic Speed Controller) Selection for E-Board BLDC Motor
- The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
- Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
- The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
- If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.
ESC (Electronic Speed Controller) Specification
Model |
Current Value |
Number of Batteries (Input Voltage) |
FSESC 4.12 |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
FSESC 4.20 |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
VESC 6.6 mini dual drive |
1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
VESC6.6 integrated switch dual drive version |
1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
FSESC6.6 VESC6.6 single drive integration |
Continuous 60A, peak 150A |
3S-12S (8V-60V) |
VESC4 dual drive integration |
50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel |
3S-12S (8V-60V) |
ODESC3.6 single drive/dual drive |
50A continuous 1-channel, peak 120A 1-channel |
3S-12S (8V-60V) |
VESC6 dual drive |
1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
Single drive V6 75200 |
Continuous 200A |
3S-12S (8V-60V) |
Single drive VESC6 waterproof version |
Continuous 60A, peak 150A |
3S-12S (8V-60V) |
Note: If you need to learn more details about ESC controller, please contact us.
Tips: Outrunner BLDC motor used in electric skateboard.
The BLDC motor whose rotor rotates with motor housing and spindle is fixed is the outrunner motor. In contrast, the motor whose rotor rotates with motor spindle and the base is fixed is the inrunner motor.
Generally speaking, outrunner brushless motor has many poles, low speed and high torque. The inner rotor has few poles, high speed and low torque. Usually the rotating part is the part where the magnet is embedded, and the non-rotating part is the coil part.
In the case of the same weight of rotor, the internal rotation is not as large as the external rotation, so the KV of internal rotation is high and the torque is low, while the external rotation is just the opposite.
The inner rotor motor has low torque and high speed, and is mostly used in vehicle models (such as cars, boats and helicopters). The outrunner brushless motor has better heat dissipation and is suitable for electric skateboards and other equipment.
