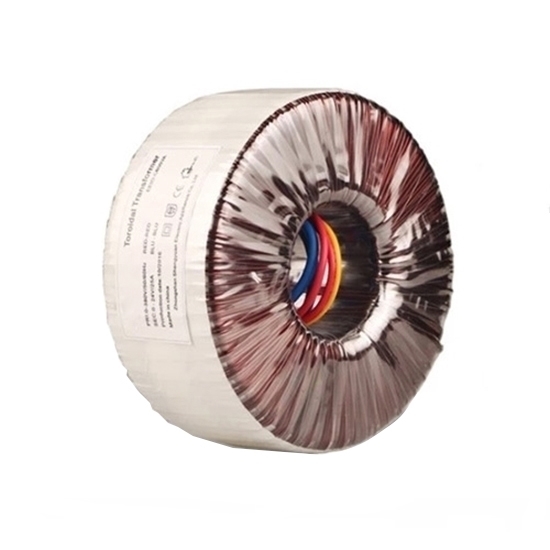

    5000VA Toroidal Transformer, 230V to 50-0-50V

    $1,492.47
    High power 5000VA (5000 watt) electric toroidal transformer is compact size and full cooper wire design, make the conversion efficiency up to 96%. 50Hz/ 60Hz low frequency, 1-phase 230V input voltage to dual 2x50V (50-0-50) output voltage, 12V/ 24V/ 48V single output is available for optional.
    *
    *
    SKU: ATO-T-C5000VA
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Single phase 5000VA toroidal transformer power supply for sales, with high performance and competitive price, designed to step down input voltage 230V AC to double output voltage 50-0-50 volt or single output voltage 12V/24V, input/output voltage can be customized as your needs. It features high insulation strength, CE recognition, less noise, and long life.

    Advantages of ATO Toroidal Transformer

    1. High Efficiency: Winding matches the core perfectly, which makes the transformer more efficient.
    2. Long Service Life: With high-quality materials and manufacturing technology, the transformer can be used for 30 years.
    3. Less Noise: The core is seamlessly rolled and the winding is set evenly over it, which makes the transformer quiet when it is working.
    4. Less Radiation: Toroidal structure and winding technology reduce electromagnetic radiation.
    5. Low Temperature Rise: Even if it is overloaded at 120%, the temperature rise will be less than 70℃.

    5000VA Toroidal Transformer Specifications

    Model ATO-C5000VA
    Phase Single phase
    Power 5000VA (5000W)
    Primary Voltage 230V AC (Optional: 110V, 120V, 220V, 230V, 240V)
    Secondary Voltage 2x50V (50-0-50) (Optional: 12V, 24V, 48V, 110V, 220V, 2x6V, 2x12V, 2x15V, 2x24V, 2x30V, 2x35V, 2x40V, 2x50V, can be customized)
    Secondary Current 208.33A each winding
    No. of Inputs 1 input
    No. of Outputs 2 outputs, 4-wire (1 output is available)
    Note: For the transformer with 2 outputs 4-wire, each output provides the same voltage and current level, the sum of 2 output power capacities is equal to the total capacity.
    Frequency 50Hz/60Hz
    Winding Material Copper Wire
    Coil Structure Toroidal
    Efficiency 90%-96%
    No-load Loss <7.15W
    Voltage Strength DC2500V
    Insulation Impedance ≥500MΩ
    Cooling Method Natural air cooling
    Temperature +40℃
    Certification CE, RoHS, ISO
    Warranty 12 months
    External Diameter 250mm
    Height 100mm
    Pedestal 250*250mm
    Mounting Hole Distance 250*250mm
    Weight 36kg
    Package Included 1*Toroidal transformer + 1*Accesorries sets (Nut, Shim, Metal disk, Rubber gasket, Pedestal, Screw)

    Toroidal Transformer Accessories

    toroidal transformer accessories

    Toroidal Transformer Mounting Methods

    toroidal transformer mounting method

    Toroidal Transformer Internal Structure

    toroidal transformer internal structure

    Tips: Under what circumstances can a toroidal transformer not be used normally?

    1. Toroidal transformers cannot be used normally in the case of being proven to be unqualified in production processes or tests.
    2. If the parameters of the toroidal transformer cannot be matched with the parameters of the paired equipment, the toroidal transformer cannot be used normally, so the customer must explain the use occasions and needed parameters to the manufacturer before purchasing the toroidal transformer.
    3. If the toroidal transformer is accidentally broken during logistics or courier transportation, or the base of the toroidal transformer is deformed, causing mutual collision between the transformers, or damage to the copper wire, it can neither be used normally.

    Compared with ordinary transformers, toroidal transformers have great advantages in efficiency, temperature rise, cost, anti-interference, and longevity. This video will showcase its function and benefits.
