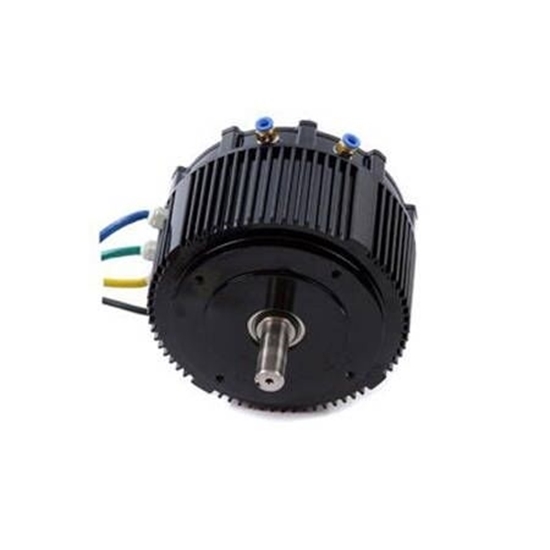

5 kW Water Cooling BLDC Motor For Electric Vehicle

Write a review

$1,375.68

Buy 5 kW water cooled brushless motor online at low price, rated speed 3000-5000rpm, rated torque 13Nm, peak torque 45 torque, high power water-cooled motor rated voltage 24V/36V/48V optional, ideal for electric cars, electric boats, forklifts.

Rated Voltage *
Controller

SKU: ATO-EVW-5000

Qty:

30-day Returns

Free Shipping

Delivery date: 10-12 days

Overview
Related Video

5000W DC brushless water-cooled motor for electric vehicles, rated speed 3000~5000rpm, rated voltage can choose 48V/72V/96V, brushless motor with built-in water-cooling system, no additional equipment needed.

Specifications

Model: ATO-HPM5000W
Voltage: 24V/36V/48V/72V
Rated Power: 5 kW
Peak Power: 10 kW
Rated Current: 125A/85A/60A
Max Phase Current: 300A/260A/200A
Protection Class: IP54
Rated Speed: 3700rpm
Rated Torque: 13Nm
Peak Torque: 45Nm
Efficiency: >90%
Diameter: 21cm
Height: 18cm
Weight: 11kg
Cooling Method: Water-cooled

Features

5 kW brushless dc motor has a compact design, water resistant, stainless steel shaft, and self-cooling fan.
Water-cooled brushless motors are easy to build and require no additional equipment.
If you want to build an electric motorcycle with plenty of air to provide cooling air, the cooling system will be your best choice

Dimensions (Unit: mm)

Details

5000W Water Cooling BLDC Motor Details

Applications

5 kW brushless DC motors are suitable for cars, motorcycles, golf carts, ATVs, UTVs and yachts.

Brushless motor for eletrical car-application

Tips: Can 5 kW water-cooled brushless DC motors be used in electric vehicles?

Water-cooled brushless DC (BLDC) motors are popular motors for industrial and automotive applications. In the automotive sector, these motors are often used in electric vehicles (EVs) due to their high efficiency.
