5 kW Air Cooling BLDC Motor For Electric Vehicle

5 out of 5 based on 1 reviews | Write a review

$1,375.68

5000W Air cooling DC brushless motor for electric bikes, rated at 3000~5000rpm, the voltage 24V/36V/48V/72V is available, easy to make, no extra equipment needed, the best choice to provide cooling air for electric motorcycles, sufficient air volume.

Rated Voltage *
Controller

SKU: ATO-EVA-5000

Qty:

30-day Returns

Free Shipping

Delivery date: 10-12 days

Overview
Related Video

Buy online brushless DC motor with air cooling system, power 5 kW, rated speed 3000~5000rpm, rated voltage 24V/36V/48V optional, suitable for electric car, motorcycle, golf cart, ATV, UTV and yacht.

Specifications

Model: ATO-HPM5000A
Voltage: 24V/36V/48V/72V
Rated Power: 5 kW
Peak Power: 10 kW
Rated Current: 125A/85A/60A
Max Phase Current: 300A/260A/200A
Protection Class: IP54
Rated Speed: 3700rpm
Rated Torque: 13Nm
Peak Torque: 45Nm
Efficiency: >90%
Diameter: 21cm
Height: 18cm
Weight: 11kg
Cooling Method: Air-cooled

Features

5 kW brushless dc motor has a compact design, water resistant, stainless steel shaft, and self-cooling fan.
Air-cooled brushless motors are easy to build and require no additional equipment.
If you want to build an electric motorcycle with plenty of air to provide cooling air, the cooling system will be your best choice

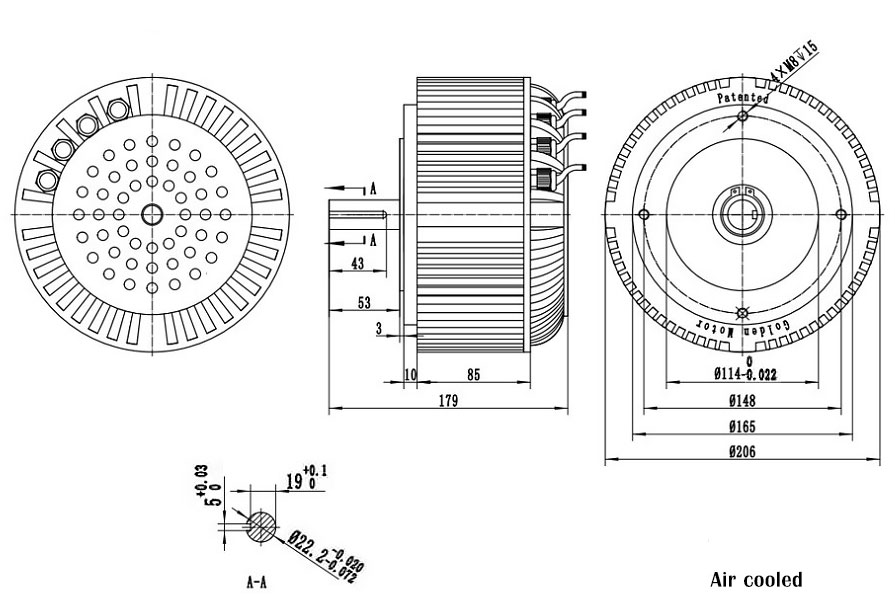

Dimensions (Unit: mm)

Details

Applications

5 kW brushless DC motors are suitable for cars, motorcycles, golf carts, ATVs, UTVs and yachts.

Tips: How do 5000W air-cooled brushless motors work?

Uncooled motors disperse heat by convection into the machine housing where they are mounted and into the surrounding environment. 5 kW air-cooled motors have a fan that blows air onto the motor housing, thus cooling it. Air-cooled motors have a fan that blows air onto the motor housing, thus cooling it. Fluid-cooled motors are cooled by water or oil. The cooling channels that flow through the motor.

This video shows you how to connect a 50W 24V 3 phase BLDC motor to its driver and achieve speed control.

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

Existing reviews of 5 kW Air Cooling BLDC Motor For Electric Vehicle

Which of those do you suggest?

I’m trying to make that decision. The 5kw seems like enough power as long as it can spin at 5000rpm with the resistance from the prop and not overheat. If it can do that for a couple of hours at a time safely, I’ll get the 5 kW. If I need more power to spin the motor at 5000 rpm with resistance from the prop, then I’ll get the 10kw configured for a higher rpm. Which of those do you suggest?

From: Liam | Date: 06/09/2023

Was this review helpful? Yes No (0/0)

ATO Responded

If you want the motor to output enough power, we recommend a 10KW 5000rpm motor, because the peak power of a 5KW motor can Not last for a long time.
