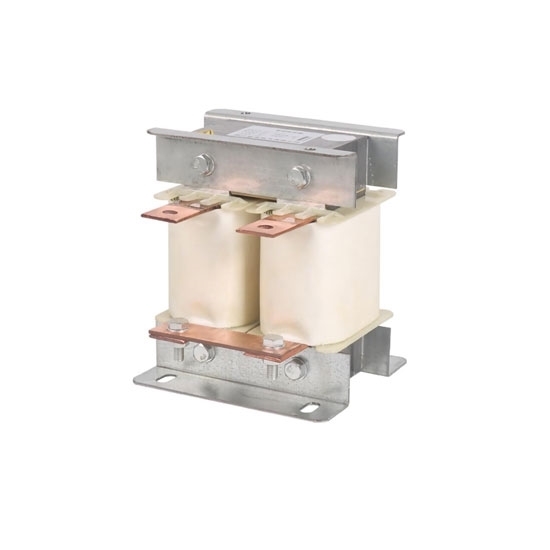

    5 hp (4 kW) DC Reactor, Single Phase

    5 out of 5 based on 1 reviews | Write a review
    $117.84
    Single phase DC line reactor for VFD, with 5 hp (4 kW) power, low price, output DC voltage can be customized, rated current 10 amps, improve the input power factor and suppress the harmonics generated by the converter.
    *
    *
    SKU: ATO-DCR-5
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Cheap price 4kW DC reactor for sale, copper or aluminum of material design, single phase DC output voltage 220V, 380V, 400V to 1200V is optional. Electrical DC line reactor can improve the input current wave caused by capacitor harmonics.

    Specification:

    Model ATO-DCL-4
    Phase 1 Phase
    Power Adapter 4 kW (5 hp)
    VFD Voltage Adapter 220V-1200V (Contact us for other voltages)
    Rated Current 15A
    Inductance 2.125mH
    Insulation Grade F.H
    Dimension 96*125*110mm (L*W*H)
    Mounting Dimension 80*70mm
    Electric Strength Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
    Insulation Resistance iron core-winding 1000VDC, Insulation resistance
    ≥100MV
    Noise of Reactor Less than 35dB (measured from 1 meter away in horizon from reactor)
    Degree of Protection IP00
    Degree of Insulation > Class F
    Weight 3kg

    Features
    1. Improve the input current wave caused by capacitor harmonics.
    2. Reduce and prevent rectifier bridge damage and capacitors.
    3. Overheating due to a surge in current.
    4. Improve the power factor and reduce the AC pulse of the DC bus.
    5. Limit transient changes in system voltage.

    Dimension (unit: mm)
    DC reactor dimensionDetails

    Single Phase DC Reactor Details

    Tips:  Why do I need a DC reactor?

    Whether a DC reactor is required on the output side of the inverter input and output protection circuit should be determined according to the working environment of the inverter. When the following situations occur, consider using a DC reactor.
    1. With switched reactive compensation capacitors or with thyristor phase-controlled load
    For the case where there is a switch-type reactive power compensation capacitor screen or a thyristor phase-controlled load on the same power node providing the inverter's working power, a DC reactor should be used. This is mainly due to the instantaneous change in reactive power caused by the switching of the capacitor screen, which will cause a sudden change in the grid voltage; and the harmonics and grid waveform gaps caused by the phase-controlled load may cause harm to the input rectifier circuit of the inverter.
    2. Unbalanced three-phase power supply
    When the imbalance of the three-phase power supply to the inverter exceeds 3%, a DC reactor should be selected.
    3. With power factor requirement
    If there is a certain requirement for the power factor of the input terminal of the inverter, if it needs to be increased above 0.93, a DC reactor should be selected.
    4. Large capacity transformer
    If the inverter is connected to a large-capacity transformer, and the current flowing in the input power circuit of the inverter may cause damage to the inverter's rectifier circuit, a DC reactor should be used.
