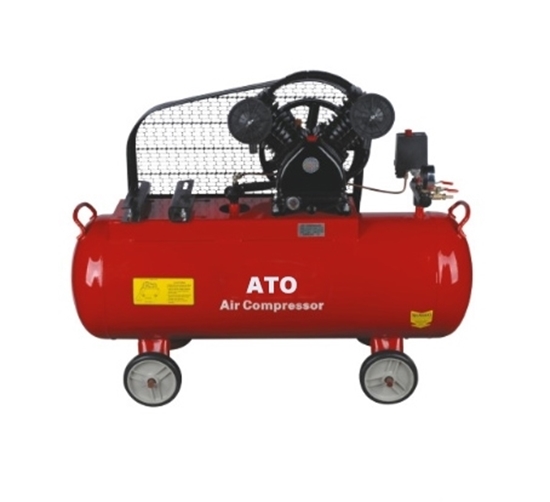

5.5 hp Belt Driven Air Compressor Features
- Powered by 5.5 hp (4 kW), 120V AC, 60Hz single motor belt driven air compressor
- 11 gal., 16 gal., 21 gal., 24 gal. tank capacities are optional
- Ball bearings on each side of the crankshaft for smooth running and durability
- High reliable and durable valve, strong aluminum alloy body
- Portable with small size, low cost, oil save and energy saving
16 Gal. Air Compressor Description
Model |
0128G |
Size |
93 (L)*38 (W)*78 (H) CM |
Type of the Air Compressor |
Belt driven |
Tank Capacity |
16 Gal. (Can be customized) |
Motor Power |
5.5 hp, 4 kW (Can be customized) |
Power Source |
AC Power |
Voltage |
120V, 60Hz (Can be customized) |
Air Delivery |
184L/Min, 7.1 CFM |
Maximum Pressure |
8 Bar, 125 PSI |
maximum Speed |
1050 rpm |
Certification |
CE, ROHS, CCC, ISO |
Noise Level |
with 80DB |
Warranty |
1 Year |
Cooling Method |
Air Cooling |
Choose Your Air Compressor
You could choose different types of 5.5 hp belt-driven air compressor pumps with different capacities of air tanks.
Model |
Gal. |
kW |
HP |
Cylinder |
L/min |
RPM |
PSI |
CFM |
Bar |
Size (cm) |
00368G |
11 |
4 |
5.5 |
51x1 |
108 |
1400 |
115 |
3.8 |
8 |
75*31*65 |
0128G |
16 |
4 |
5.5 |
51x2 |
184 |
1050 |
115 |
7.1 |
8 |
93*38*78 |
0258G |
21 |
4 |
5.5 |
65x2 |
200 |
1400 |
115 |
14.5 |
8 |
102*58*75 |
0368G |
24 |
4 |
5.5 |
65x3 |
501 |
1050 |
115 |
17.6 |
8 |
122*43*89 |
Note: Tell us your application needs, we can customize the air compressor to meet your precise power, tank capacity, air delivery and rated voltage requirements.
Air Compressor Applications
Tips: Cooling method of air compressor
Whether it is a piston air compressor or a screw air compressor, it must be cooled during use. The traditional cooling methods mainly include air cooling and water cooling. Generally, according to discharge capacity, medium and small size air compressors basically use air cooling while large, and medium size air compressors mostly water cooling.
In the process of use, how to select the cooling mode of the air compressor also needs to be based on the ambient temperature, humidity and water resources. At present, the cooling hot air of an air-cooled compressor is discharged to the outside using an axial flow fan tube. The cooling system of a water-cooled compressor is pumped through a water-cooled system. The cooling hot water discharged from the compressor is used in the operation of the compressor through the pump valve. With air cooling and water cooling methods, the heat energy generated during the operation of the compressor will be dissipated in the air and will be in a state of energy consumption during the cooling process.
