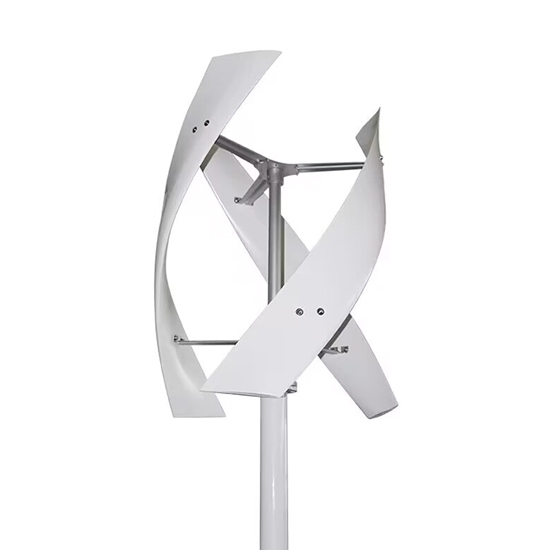

    400W Vertical Axis Wind Turbine, 12V/24V

    $875.69
    The 12V vertical wind turbine is made from high quality materials to ensure it can withstand harsh weather conditions and last for many years. The 400W vertical axis wind turbine has a unique design to generate electricity, making it an efficient and reliable wind energy solution.
    *
    SKU: ATO-VAWT-400
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    A small 24 V vertical axis wind turbine for home use, rated power at 400W. The vertical blades of the 400W wind turbine can capture the wind from any direction, which is ideal for areas where wind direction is unpredictable.

    Specification

    Model ATO-X5-400
    Rated Power 400W
    Rated Voltage 12V/24V
    With Controller Yes
    Start Up Wind Speed 2m/s
    Rated Wind Speed 12m/s
    Survival Wind Speed 50m/s
    Wind Wheel Diameter/Height 0.55m/0.75m
    Number of Blades 3
    Blades Material Nylon
    Fuselage Material Aluminum alloy
    Magnetic Steel NdFeB
    Generator Type Three-phase AC permanent magnetically suspended generators
    Controller System Electromagnetic brakes
    Speed Regulation 360° Automatically Adjust Windard
    Installation Flange DN20
    Degree of protection IP54
    Gross Weight 11kg
    Top Net Weight 12kg
    Dimension 860*380*200mm


    Dimension
    (Unit: mm)

    300-400W axis wind turbine dimension

    Applications

    The battery is charged by the wind turbine and solar panels through the controller, and the DC output port of the controller directly supplies power to the DC load. On days without wind or light, the power output by the wind turbine and solar panels is not enough to charge the battery, which can cause the battery to be under-voltage. In this case, the controller output dry contact control signal automatically switches to the grid power to supply the load.

    Vertical axis wind turbine application

    Tips: Method of installing a vertical wind turbine

    1. Open the package of the vertical axis wind turbine you have received, check for bumps and try to pivot the spiral blades, they turn easily without obstruction. If there are any problems, please return to us in time.
    2. Connect the three AC wires of the flange of the vertical axis wind turbine to the transmission cable, with each pair of wires glued to a length of not less than 30 mm and taped at the 100 mm end of the connection.
    3. Align the flange holes of the vertical axis wind turbine with the flange holes on the tower pole, apply flat washers and elastic rings and tighten the locking screws. After the sex ring, tighten the locking nut.
    4. Connect the cable from the vertical axis wind turbine to the control and connect the battery to the control before wiring.
