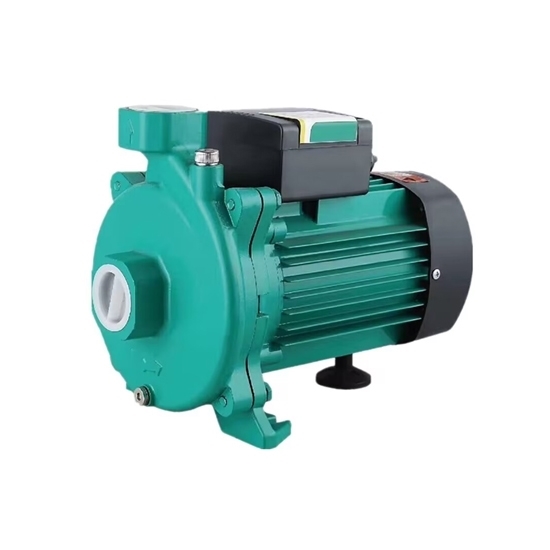

400W (0.5 hp) Hot Water Circulation Booster Pump

1/2 hp domestic hot water circulation pump for sale online. It is a 400W booster pump, with 220V 50Hz power supply, 20m lift, 38L/min rated flow, and DN25 pipe diameter, used for maintaining a continuous and efficient flow of hot or cold water in closed loop piping systems.

Specifications

• Model: ATO-PUN-201EH
• Power Supply: 220V 50Hz
• Rated Power: 200W
• Maximum Power: 400W (≈0.5 hp)
• Maximum Current: 1.5A
• Maximum Lift: 20m
• Maximum Flow: 90L/min
• Rated Lift: 10m
• Rated Flow: 38L/min
• Pipe Diameter: DN25
• Medium Temperature: 0℃~130℃
• Weight: 7.15kg

Dimension

Details

Applications

Tips: What is a hot and cold water booster pump?

A hot and cold water booster pump is a device designed to increase water pressure in both hot and cold water systems. In buildings where water pressure is insufficient for various reasons, such as low municipal supply or multi-story structures, these pumps enhance the flow of water to meet the demands of appliances, fixtures, and users.

The hot and cold water booster pump typically consists of an electric motor and a pump unit. It is installed in the water supply line to boost pressure for improved performance of showers, faucets, and other water-related appliances. In hot water systems, these pumps are often used to ensure consistent and adequate water pressure, especially in buildings with multiple floors. This type of pump is essential for maintaining optimal water flow and pressure throughout a plumbing system, enhancing overall efficiency and user experience.
