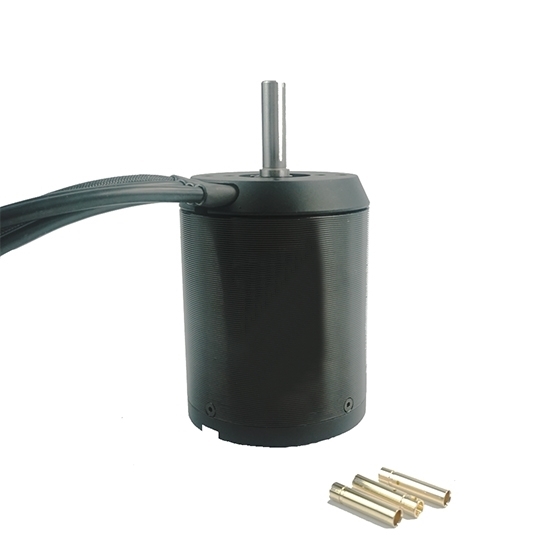

190KV outrunner brushless DC motor for electric skateboard/longboard/mountainboard. Maximum power 4kW, input voltage 4-13S (DC 14-48V), max current 95Amps. Combined with BLDC motor ESC driver for better speed control.
Specification
Model |
ATO-6384 |
Max Power |
4000W (5 hp) |
Rotation Speed KV (RPM/V) |
190KV |
Max Current |
95A |
Max Input Voltage* |
DC 14-48V |
Max Torque |
9 N.m |
Recommend ESC |
FSESC6.6 60A (3S-12S) |
Motor Length |
84mm |
Motor Diameter |
63mm |
Weight |
1000g |
Motor Resistance |
0.05 ohm |
SHAFT |
Diameter: 8mm, 10mm Length: 30mm, 25mm keyway slot: 3*3*14mm |
Motor Wire |
12AWG wire with 4.0mm Gold Bullet Connector Male.customizable 5.5mm gold plated connector |
Wire Configuration |
Blue = A Black = B Yellow = C |
Stator |
0.2mm thickness lamination japan steel |
Magnet |
N42SH high temp curve magnet |
Number of poles |
14 |
Sensor Wire |
Standard RC Sensor Wire JST-ZH 6pin 1.5mm/2mm pitch |
Shipping Package |
ATO-6384 motor*1, banana head 4.0mm female head*3 |
*Note: The motor is powered by 4-13S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

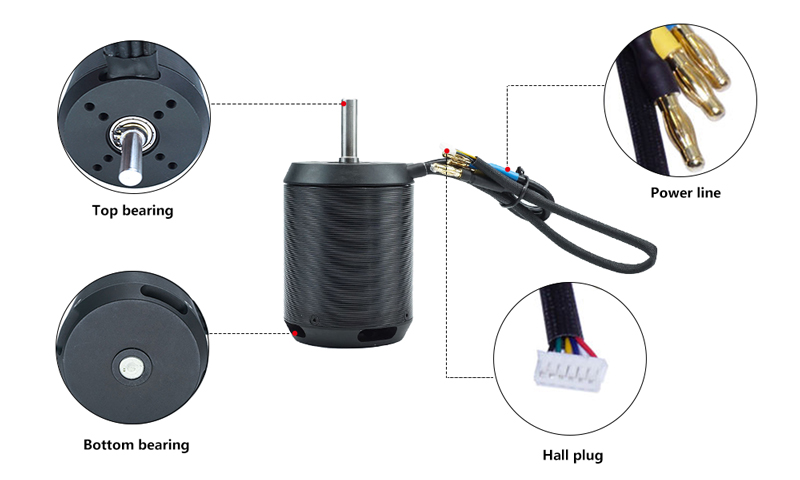

4000W Outrunner Brushless DC Motor Details

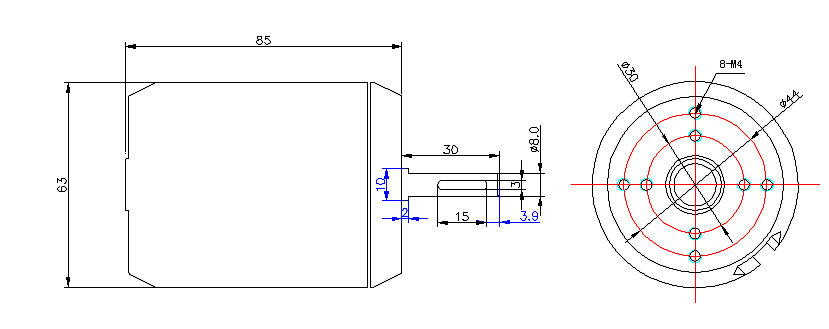

8mm Shaft Brushless DC Motor Dimensions Drawing (Unit: mm)

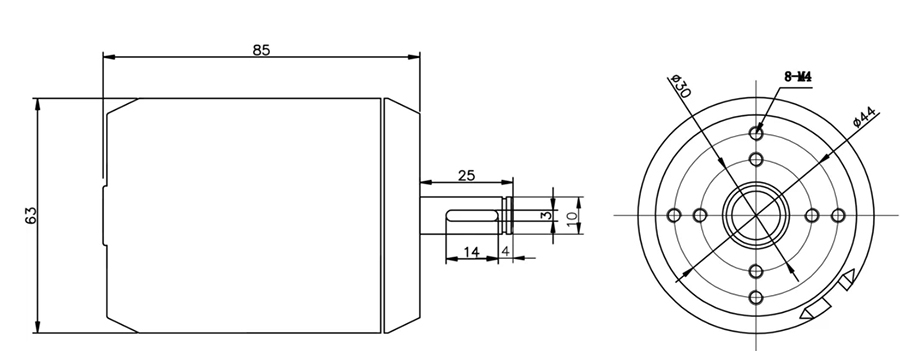

10mm Shaft Brushless DC Motor Dimensions Drawing (Unit: mm)
ESC (Electronic Speed Controller) Selection for E-Board BLDC Motor
- The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
- Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
- The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
- If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.
ESC (Electronic Speed Controller) Specification
Model |
Current Value |
Number of Batteries (Input Voltage) |
FSESC 4.12 |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
FSESC 4.20 |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
VESC 6.6 mini dual drive |
1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
VESC6.6 integrated switch dual drive version |
1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
FSESC6.6 VESC6.6 single drive integration* |
Continuous 60A, peak 150A |
3S-12S (8V-60V) |
VESC4 dual drive integration |
50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel |
3S-12S (8V-60V) |
ODESC3.6 single drive/dual drive |
50A continuous 1-channel, peak 120A 1-channel |
3S-12S (8V-60V) |
VESC6 dual drive |
1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
Single drive V6 75200 |
Continuous 200A |
3S-12S (8V-60V) |
Single drive VESC6 waterproof version |
Continuous 60A, peak 150A |
3S-12S (8V-60V) |
*Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.
Tips: Why does electric skateboard use a brushless motor?
The reason why the brushless DC motor is widely used in electric skateboard is that it has the following two advantages, compared with the traditional brushed DC motor.
- Brushless DC motor has long life, maintenance-free and high reliability. In a brushed DC motor, due to the high motor speed, brushes and commutator wear quickly. Generally, brushes need to be replaced after 1000 hours of operation. In addition, the reduction gearbox is technically difficult, especially the lubrication problem of transmission gear, which is a relatively big problem in the current brush scheme. Therefore, the brush motor has problems such as high noise, low efficiency, and easy failure. Therefore, the advantages of BLDC motors are obvious.
- Brushless DC motor has high efficiency and energy saving. Generally speaking, because BLDC motor has no mechanical commutation friction loss, gear box consumption, and speed control circuit loss, the efficiency can usually be higher than 85%. However, considering the high cost performance in the actual design, in order to reduce material consumption, the general design is 76%. The efficiency of brushed DC motors is usually around 70% due to the consumption of gearboxes and overrunning clutches.
