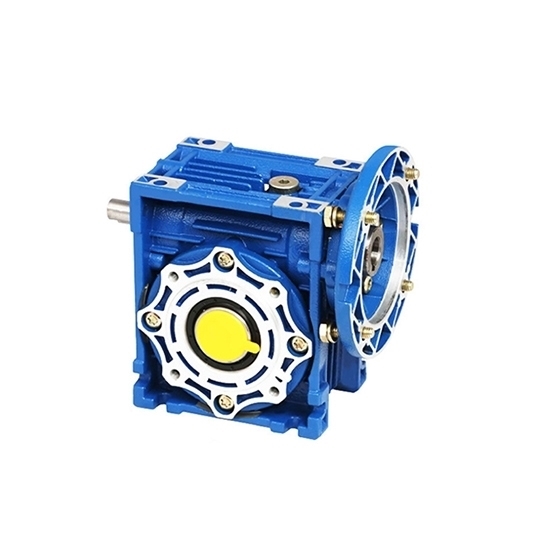

40mm Worm Gearbox, Ratio 5:1 to 100:1, 17 N.m

5 out of 5 based on 2 reviews | Write a review

$498.48

The 40mm D.C. worm gearbox has a large output torque of 17 N.m and a reduction ratio of 5:1, 10:1... 80:1, 100:1. 2087 N.m maximum torque, 47 rpm rated speed, IP65. It can be used with asynchronous motors, AC motors, stepper motors, brushless motors, etc. The standard equipped 120W-370W asynchronous motors are also sold at a low price on ATO.

Reduction Ratio *
Motor Type
Motor Voltage *
Motor Voltage *
Motor Voltage *
Motor Voltage *
Accessories

SKU: ATO-WGR40

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Buy NMRV worm gearbox reducer from ATO online store. 5:1 to 100:1 reduction ratio, 120W rated power. Purchase with flange and one-way output shaft/ bidirectional output shaft, the price is more affordable.

Specification

Model	ATO-NMRV040
Reduction ratio	5:1/ 7.5:1/ 10:1/ 15:1/ 20:1/ 25:1/ 30:1/ 40:1/ 50:1/ 60:1/ 80:1/ 100:1 (optional)
Center distance	40mm
Rated torque	17 N.m
Maximum torque	2087 N.m
Rated power	0.12 kW
Rated speed	47 rpm
Protection grade	IP65
Certification	CE
Color	Blue
Warranty	1 year
Material	Housing: Aluminum alloy Turbine: 20 Cr Worm: Tin bronze

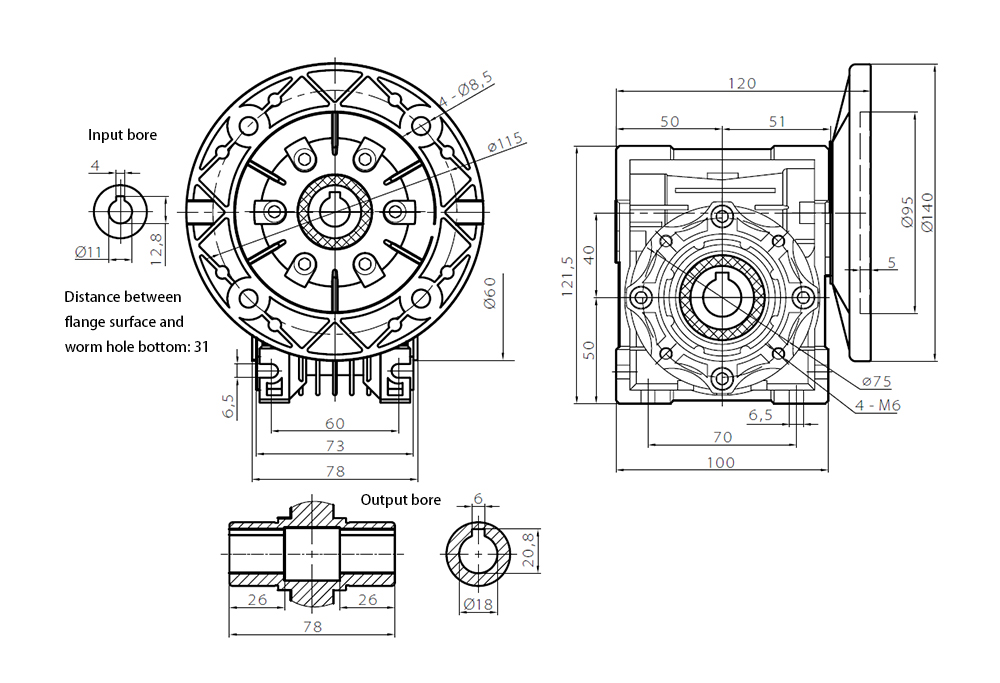

Dimention (Unit: mm)

Details

Customizable accessories

Tips: How to reduce the noise of worm gearbox?

Use smooth tooth surface. Grinding, rubbing and stone grinding can achieve ideal tooth surface roughness, or warming up in oil for a period of time can also improve the tooth surface roughness, which reduces the noise of the worm gearbox.
Choose gears with good precision. If the pitch error, tooth profile error, tooth groove deviation and tooth rib error are reduced, the noise will be reduced. Grinding the tooth surface can not only improve the accuracy of the gear, but also improve the roughness of the tooth surface. Therefore, the noise of the worm gearbox reducer can be well reduced.
Correct tooth surface contact. The implementation of tooth surface drum processing or cutting end processing to prevent single-piece contact, the noise will naturally be reduced. Proper tooth shape trimming is also effective in reducing noise.
