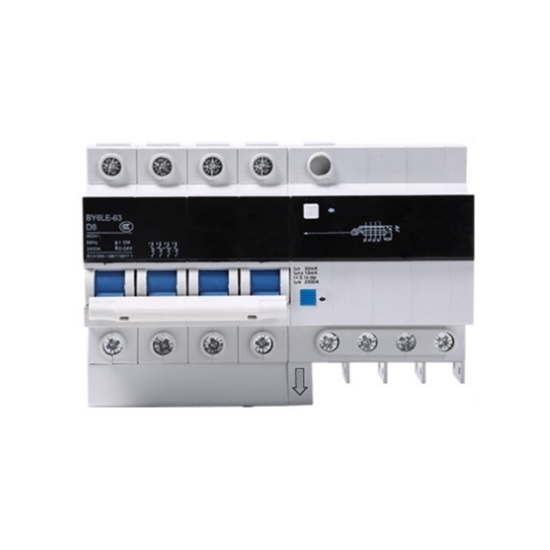

4 Pole Residual Current Circuit Breaker, 10A/16A/20A/25A/32A/40A/63A

$63.79

Cost-effective 4 pole residual current circuit breaker (RCCB) for sale, with thin copper part or thick copper part internal material, optional rated currents of 10/ 16/ 20/ 25/ 32/ 40/ 50/ 63 amps, rated frequency 50-60Hz, rated insulation voltage 400V. This RCD residual current device can prevent electric shock and protect circuits from damage due to earth faults.

Internal Material *
Dimension *
Rated Current *
Rated Current *

SKU: ATO-RCCB-4P

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Four pole residual current circuit breaker (RCCB) with overload protection can monitor the difference between live and neutral currents in a three-phase electrical system. This 10 amp ~ 63 amp RCD residual current device is used in electrical systems to protect against earth leakage faults.

Specification

Model	ATO-BY6LE-63-4P
Pole	4 Pole
Dimension (Optional)	95mm(L)118mm(W)75mm(H)	95mm(L)135mm(W)75mm(H)
Rated Current (Optional)	10A, 16A, 20A, 25A, 32A	40A, 50A, 63A
Internal Material (Optional)	Thin Copper Part or Thick Copper Part
Rated Frequency	50-60Hz
Rated Insulation Voltage	400V
Rated Impulse Withstand Voltage (KV)Uimp	4000
Rated Short-Circuit Capacity (KA)Inc	3000-6000
Rated Residual Breaking Capacity (I△m=lm)	2000
Maximum Breaking Time at Rated Residual Current	0.1s
Producible Leakage Protection Type	AC Type
Rated Residual Operating Current (I△n)	30mA
Electrical Life	10000
Mechanical Life	10000
Protection Level	IP20
Function	Short Circuit Protection, Overload Protection, Leakage Protection, Circuit Breaker Protection
Installation	35mm Rail Mounting

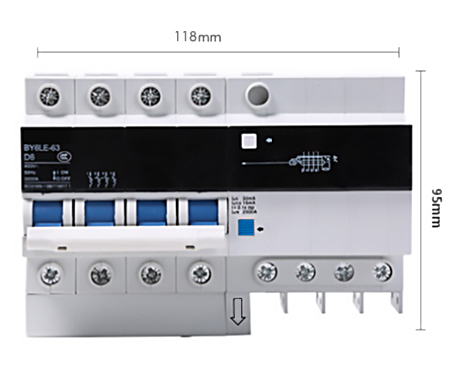

RCCB Breaker Dimension

95mm(L)*118mm(W)*75mm(H)

95mm(L)*135mm(W)*75mm(H)

Tips: Difference between RCCB and MCB breaker

An RCCB (Residual Current Circuit Breaker) and an MCB (Miniature Circuit Breaker) are both safety devices but serve different purposes.

An RCCB is designed to detect and prevent electrical leakage or ground faults, where current flows through unintended paths like a human body. When it senses a difference between the live and neutral current, indicating leakage, it trips to protect against electric shocks.

An MCB is used to protect electrical circuits from overloads and short circuits. It trips when it detects excessive current flow, preventing damage to the wiring and appliances due to overheating or faults.

In summary, an RCCB protects against electric shocks and ground faults, while an MCB protects against overloads and short circuits. They are often used together for comprehensive electrical protection.

Types of Circuit Breakers

In this video, we'll take a closer look at the meaning behind these abbreviations and explain the types of circuit breakers they represent. By understanding the different types of circuit breakers on the market, you can make an informed decision and choose the right type for your specific requirements, thereby enhancing the protection of your electrical infrastructure.

Isolator vs Circuit Breaker

Although isolators and circuit breakers have similar functions in a circuit, they are two separate entities. This video explains you the difference between the two devices in terms of working, features, operation, affordability, etc. You can choose between them based on your specific requirements.
