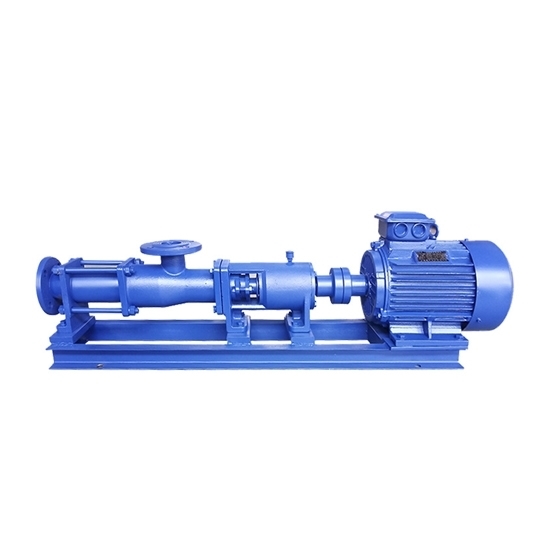

4 hp (3 kW) Screw Pump, 380V

Screw pump as a general purpose pump, flow can be according to demand, by changing the speed. Besides can transport all kinds of fluid medium, can also transport high viscous medium. The robust design of 4 hp mono screw pump allows it to maintain efficiency and reliability even in challenging operating conditions, providing consistent performance with minimal maintenance.

Features:

• Small mechanical vibration, no pulsation, stable operation.
• Besides can transport all kinds of fluid medium, can also transport high viscous medium.
• Flow is proportional to speed, with the help of the governor can realize the amount of automatic regulation.

Specification:

• Model: ATO-G30-2
• Voltage: 380V
• Power: 4 hp (3 kW)
• Flow Rate: 5 m³/h
• Pressure: 1.2 MPa
• Max Speed: 960 r/min
• NPSH: 4m
• Suction Flange Diameter: 50 mm
• Discharge Flange Diameter: 40 mm
• Max Granule Size: 2.5 mm
• Max Fibre Size: 35 mm

Structure:

Tips: How Does Screw Pump Work?

A screw pump is a type of positive displacement pump that uses two or more screws (also known as rotors) to move fluid through the pump. The screws rotate, creating a series of voids or cavities between them and the walls of the pump casing. As the screws rotate, these voids move from the suction side of the pump to the discharge side, displacing the fluid and creating flow.
