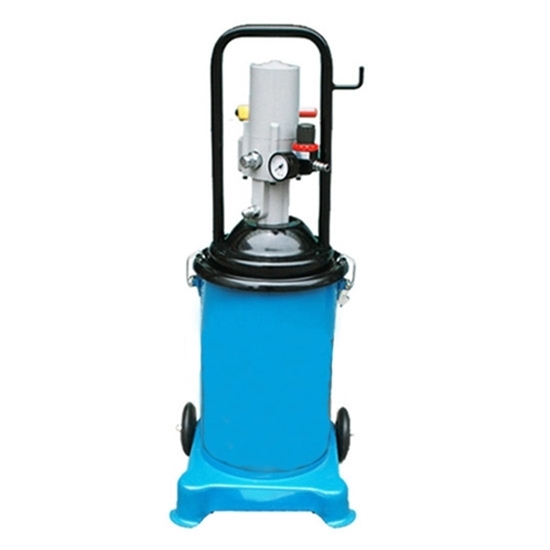

4 Gallons Pneumatic Grease Pump

Portable pneumatic grease pump equipped with four rolling wheels is easy to handle and transport. 4gal/16L air grease pump is essential professional equipment for the mechanization of oil injection.

Specification

• Model: ATO-OW-008
• Pump Ratio: 50:1
• Air Pressure: 73-145psi
• Delivery Rate: 0.2gal/min
• Grease Output Pressure: 3626-7252psi
• Capacity: 16L/4gal
• Stroke: 34mm
• Air Cylinder Diameter: 70mm
• Drum Height: 325mm
• Net Weight: 13kg
• Package Included: 1*4 Gallons Pneumatic Grease Pump, 1*Universal Grease Gun, 1*4m Grease Hose

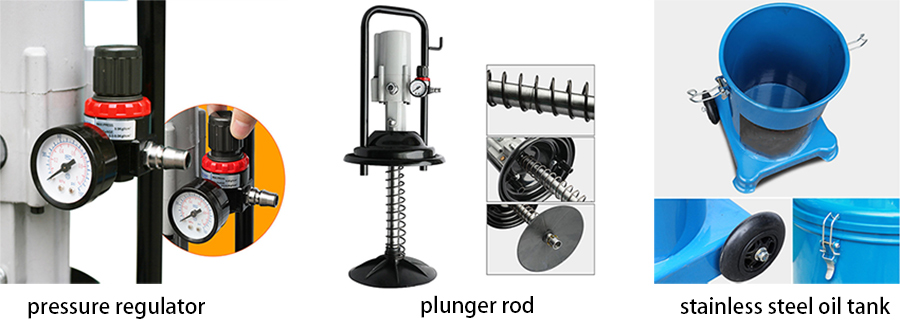

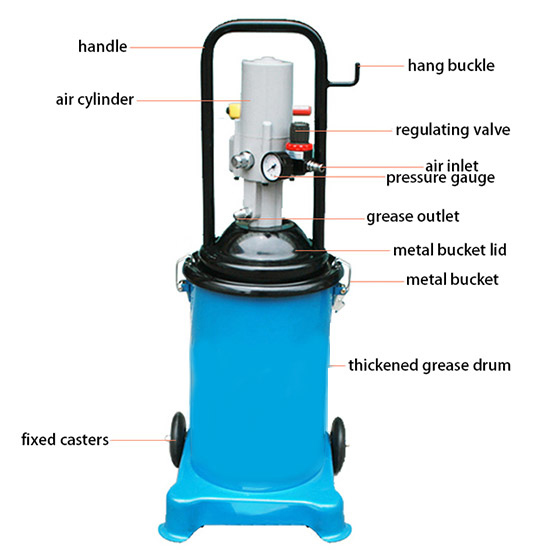

4 Gallons Pneumatic Grease Pump Details

Tips: Pneumatic grease pump vs. gear pump

A pneumatic crease pump is a grease filling device with compressed air as the driving force. The air-powered grease pump relies on the action of a pump to make the grease form high pressure and uses high pressure to fill the grease. Air operated grease pump is an indispensable grease filling equipment in the mechanized application of the oil filling process. The characteristics of the drum grease pump are safety and reliability, small air consumption, high pressure, convenient use, and high efficiency, low work intensity, and can be filled with various types of lithium-based grease oil and other relatively high viscosity oils. Air grease pump is mainly used for filling grease in cars, rolling bearings, large tractors and other various transmission equipment.

Gear pumps are mainly used to transport all kinds of lubricating liquids, the temperature is not higher than 75℃, and the viscosity is 5×10-5～1.5×10-3m2/S. Gear pumps are not suitable for transporting corrosive, hard particles or fibers, high volatility or low flash point liquids, such as gasoline and benzene.
