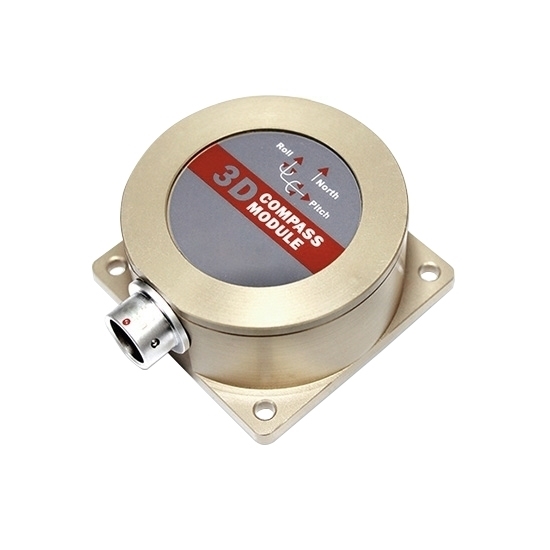

3D Electronic Compass Sensor, IP67, RS232/RS485/TTL

$566.08
3D electronic compass sensor for sale online, providing accurate three-axis magnetic field measurement with a resolution of 0.1°. Electrical compass has an IP67 protection level, is dustproof and waterproof, and operates stably within a temperature range of -40℃ to +85℃. RS232, RS485, and TTL communication interfaces can be selected for easy integration with various systems, and can be applied in industrial, automotive, outdoor applications, and more.
*
SKU: ATO-CPS-DCM302B
30-day Returns
Free Shipping
Delivery date: 6-12 days

High-precision 3D electronic compass sensor that uses a two-dimensional plane calibration algorithm. Calibration does not require three-dimensional attitude tilting, and the calibration process is completed by simply rotating the plane in place. The hard magnetic and soft magnetic calibration algorithms using imported technology enable the compass to achieve ideal measurement results through three-dimensional calibration methods even in an environment with magnetic field interference.

The electronic compass integrates a three-axis magnetic induction technology sensor, calculates the heading in real time through the central processor, and uses a three-axis accelerometer to compensate for the tilt angle in a wide range, ensuring that the compass can provide high-precision heading data even when the tilt angle is as high as ±85°.

Specification

Model ATO-DCM302B
Compass heading parameters Heading accuracy (RMS) 0.5° tilt <10°
1.0° tilt <30°
2.0° tilt <40°
2.5° tilt <70°
Resolution 0.1°
Compass inclination parameters Pitch accuracy (RMS) 0.1°  <15° (measuring range)
0.2°  <30° (measuring range)
0.3°  <60° (measuring range)
0.3°  <85° (measuring range)
Pitch tilt range ±85°
Roll accuracy 0.1°  <15° (measuring range)
0.2°  <30° (measuring range)
0.3°  <60° (measuring range)
0.3°  <85° (measuring range)
Roll tilt range ±85°
Resolution 0.1°
Tilt compensation angle range <40°
Calibration Hard iron calibration
Soft iron calibration
Magnetic field interference calibration method Plane rotates one circle (two-dimensional calibration)
Physical properties Size L60×W59×H33mm
Connectors 5 PIN aviation socket
Interface Characteristics Startup delay <50ms
Output signal RS232/RS485/TTL (optional)
Output rate 20Hz/s
Output format Binary high performance protocol
Power supply Supply voltage (Default) DC +5V
(Customized) DC 9~36V
Current (MAX) 45mA
Ideal mode 30mA
Sleep mode TBD
Environment Operating range -40℃~+85℃
Storage temperature -40℃~+100℃
Vibration resistance 2500g
Protection level IP67
Electromagnetic compatibility According to EN61000 and GBT17626
MTBF ≥40000 hours/time
Insulation resistance ≥100 megohm
Vibration resistance 10grms, 10~1000Hz
Weight ≤150g

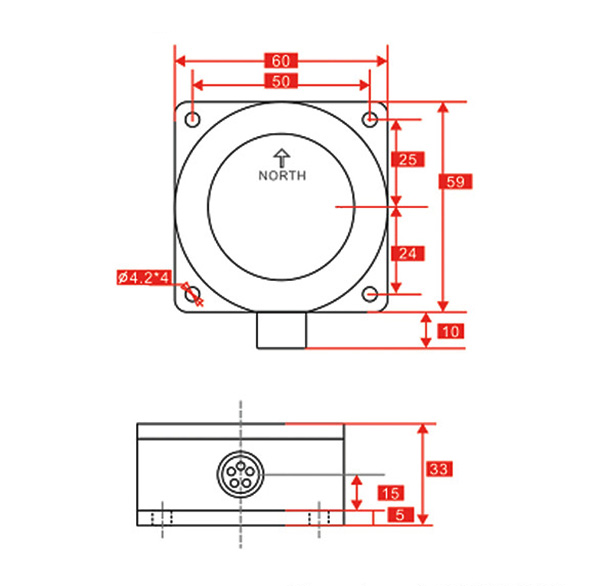

Dimension (mm)

3D electronic compass sensor dimension

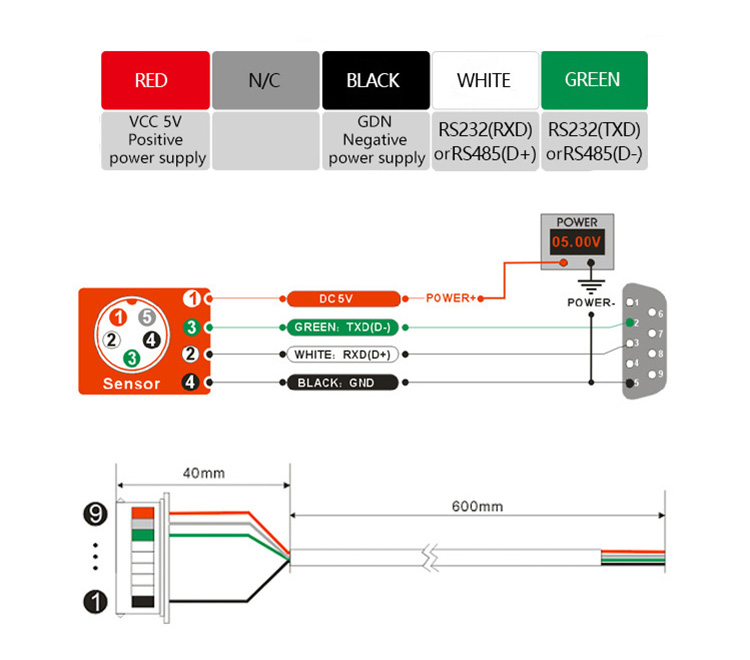

Wiring

3D electronic compass sensor wiring

Applications

Electronic compass sensor application

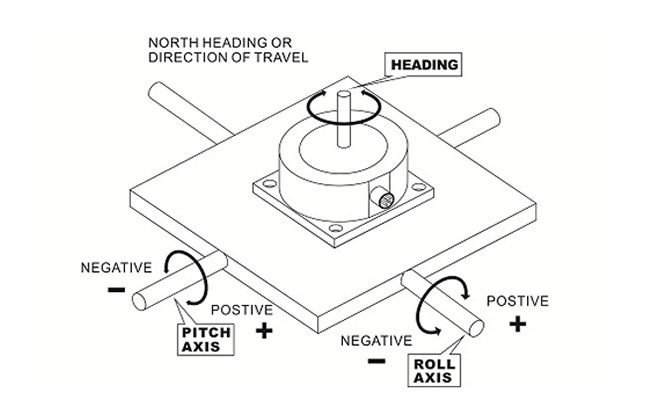

Installation direction diagram

3D electronic compass sensor installation

Tips: Installation instructions for the 3D electronic compass sensor

Since the DCM302B 3D electronic compass sensor uses the geomagnetic principle to measure azimuth, it is important to choose an installation environment with minimal magnetic interference. Please try to keep the electronic compass sensor away from iron, magnets, engines and other magnetic objects, at least 40 cm away (the specific interference distance will vary depending on the magnetic field strength). It is recommended to use M4 anti-interference screws during installation to ensure the best measurement effect. Although the DCM302B can compensate for moderate deviations in a stable magnetic environment, it cannot compensate for changing magnetic interference. Pay special attention to the magnetic field changes generated by DC wires, because changes in DC current will affect the magnetic field strength, and batteries may also become interference sources. Therefore, each installation environment requires the user to evaluate its feasibility.

The heading accuracy of the 3D electronic compass sensor can reach 0.5°~0.8°, and this accuracy has been strictly verified. The recommended test method is to install the DCM302B on a vertical aluminum (or other non-magnetic material) pole, measure the heading accuracy, and minimize external magnetic field interference. This method can reduce the compass turning radius and improve measurement accuracy. However, actual installation needs to be adjusted according to specific circumstances. For example, when installing on a vehicle, the electronic compass sensor should be mounted perpendicular to the direction of movement.
