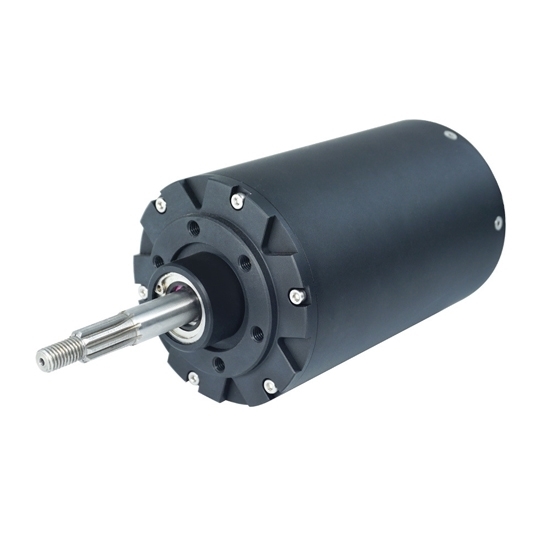

    3700W 130KV 6-20S Waterproof Brushless DC Motor, IP68

    5 out of 5 based on 1 reviews | Write a review
    $602.98
    Reasonable price and high quality waterproof brushless motor for sale online. Max power of brushless dc motor can be reach 3700W. Waterproofing a brushless motor with 24V rated voltage and 100A rated current. Waterproof performance of BLDC motor up to IP68. Waterproof BLDC motor widely used in direct-drive propeller and electric surfboard.
    SKU: ATO-BLDC-65121
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    130 KV outrunner brushless DC motor at affordable price, IP68 waterproof, max power 3700W. Waterproof BLDC motor best for surfboard, propeller, robot model and other underwater works.

    Specification:

    Model ATO-BLDC-65121
    Rated Voltage 24V
    Max Power 3700W
    Max Current 100A
    Rotation Speed KV (RPM/V) 130 KV
    Continuous Power 2000W
    Max Torque 5.5 N.m
    Line Length 8 AWG*500 mm
    Insulation Voltage AC 500V
    Battery Model 6-20S
    Shaft φ12*M8
    Connecting Plug 8 mm plug
    Waterproof Level IP68
    Weight 1.62 kg


    Dimension:

    3700W waterproof BLDC motor dimension

    ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor

    • The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
    • Brushless DC motor speed calculation formula: battery voltage * motor KV value.
      Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
    • The limit speed of V4 series ESC is 60000 ERPM.
      The limit speed of V6 series ESC is 15000 OERPM.
    • If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.

    ESC (Electronic Speed Controller) Specification

    Model Current Value Number of Batteries (Input Voltage)
    FSESC 4.12 Continuous 50A, peak 240A 3S-12S (8V-60V)
    FSESC 4.20* Continuous 50A, peak 240A 3S-12S (8V-60V)
    VESC 6.6 mini dual drive 1-channel 100A continuous, 2-channel 200A continuous
    1-channel peak 400A, 2-channel total peak 800A
    3S-12S (8V-60V)
    VESC6.6 integrated switch dual drive version 1-channel 100A continuous, 2-channel 200A continuous
    1-channel peak 400A, 2-channel total peak 800A
    3S-12S (8V-60V)
    FSESC6.6 VESC6.6 single drive integration Continuous 60A, peak 150A 3S-12S (8V-60V)
    VESC4 dual drive integration 50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel 3S-12S (8V-60V)
    ODESC3.6 single drive/dual drive 50A continuous 1-channel, peak 120A 1-channel 3S-12S (8V-60V)
    VESC6 dual drive 1-channel 100A continuous, 2-channel 200A continuous
    1-channel peak 400A, 2-channel total peak 800A
    3S-12S (8V-60V)
    Single drive V6 75200 Continuous 200A 3S-12S (8V-60V)
    Single drive VESC6 waterproof version Continuous 60A, peak 150A 3S-12S (8V-60V)

    *Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

    Tips: Why Use Temperature Sensing Wire on the Waterproof BLDC Motor?

    Temperature sensing line is one of the hot runner accessories, which plays an important role. General temperature sensing wire is composed of steel wire insulated with heat sensitive material. Temperature sensing wire is commonly known as "thermocouple", there are many types, hot runner thermocouple has the standard J type and K type two. But the basic principle is to use the corresponding relationship of a material to the change of temperature, through two different components of the material conductor to form a closed loop, when there is a temperature gradient at both ends. A current will flow through the loop, and there will be an electromotive force between the two ends, a thermoelectric force, which is called the "Seebeck effect".
