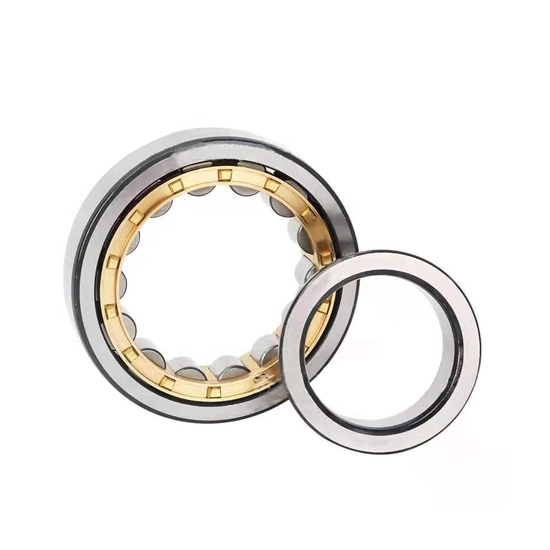

35mm Single Row Cylindrical Roller Bearing

35mm Single Row Cylindrical Roller Bearing

$86.33

High-speed single row cylindrical roller bearing comes with an inner diameter of 35mm, an outer diameter of 72mm, and a width of 17mm, P5 accuracy class. The 35mm cylindrical roller bearing has uniform rotation speed, low noise and high efficiency.

SKU: ATO-CRB-35

This product has a minimum quantity of 2

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

ATO 35mm cylindrical roller bearing with the accuracy class P5, oil lubrication limit speed of 7500 rpm, grease lubrication limit speed of 9500 rpm. The cylindrical roller bearing is made of steel, with a smooth surface and a comfortable handle.

Specification

Model: ATO-NJ207EM
Inner diameter: 35mm
Outer diameter: 72mm
Width: 17mm
Accuracy class: P5
Oil lubrication limit speed: 7500 rpm
Grease lubrication limit speed: 9500 rpm
Cr: 46.5 kN
Cor: 48 kN
Bearing material: Bearing steel

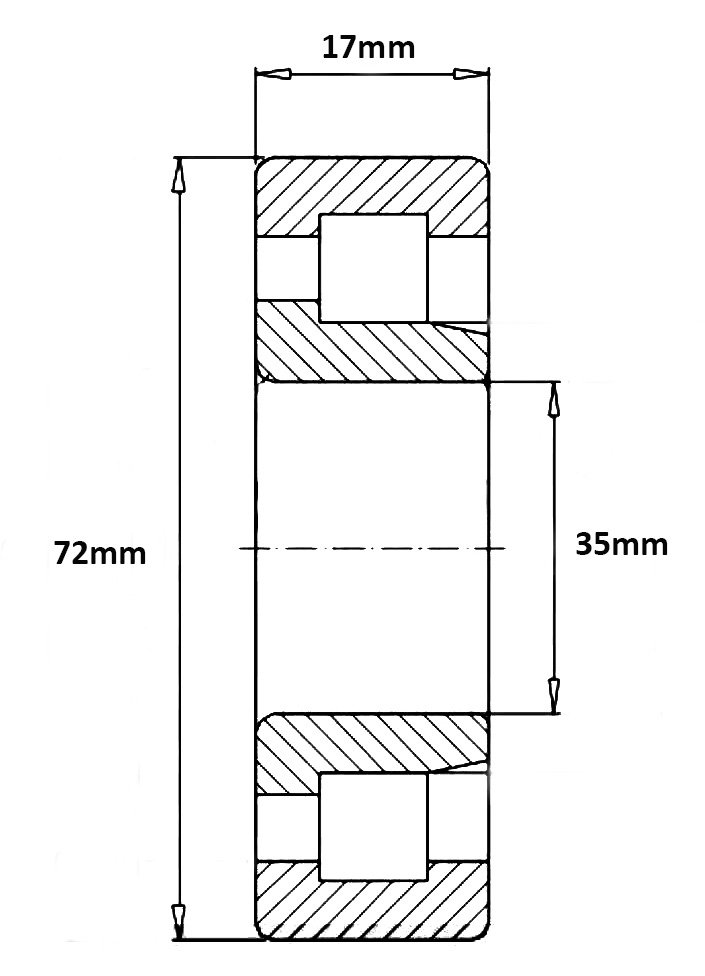

Dimension (mm)

Dimension of 35mm cylindrical roller bearing

Application

Cylindrical roller bearing application

Tips: What is the difference between cylindrical roller bearing and ball bearing?

A roller bearing is a cylindrical unit that is used to provide low-friction movement for a bushing or bearing block. A ball bearing is a spherical unit that accomplishes the same objective as a roller bearing. The real difference has to do with the contact surface between the bearing and the rail.
