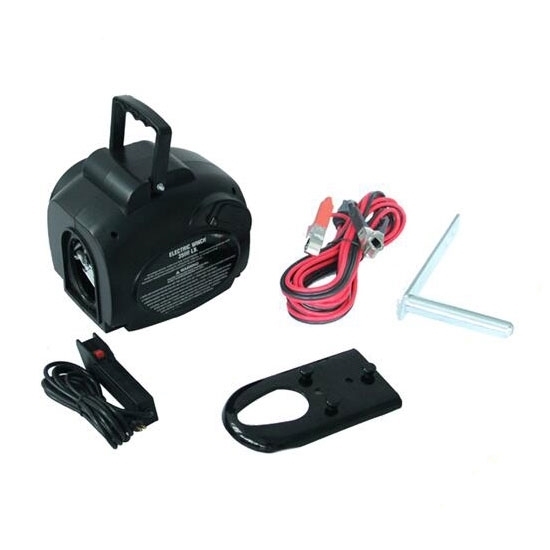

    3500 lbs 12V Electric Boat Trailer Winch

    5 out of 5 based on 3 reviews | Write a review
    $487.99
    12V DC electric boat winch is used for loading and unloading a boat from the trailer. Portable electric power winch can haul 3500 lbs boat and other heavy vehicles easily. Comes with 0.54hp (400W) motor and wired remote control.
    SKU: ATO-WINCH-B3500
    30-day Returns
    Free Shipping
    Delivery date: 10-20 days

    Portable electric trailer winch is designed to load your boats and vehicles onto trailers quickly and easily. Buy ATO electric boat trailer winch kit helping you avoid those embarrassing moments at the ramp.

    Feature

    • Electric boat winch is portable power trailer winch for pulling boats, stuck vehicles and other heavy items.
    • With powerful 3500 lbs pulling capacity.
    • 12V DC powered for convenient use without extension cords or small gas engines.
    • Built-in carrying handle and quick-attach mounting plate.

    Specification

    Model ATO-B3500LB
    Single Line Rated Pull 3500 lbs (1588kgs)
    Voltage 12V DC
    Motor 0.54hp (400W)
    Gearing Gear Gearshift
    Drum Speed 1.2m/min
    Drum Size (Dia x L) Ø25mm x 82mm
    Wire Rope Ø4.8mm x 9.2m
    Remote Switch Cable Length 3m (10 ft.)
    Electric Cable Length 3m (10 ft.)
    Pulley Block Optional
    Overall Dimensions (L x W x H) 266.5 x 256.5 x 216.5mm
    Packing Size 580 x 400 x 280mm
    Protection Grade IP67
    Gross Weight 24kg
    Net Weight 22kg

    Package Included

    1 1 x 3500 lbs Electric Boat Winch
    2 1 x Clevis hook
    3 1 x Wired remote controller
    4 1 x Universal mounting plate
    5 1 x Winch cable
    6 1 x Set of bolts
    7 1 x User manual

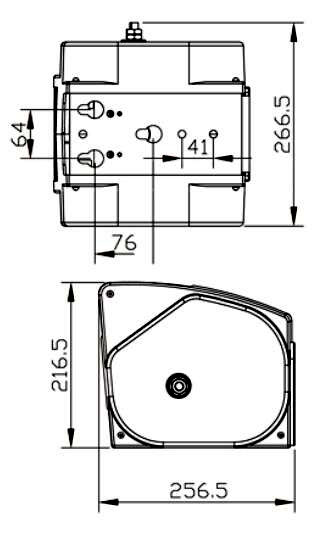

    Dimensions (Unit: mm)

    Dimensions of 3500 lbs 12V Electric Boat Trailer Winch

    Tips: How often to maintain electric boat trailer winch

    The daily maintenance of electric boat winch should be carried out every time the sailboat returns to port, and the process is relatively simple. The outside of the electric boat trailer winch should be cleaned with fresh water and dried with a cloth. In addition, non-abrasive cleaning agents should be used occasionally to remove dirt residues on the surface. Avoid contacting the teak cleaner with the electric winch when cleaning the deck, because the former will corrode the winch and cause discoloration.

    The electric boat winch should be maintained 2-3 times during the active sailing season. According to the frequency and intensity of the sailboat, the frequency of maintenance should be matched, but even if it is not used for a whole year, it should be carried out at least once. If it is used in a seawater environment, the frequency of maintenance required for the electric winch needs to be increased.
