2 Position 32A Rotary Switch, 4 Pole

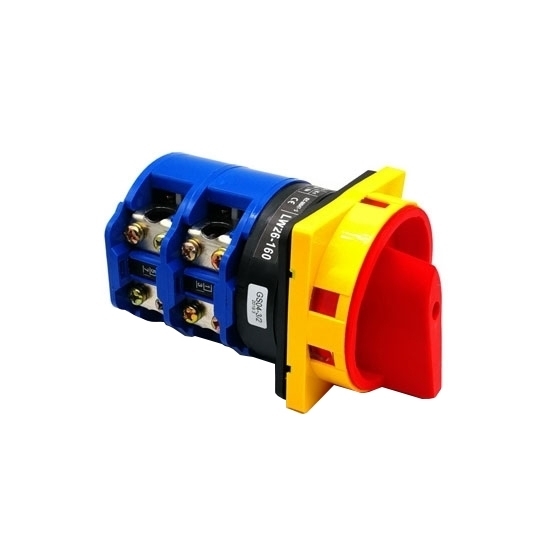

2 position cam switch for sale, AC 50Hz, 4 pole, rated current 32A, rated voltage 440V, rated power 15 kW, with high temperature resistance, rotating design and long service life.

Specification:

Dimensions (Unit=mm)
32A 4 Pole M2 Panel Diagram

Conditions of Use

1. The ambient air temperature does not exceed +40 ° C, and the average temperature within 24 hours does not exceed 35 ° C.
2. The lower limit of ambient air temperature does not exceed -5 °C.
3. When the maximum temperature is +40 °C, the relative humidity of the air does not exceed 50%. When the temperature is low, high relative humidity can be allowed, for example, 90% at 20 °C. Special measures should be taken for condensation that occasionally occurs with temperature changes.
4. The surrounding environment should be clean, free of flammable and flammable hazardous materials, no gas sufficient to damage insulation and metal, no conductive dust.

Tips: Rotary switch wiring method

Take the automatic transfer switch as an example to introduce the wiring method of the transfer switch. The automatic transfer switch has four gear positions: manual, automatic, bypass and stop. The wiring mode and wiring object of each gear position are different. Facing the switch, it is divided into four aspects: left and right, and the rear of the switch panel. In the place where the wiring is made, the left and right and the upper and lower sides are first divided into groups, and the wiring is performed by grouping the lines.
