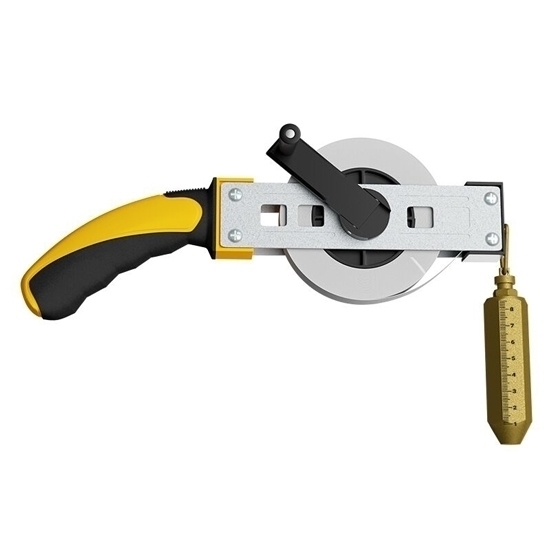

30m Oil Tank Gauge Tape

To use the oil tank measuring tape, the tape is lowered into the tank until it touches the bottom. Oil gauging tape ruler frame aluminum alloy material, long service life.

Features:

• Solid explosion-proof, making the oil gauging safe to use.
• Strong and durable, making the service life of the tape longer.
• The anchor can be rotated arbitrarily to prevent the tape from spiraling.
• Adopts with solid brass anchor and aluminum alloy rust-proof ruler frame.

Specification:

• Model: OTGT-30
• Length: 30m
• Tape Material: stainless steel
• Anchor Head Material: Brass
• Anchor Head Diameter: 20mm
• Dipstick Length: 290mm
• Net Weight: 1070g

Dimension:

Application:

Tips: What are the Components of Oil Tank Gauge Tape?

When it comes to the construction of oil gauging tape, it's pretty simple. The gauging tape is composed of a handle, a ruler frame, a crank handle, a ruler, a lead, a lock, a bracket and a connector. The dipstick scales towards the handle. The locking device uses the locking switch, pin and spring to position the lock column of the measuring stick. The oil scraper is suspended on the fixed pulley of the ruler frame. The oil scraper passes through the felt of the oil scraper to clean the oil attached when measuring.
