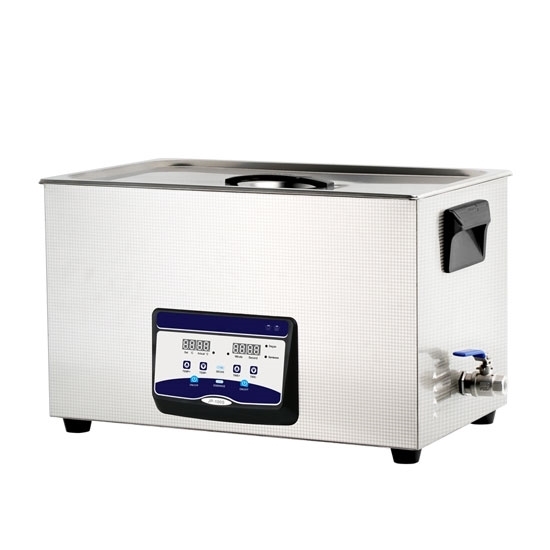

30L Ultrasonic Cleaner for Car Parts/Hardware

Features

• Stainless steel tank, high durability and long service life.
• Large capacity tank holds 30 litre volume, capable of cleaning many items at one time.
• Ultrasonice cleaning machine has digital timer control, 0-30min adjustable.
• With digital heating function range of 20°C ~ 80°C, helpful to remove the oil and wax.
• Degas function to prevent the items from oxidation.
• Dual ultrasonic power 300W/600W to meet different cleaning requirements.
• Ultrasonic cleaner comes with stainless steel basket to keep the items secure.
• Using only tap water, or industrial alcohol and solvent cleaner for higher cleaning requirement.
• Adopting industrial control chip microcontroller, flexible circuit board control, safer and more stable.

Specification

Applications

• Jewelry Industry: Jewelry, diamond, gold, silver products
• Machinery: Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools
• Electronics: PCB board, electronic parts, TV parts, computer parts
• Auto Industry: Engine parts, gear box, shock absorber, auto nozzle, cylinder, valve
• Dental& Medical: Dental tools, medical tools, injector, surgery tools, dropper, glass container
• Plating& painting: Polishing parts, SUS cutter, tableware, plating
• Food industry: Oven tray, boiler, bottles, bottle cap, filters
• Optical& watch maker: Optical lens, eyeglass, metal, gold, jewelry, diamond, watch band, watch cover, watch hand
• Textile: Spinneret plate, rubber parts, plastic molds, toy
• Others: Seal, flapper, coins, pottery, bank card, IGBT

Tips: Common Problems of Ultrasonic Cleaner

1. The voltage regulator is damaged.
Analysis: voltage regulator tube damage is generally caused by the starting of ultrasonic cleaner after the small power tube resistance value or short circuit. Its own is rarely damaged.
Detection and solution: Measured with a multimeter diode gears, the positive resistance around 70 Ω, the reverse is ∞. If the numerical deviation is too large or the positive resistance is also infinity, replace with a new regulator tube.

2. Inductance, isolation transformer damage.
Analysis: The ultrasonic cleaner works for a long time, and inductance / transformer belongs to the heat dissipation components, they may melt and burn down due to too high temperature, causing a short circuit.
Detection and solution: In most cases, the burn out traces of inductance / transformer can intuitively see, and new devices should be replaced.

3. Damage of control board (adjustable ultrasonic cleaner).
Analysis: The ultrasonic cleaning machine works continuously for a long time, which is related to the aging of components, and sometimes it will penetrate into the cleaning liquid.
Detection and solution: When the ultrasonic cleaner is not working, disconnect the control board from the main board. Power on the motherboard. If the ultrasonic cleaner works, it means the control board is damaged and needs to be replaced.
