Waterproof brushless DC motor for sale, matching ESC driver is provided for selection. Power 3kW, power supply batteries 8-12S. IP68 inrunner BLDC motor is an underwater small motor, which is wide used in electric surfboard, propeller, robot model, booster, hydro and other submersible equipment.
Specification
Model |
ATO-65111 |
ESC Controller Model |
Single drive V6 75200 (Click it to see more specs) |
Max Power |
3000W (4 hp) |
Continuous Rated Power |
1500W |
Rotation Speed KV (RPM/V) |
160KV |
Max Spin Speed |
8064 rpm |
Input Voltage Range |
8-12S (33.6-50.4V) |
Resistance |
0.095Ω |
Motor Stator Slot |
12 |
Shaft Diameter |
10mm |
Motor Pole |
6pcs, 3 pairs |
Maximum Load Current |
70A |
Continuous Rated Current |
30A |
No Load Current |
1.7A at 42V |
Motor Dimension |
66*111mm |
Waterproof Grade |
IP68 |
Motor Wire |
12AWG x 1500mm |
Weight |
1.4kg |
Packing Included |
1 x Waterproof brushless DC motor 1 x Propeller |
*Note: The motor is powered by 14S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.
3000W Outrunner Brushless DC Motor Details

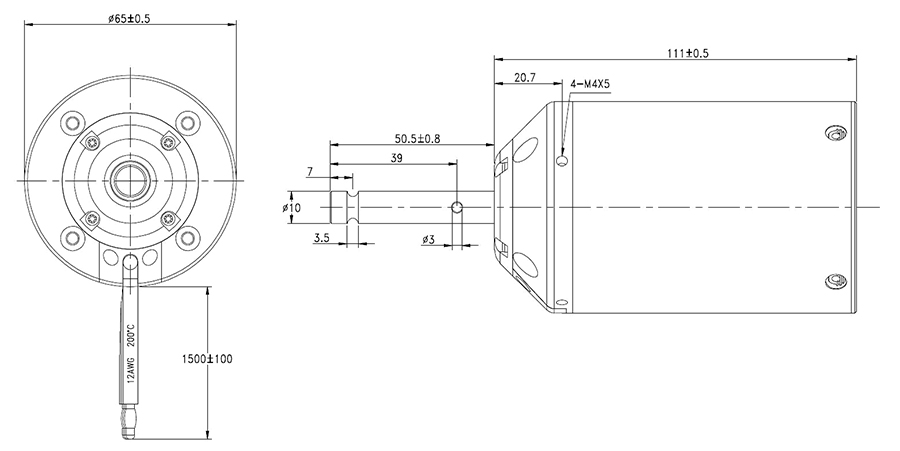

Waterproof Brushless DC Motor Dimensions Drawing (Unit: mm)
ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor
- The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
- Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
- The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
- If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.
ESC (Electronic Speed Controller) Specification
Model |
Current Value |
Number of Batteries (Input Voltage) |
FSESC 4.12 |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
FSESC 4.20 |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
VESC 6.6 mini dual drive |
1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
VESC6.6 integrated switch dual drive version |
1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
FSESC6.6 VESC6.6 single drive integration |
Continuous 60A, peak 150A |
3S-12S (8V-60V) |
VESC4 dual drive integration |
50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel |
3S-12S (8V-60V) |
ODESC3.6 single drive/dual drive |
50A continuous 1-channel, peak 120A 1-channel |
3S-12S (8V-60V) |
VESC6 dual drive |
1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
Single drive V6 75200* |
Continuous 200A |
3S-12S (8V-60V) |
Single drive VESC6 waterproof version |
Continuous 60A, peak 150A |
3S-12S (8V-60V) |
*Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.
Tips: Airtightness and waterproof detection for brushless DC motor housing.
Brushless DC motor housing is an important part of the motor product. The main function of shell is to fix the rotor shaft, and to protect the motor from rainwater and other liquids from entering the motor to cause a short circuit. In a humid environment, normal motor housing materials are easily corroded and rusted under the action of water. Waterproof performance of BLDC motors depends largely on the shell. After the brushless DC motor is corroded by water, it will be unstable or the whole machine will be scrapped, so the waterproof shell of a motor is very important. The airtightness of the motor housing is determined by air tightness testing.
The air-tightness and waterproof detection of brushless DC motor shell can be realized by a dedicated testing device. Parameters of the airtightness and waterproof testing equipment of the motor housing can be set according to the requirements. Due to the particularity of motor shell, it is necessary to customize the corresponding special mold for air tightness and waterproof testing. Put the waterproof BLDC motor into the mold and test it by inflating. The airtightness and waterproof testing equipment of the motor shell uses compressed air, which can achieve rapid testing.
