    30 ton Hydraulic Bottle Jack

    5 out of 5 based on 1 reviews | Write a review
    $271.12
    Low cost 30 ton hydraulic jack for sale online. The provided bottle jack uses hydraulic power to lift heavy loads, 100mm stroke, portability, flexibility and big jacking force, commonly used in electric power, chemical industry, steel, machinery and so on.
    *
    SKU: ATO-HBJ-30
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Get a bottle jack at low cost. It is designed for lifting objects efficiently and safely. Smaller size and enough capacity, portability, flexibility and big jacking force. 30 ton hydraulic bottle jack works with a hydraulic pump well, suitable for a variety of environments.

    Features

    • Hydraulic bottle jack with 30 ton capacity is designed for lifting heavy loads.
    • Blackening of the plunger surface to protect the using of the longevity of the product.
    • The plunger has the function of retracting automatically.
    • The joint of the hydraulic bottle jack adopts a threader ZG3/8" fast connector, thread locking, and compact structure.
    • 30 ton hydraulic jack is suitable for a variety of environments, commonly used in electric power, chemical industry, steel, machinery, industry and so on.

    Specifications

    Hydraulic Bottle Jack Model ATO-FCY-30100
    Tonnage 30 ton
    Self Height 162mm
    Stroke 100mm
    Outer Diameter 104mm
    Inner Diameter 60mm
    Weight 9.5kg
    Effective Area 33.16cm
    Matched Hydraulic Pump CP-700
    Matched Hydraulic Jack Pump Model ATO-CP-700
    High Pressure 700kg/cm2
    Low Pressure 20kg/cm2
    High Pressure Flow 2.3CC
    Oil Storage Capacity 900CC
    Low Pressure Flow 13CC
    Weight 11kg

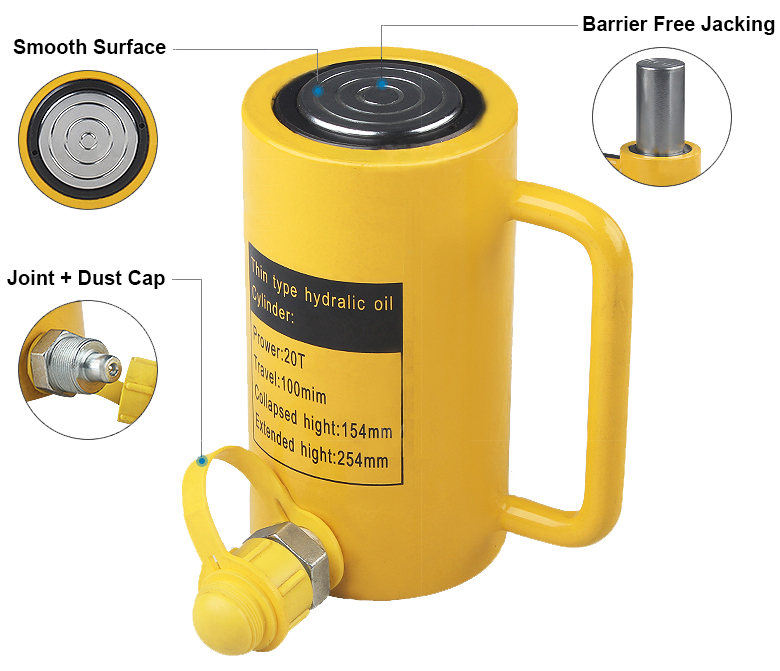

    Details

    Hydraulic jack details

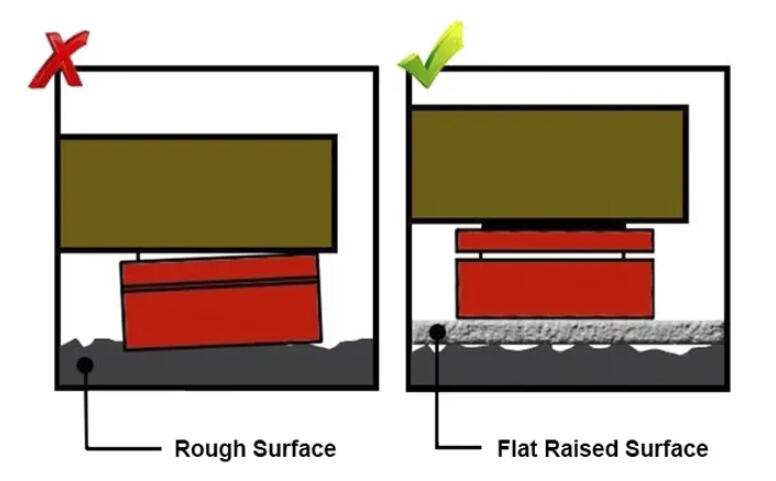

    *Notes

    • This hydraulic jack is not recommended for cars.
    • In order to operate correctly all cylinders need to be connected to a solid lifting surface.
    • Cylinder damage can result from the use of cylinders on sandy, earthen or loose surfaces.Notes of hydraulic jacks

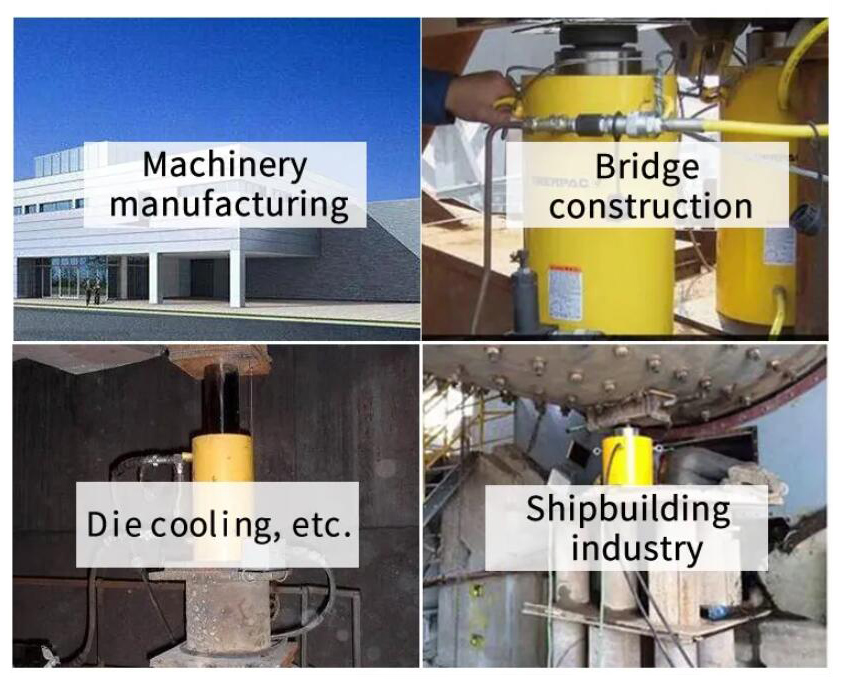

    Applications

    At present, 10 to 200 ton hydraulic jacks are widely used in power maintenance, bridge maintenance, heavy lifting, static pile pressing, foundation settlement and bridge, especially in road and railway construction, mechanical adjustment, and equipment dismantling.

    Hydraulic jack applications

    Tips: What is a hydraulic jack used for?

    10 to 200 ton portable hydraulic jack with a smaller size, greater working capacity, flexibility and big jacking force, used for lifting in machinery manufacturing, bridge construction, die cooling, shipbuilding industry, etc.

    Hydraulic bottle jack dimensions

    SKU Tonnage (t) Self Height (mm) Stroke (mm) Outer Diameter (mm) Inner Diameter (mm) Weight (kg)
    ATO-HBJ-10 10 156 100 63 38 3.5
    ATO-HBJ-20 20 156 100 84 50 6.2
    ATO-HBJ-30 30 162 100 104 60 9.6
    ATO-HBJ-50 50 162 100 128 80 12.6
    ATO-HBJ-100 100 172 100 178 110 26.5
    ATO-HBJ-150 150 180 100 205 135 50
    ATO-HBJ-200 200 202 100 238 160 65
