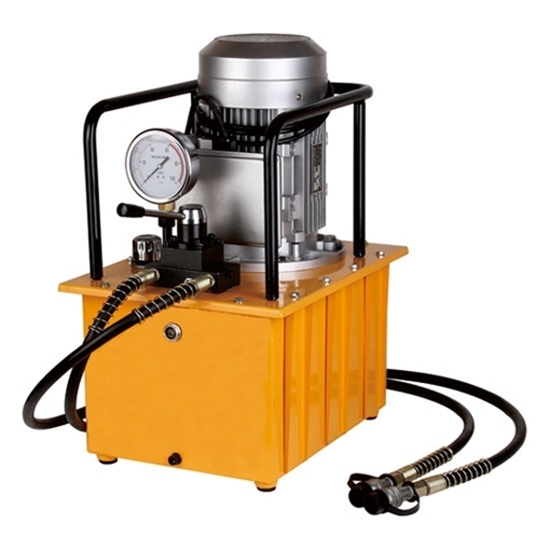

3 kW Hydraulic Electric Pump, 10000 psi

High quality hydraulic electric pump for sale, dump trailer hydraulic pump tank capacity 10 L, specially designed to withstand rupture and leakage. Durable materials of high strength and hardness are used to ensure its longer service life.

Specification

Model:  ATO-DB300-S2 / ATO-DB150-S2 / ATO-HHB-700AB

High Pressure: 10,000 psi (70 Mpa)

Low Pressure: 1450 psi (10 Mpa)

High Pressure Flow Rate: 2.8 L/min

Low Pressure Flow Rate: 14 L/min

Motor Power: 3 kW

Voltage: 110V / 380V

Frequency: 50Hz / 60Hz

Speed: 1400 rpm

Oil Storage Capacity: 30 L

Oil Type: ≤15# hydraulic oil

Weight: 72 kg

Features

• Oil absorption of the hydraulic electric pump is turbine vane-type, can reach the highest effective oil volume.
• Pressure safety valve overload protection. When it reaches 700 kg/cm², will automatically release pressure.
• Oil storage capacity can be customized, oil tube joint is matched with PT3/8" thread.

3 kW Hydraulic Electric Pump Structure

Tips: What should I do if the hydraulic pump overheats? ​​

There are two reasons for the excessive heating of the hydraulic pump. One is the heat generated by mechanical friction. Since the moving surfaces are in a state of dry friction or semi-dry friction, the moving parts rub against each other to generate heat. The second is heat generation by liquid friction. The high-pressure oil leaks into the low-pressure chamber through various gaps, and a large amount of hydraulic energy is lost to heat energy. Therefore, the correct selection of the clearance between the moving parts, the volume of the fuel tank and the cooler can prevent the overheating of the pump and the overheating of the oil. In addition, the blockage of the oil return filter will cause the oil return back pressure to be too high, which will also cause the oil temperature to be too high and the pump body to overheat.
