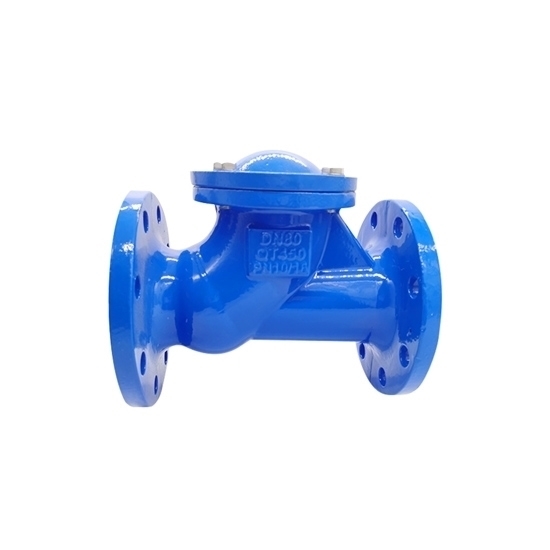

3" Flanged Ball Check Valve

$158.41

High quality 3" ball check valve is an nrv valve that can be installed horizontally or vertically. Flanged ball type check valve, DN80, ductile iron material, widely used in a variety of industrial applications including water and wastewater treatment, chemical processing and mining.

SKU: ATO-FBCV-003

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

3 inch (DN80) ball check valve is made of ductile iron designed for high flow rate and low pressure drop. Flanged check valve can be used in cold water, hot water, industrial and domestic sewage pipe networks.

Specifications

Model: ATO-HQ41X-16Q
Nominal Diameter: 3 inch/80mm
Nominal Pressure: 1.6 Mpa
Structure Length: 217mm
Body Material: Ductile Iron
Connection Form: Flange
Flange Standard: GB/T 9113
Weight: 6.7kg
Temperature: 0~80℃
Applicable Medium: Water and Weakly Corrosive Fluids

Installation Diagram

Applications

Ball check valves are commonly used in applications where low flow resistance and reliable backflow prevention are necessary, such as in water treatment plants, pumping systems, and process piping systems. They are often used in situations where the fluid needs to flow in only one direction, such as in fuel lines, chemical processing systems, and air compressors.

Ball check valve applications

Tips: Why can the ball check valve be used for sewage?

Ball check valves are commonly used in sewage and wastewater treatment applications because they offer several advantages that make them well-suited for these environments. Here are a few reasons why ball check valves can be used for sewage:

Non-clogging design: Ball check valves have a simple, non-clogging design that allows them to handle solids and debris commonly found in sewage and wastewater. The ball moves freely within the valve body, reducing the risk of clogs and blockages.
Tight shutoff: Ball check valves provide a tight shutoff, preventing backflow and ensuring that sewage flows in only one direction. This is important in wastewater treatment facilities to prevent contamination and maintain a safe environment.
Low maintenance: Ball check valves have a simple design with fewer moving parts than other types of check valves, which reduces the need for maintenance and lowers operating costs.
