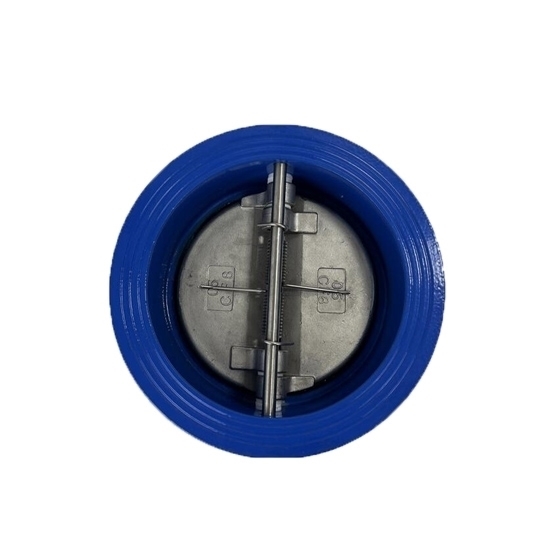

3" Dual Plate Wafer Check Valve

Good price 3" dual plate check valve, wafer type, ductile iron, PN 1.6MPa, and DN80. It responds quickly and reliably to changes in the flow direction, suitable for applications where reverse flow is frequent.

Specifications

• Model: ATO-DH77X-16Q
• Nominal Diameter: 3 inch (DN80)
• Nominal Pressure: PN1 .6MPa
• Working Temperature: -15℃~150℃
• Material: Ductile Iron
• Connection Method: Clip
• Suitable Mediums: Fresh Water, Foul Water, Air Steam, Food Medicines, Chemical Reagents, Various Oil and Acid Resemble.

Dimension

Applications

The dual plate check valve is a versatile valve used to regulate the flow of fluids through a pipeline. Its compact design and efficient operation make it suitable for a wide range of applications, including water and wastewater treatment, oil and gas pipelines, and industrial processing.

Tips: What can a dual plate wafer check valve do?

A dual plate wafer check valve is designed to allow the flow of fluid in one direction and prevent backflow in the opposite direction. It does this by using two valve discs that are positioned in parallel and hinged together, which open and close in response to the flow of fluid. When the fluid flows in the forward direction, the discs open and allow the fluid to pass through the valve. When the fluid flow reverses, the discs close and prevent backflow.
