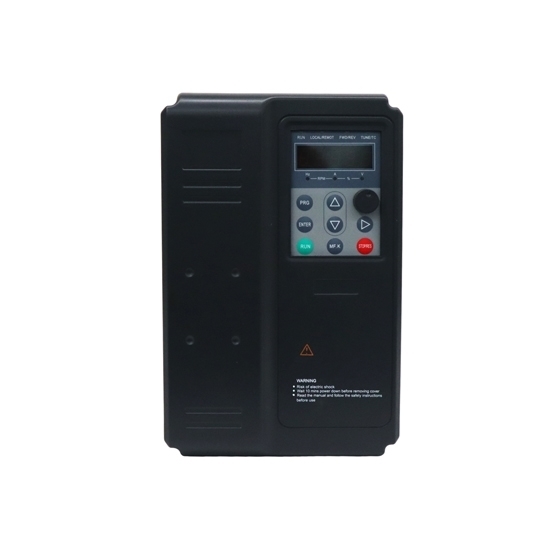

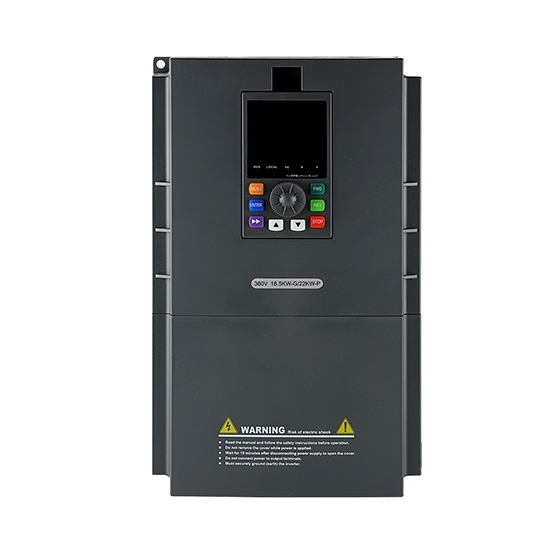

3 hp VFD, 1-Phase 220V to 3-Phase 380V VFD

5 out of 5 based on 3 reviews | Write a review

$446.92

1-phase 220V to 3-phase 380V VFD, 3 hp variable frequency drive for AC motor speed control at 50Hz/ 60Hz input frequency. 5.1 amps rated current, three phase 400V/ 415V AC output are customized.

Input Voltage (Single phase) *
Output Voltage (Three phase) *
Output Voltage (Three phase) *

SKU: GK3000-CS0022

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
User Manual
Relative Video

Affordable price 3 hp (2.2 kW) VFD, features 220v/ 230v /240v single phase input, 380v three phase output. This frequency drive inverter built-in RS485 communication interface, easy to wire and operate.

Specification:

Basics	Model	GK3000-CS0022
	Capacity	3 hp (2.2 kW)
	Shipping weight	5 kg
	Dimension	272172182 mm
	Installation size	256*155 mm
I/O Feature	Rated current	5.1 A
	Input voltage	1 phase 220~240V AC
	Input frequency	50Hz/ 60Hz
	Output voltage (Optional)	3 phase AC 380V/ 400V/ 415V/ 440V/ 460V (Note: 440V, 460V output voltage only for the 1-phase 240V input VFD)
	Output frequency	0Hz~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: ATO VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

5 tips for using 1-phase 220V to 3-phase 380V VFD

The power at the input of the variable frequency drive must be sufficient, otherwise the operation will jump under voltage fault can not be normal operation.
Single phase 220v to three phase 380v VFD belongs to the boost circuit step-up, for the load side of the maximum for the light-load site below 30hp (22kW), in terms of selection, the light-load motor use a large level of VFD, heavy-load site use a large two-level VFD.
1-phase to 3-phase VFD can only be used for motor class inductive load, can not be used as other load power supply.
The VFD is not suitable for the need to quickly start and stop the site, and the occasion of the bit energy load.
Part of the equipment motor can be used by changing the motor connection three-phase 220V electricity (such as motor star connection state is three-phase 380V motor, can be changed to delta connection can use three-phase 220V, the specific can consult the motor manufacturer), at this time can buy ATO single-phase 220V to three-phase 220V VFD to solve the problem of phase change.

PDF:

GK3000 Series VFD User Manual

Quick Setup Manual & Application

VFD Troubleshooting Guide

This video is about how to use buttons to run single-phase VFD of three-phase motors.

The video shows the parameter setting methods for the V/F control mode and vector control mode of single-phase to three-phase VFD.

This video provides insights into the wiring process for converting single-phase to three-phase VFD, specifically from 220V to 380V.

Existing reviews of 3 hp VFD, 1-Phase 220V to 3-Phase 380V VFD

I have some questions

At this time changing motors is not really a viable option. What setting could you recommend to allow a soft start ramp up over say 5s or so and then run the pump at full speed until required pressure is reached and then perform a soft shutdown from 100% down to say 50% over say 10s then sleep? That should eliminate the chances of running the motor at low speed for excessive periods of time.
Also, does it make any difference to use VI (voltage input) versus CI (current input) for the pressure signal. VI would make troubleshooting easier. What settings might we change for thus? With all the discrepancies between the manuals it is difficult to know which one to use. This is why I am asking you to suggest settings or tutorials. Is it advisable to use the dynamic self-learning with this configuration and if so what do I do after it reads -FUN-?

From: Luxia | Date: 10/12/2024

Was this review helpful? Yes No (0/0)

ATO Responded

1. Sorry, we do Not have any experience with single-phase motors for constant pressure water supply.
We suggest you set the sleep frequency (lower limit) P6.39 to a higher setting, set it to above 30Hz. Reference setup manual: https://www.ato.com/Content/doc/VFD-quick-setup-manual-and-application.pdf
2. Use VI (voltage input) and CI (current input) as pressure signals. They have the same effect. The difference is that one is an analog voltage input and the other is an analog current input.
3. Self-learning is only available when the three-phase asynchronous motor uses vector. If the single-phase motor uses self-learning, there will be problems.

VFD related information

Please, I bought an ATO VFD to reduce the speed of my electric motor to 1800rpm from 3450 rpm.
The manual that came with it says solar inverter. I tried to follow the steps in setting it up and I could get it to work.
Please, I would appreciate it if someone could create the time to take me through setting up this VFD / electric motor project.
Find attached photos showing the VFD and my electric motor.

From: Eldon | Date: 21/09/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Sorry to have bothered you.
This model of VFD is customized by solar inverter. It can achieve single-phase 120V input and three-phase 220V output.
About using, VFD red line and green line connection input 120V. U, V, W connect to the power line of your three-phase motor, parameter setting please note that FE-00=0, (PV function is turned off), you can refer to the attached document for a quick setting guide.

The best 3hp VFD

To run a 3hp 3ph motor of single phase do you need a 3 hp vfd or one that is overrated?

From: kipker | Date: 07/04/2021

Was this review helpful? Yes No (0/0)

ATO Responded

It based on motor rated current. Please send us your motor rated voltage and current. And what is your available supply voltage (VFD input)? So can recommend you the most suited drive.
